Universal modular frame designed for compact, economical system building. Build an optimal system for your environment from a full array of modules.
Features
- Available frames

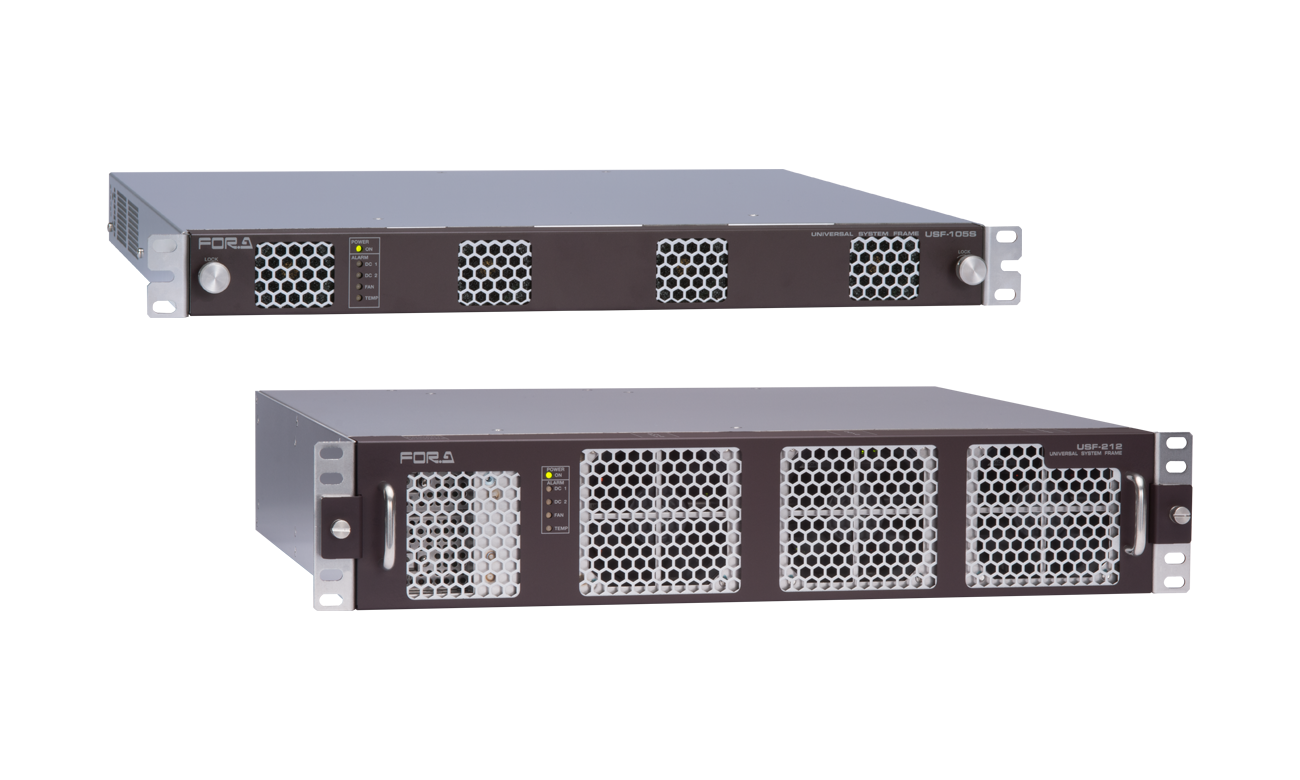

- USF-105AS: 1RU size. Holds up to 5 modules.
- USF-212BS: 2RU size. Holds up to 12 modules. - Hot-swappable, front-accessible power unit and module bays.
- New design combining SDI and Ethernet.
- 2 genlock inputs (Black burst (BB) or tri-level sync)(USF-212BS), 1 genlock input (USF-105AS).
- Built-in Gigabit Ethernet hub for GUI-based module configuration.
- Frame operational monitoring (cooling fan and power) and module life-and-death monitoring using SNMP.
Module list
Below is the maximum number of modules mounted on each frame. For details, please contact FOR-A office.
| Module/Frame | USF-212BS | USF-212AS*1 | USF-212S*1 | USF-105AS | USF-105S*1 |
|---|---|---|---|---|---|
| USF-10IPSDI12-FS IP Gateway |
3 | 3 | ー | ー | ー |
| USF-10IPSDI6-FS IP Gateway |
5 | 5 | ー | ー | ー |
| USF-10IP-TRC-FS IP Gateway |
3 | ー | ー | ー | ー |
| USF-10IP-TRC IP Gateway |
5 | ー | ー | ー | ー |
| USF-106TICO-12G 4K/TICO Encoder/Decoder |
6 | 6 | ー | 2 | ー |
| USF-1043FS 3G/HD/SD-SDI Frame Synchronizer |
12 | 12 | 12 | 5 | 5 |
| USF-105FS-12G 12G-SDI Frame Synchronizer |
12 | 12 | ー | 3 | ー |
| USF-106UDC-12G 12G-SDI 4K/HD Up/Down Converter |
6 | 6 | ー | 2 | ー |
| USF-106DC-12G 12G-SDI 4K to HD Down Converter |
6 | 6 | ー | 2 | ー |
| USF-111DDA-12G 12G-SDI 11-output Digital Video Distributor |
6 | 6 | ー | 2 | ー |
| USF-105DDA-12G 12G-SDI 5-output digital video distributor |
12 | 12 | ー | 5 | ー |
| USF-1053DDA 3G/HD/SD-SDI Digital Video Distribution Amplifier |
12 | 12 | 12 | 5 | 5 |
| USF-1043VM 3G/HD/SD-SDI Digital Video Distribution Amplifier |
12 | 12 | 12 | 5 | 5 |
| USF-1100VEA Analog Video Distribution Amplifier |
6 | 6 | 6 | 2 | 2 |
| USF-1040VEA Analog Video Distribution Amplifier |
12 | 12 | 12 | 5 | 5 |
| USF-105DADA Digital Audio Distribution Amplifier |
12 | 12 | 12 | 5 | 5 |
| USF-108ADA Analog Audio Distribution Amplifier |
12 | 12 | 12 | 5 | 5 |
| USF-204ADAC Digital-to-Analog Audio Converter |
12 | 12 | 12 | 5 | 5 |
| USF-402AADC Digital-to-Analog Audio Converter |
12 | 12 | 12 | 5 | 5 |
| USF-101MDX4-12G 12G-SDI 4K Audio Multiplexer/Demultiplexer |
6 | 6 | ー | 2 | ー |
| USF-101MDX8-12G 12G-SDI 4K Audio Multiplexer/Demultiplexer |
6 | 6 | ー | 2 | ー |
| USF-1013MUX 3G/HD/SD-SDI Digital Audio Multiplexer/td> |
12 | 12 | 12 | 5 | 5 |
| USF-1013DEMUX 3G/HD/SD-SDI Digital Audio Demultiplexer |
12 | 12 | 12 | 5 | 5 |
| USF-80SDICS*2 SDI Changeover Switcher |
12 | 12 | 12 | 5 | 5 |
*1 End of sale. Choose from USF-212BS or USF-105AS for a new purchase of the frames.
*2 USF Web GUI can't confirm mounted state and version of USF-80SDICS. Dedicated GUI is required to confirm state and monitor.
