HVS-2000DETAILS

HVS-2000

Specifications

Video Formats 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/59.94 (NTSC), 625/50 (PAL)
Video Formats (optional) 1080/59.94p, 1080/50p (Level-A)
Video Inputs HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75Ω, BNC x24 (FSs on all inputs)
Video Inputs (optional)
HVS-100DI-A HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75Ω, BNC x4 (FSs on all inputs and resize engines on 2 inputs)
HVS-100AI HD analog component, SD analog component, Analog composite
HVS-100PCI HDMI*1: XGA to WUXGA/HDTV (1080p, 1080i, 1080PsF), XGA to WXGA/HDTV (720p), VGA to XGA/SDTV (SD)
RGB: XGA to WUXGA/HDTV (1080p, 1080i, 1080PsF), XGA to WXGA/HDTV (720p), VGA to XGA/SDTV (SD)
HVS-2000EXP3G 3G-SDI: 3.0 Gbps
Number of Video Inputs Standard: SDI x24 / Max.: SDI x48 (with 6 HVS-100DI-A cards installed)
Video Outputs HD-SDI: 1.5 Gbps, SD-SDI: 270 Mbps, 75Ω, BNC x16 (4 M/E outputs, AUX1 to 12), HDMI*1 x2
Video Outputs (optional)
HVS-100DO HD-SDI: 1.5 Gbps, SD-SDI: 270 Mbps, 75Ω, BNC x4 (Downconverters on 2 outputs)
HVS-100AO HD analog component, SD analog component, Analog composite
HVS-100PCO HDMI*1: SXGA to WUXGA/HDTV (1080p, 1080i, 1080PsF), SXGA to WXGA (720p), SVGA/SDTV (SD)
RGB: SXGA to WUXGA/HDTV (1080p, 1080i, 1080PsF), SXGA to WXGA (720p), SVGA(SD)
HVS-2000EXP3G 3G-SDI: 3.0 Gbps
Number of Video Outputs Standard: HD-SDI x16, HDMI x2 / Max.: SDI x20, HDMI x2 (with 2 optional output cards installed)
Signal Processing 4: 2: 2: 4, digital component
Quantization HD/SD-SDI: 10-bit
Effect WIPE: 100 patterns (modification capability included)
2.5D DVE: 30 patterns or more DVE WIPEs (modification capability included)
Transition Available controller: Fader controller, AUTO or CUT button
Type: MIX or WIPE (DVE included)
Still/clip store 4 channels (standard) store up to 900 frames at 1080 resolution (approx. 30 seconds at 1080i) / 6 channels (maximum) store up to 1800 frames at 1080 (around 1 minute at 1080i)
Frame memories in FS provided for all inputs are used for storage
Keyer/FLEXaKEY™ 12 channels (4 keyers for each M/E, 4 FLEXaKEY)
Bus keyer, Luminance keyer, Full keyer, Chroma keyer, Edge effect
FLEXaKEY: can be assigned to AUX outputs
Multi-viewer Standard: 2 channels / Max.: 4 channels (64 windows),
2/4/5/7/9/10/11/13/16-way split views with title, tally, audio level meter, safety area, and border display
Proc. Amp. Equipped with all inputs/outputs
Color correction Standard: 4 channels (2 channels per each M/E) / Max.: 12 channels (optional)
Correction mode: Balance, Differential, Sepia Clip mode: YPbPr, RGB
Event Memory 100 events (cross-fade transition available when loading events)
Macro Function 100 macros, No. 00-89: Max. 30 actions, No.90-99: Max. 300 actions
Genlock Input BB: NTSC: 0.429 Vp-p/PAL: 0.45 Vp-p or Tri-level sync: 0.6 Vp-p, 75Ω,
BNC x1, loop-through (to be terminated with 75Ω terminator, if unused)
System Phase Adjust Horizontal: -1/2 H to +1/2 H
Genlock Output BB: NTSC: 0.429 Vp-p/PAL: 0.45 Vp-p or Tri-level sync: 0.6 Vp-p, 75Ω, BNC x1
I/O Delay Minimum delay: HD: 1H, SD: 1.7H
1 to 2 frames +minimum delay (when FS or re-size engine used)
2 to 3 frames +minimum delay (when FS or re-size engine plus DVE used)
3 to 4 frames +minimum delay (when FS or re-size engine plus output resize engine plus DVE used)
External memory port HVS-2240/3320OU: USB2.0 x6
Interface LAN1 (MAIN) / LAN2 (SUB): 100BASA-TX/1000BASE-T, RJ-45 x 2, for OU and other external control unit connection
GPI IN: 15-pin D-sub (female) for 10 inputs
GPI IN/TALLY OUT: 25-pin D-sub (female) for 20 outputs
RS-422*2: 9-pin D-sub (female) x6 (for tally unit connection)
ARCNET*3: 75Ω, BNC x1, loop-through (to be terminated with 75Ω terminator, if unused.)
HVS-2240/3320OU: RJ-45 x7, GPI IN/TALLY OUT 25-pin D-sub (female) x1 for 20 inputs/20 outputs
Temperature / Humidity 5°C to 40°C / 30% to 90% (no condensation)
Power / Consumption HVS-2000: 100 VAC to 240 V AC ±10%, 50/60 Hz / 496 W (at 100 V to 120 V), 476 W (at 220 V to 240 V)
HVS-2240OU: 100 VAC to 240 V AC ±10%, 50/60 Hz / 46 W (at 100 V to 240 V), 46 W (at 220 V to 240 V)
HVS-3320OU: 100 V AC to 240 V AC±10%, 50/60 Hz / 67 W (at 100 V to 120 V), 63 W (at 220 V to 240 V)
Dimensions / Weight HVS-2000: 430 (W) x 177 (H) x 500 (D) mm / 18 kg (incl. optional cards: 30 kg)
HVS-2240OU: 1060 (W) x 155 (H) x 354 (D) mm / 12 kg
HVS-3320OU: 1196 (W) x 155 (H) x 494 (D) mm / 22 kg (incl. redundant power supply: 23 kg)
Consumables (approx. time for replacement after an uninterrupted service at room temperature) HVS-2000: Power unit (5 years), Cooling fan (5 years), 2.5” HDD (3 years)
HVS-2240OU: Power unit (5 years), SBC battery (3 years)
HVS-3320OU: Power unit (5 years), SBC battery (3 years)
Accessories Operation manual (CD-ROM), AC cords, Rack mount brackets, Control cables
Options
  • HVS-100DI-A: HD/SD-SDI Input Expansion Card
  • HVS-100AI: Analog Video Input Expansion Card
  • HVS-100PCI: PC (HDMI/VGA) Input Expansion Card
  • HVS-100DO: HD/SD-SDI Output Expansion Card
  • HVS-100AO: Analog Video Output Expansion Card
  • HVS-100PCO: PC (HDMI/VGA) Output Expansion Card
  • HVS-2000PSM: Redundant Power Supply Unit for MU
  • HVS-2000PSO: Redundant Power Supply Unit for OU
  • HVS-2000EXP3G: 3 Gbps Expansion Software
  • HVS-2000MV: MultiViewer 2ch Expansion Card
  • HVS-2000ED: Editor Interface Software
  • HVS-2000GUI: Graphical User Interface Software
  • HVS-2000-2SI: 4K-2SI Compatibility Software
  • HVS-2000EX: Color Corrector / Advanced Chroma Keyer*4 Expansion Card
  • HVS-2000DVE: 3D DVE 4ch Expansion Card
  • HVS-2000DVE-EX: 3D DVE 4K Expansion set
  • HVS-2000ME: 3M/E Expansion Card
  • HVS-2000RAM: VRAM Expansion RAM
  • *1 HDCP-incompatible
  • *2 HVS-2000MV required
  • *3 HVS-2000RAM required
  • *4 For the tally unit connection or EDITOR port (BVS/DVS or GVG-200 protocols)
  • *5 For optional control panel connection
  • *6 Advanced CK is supported only HD

MELite, FLEXaKEY, P-MEM, ONStage, Midas Touch, MiniMenu, and GearLink are trademarks of FOR-A Company Limited.

The above specification is as of November, 2017.

Product Details

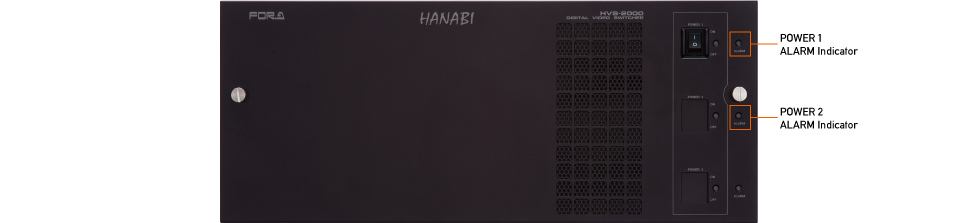

HVS-2000 Main Unit Front View

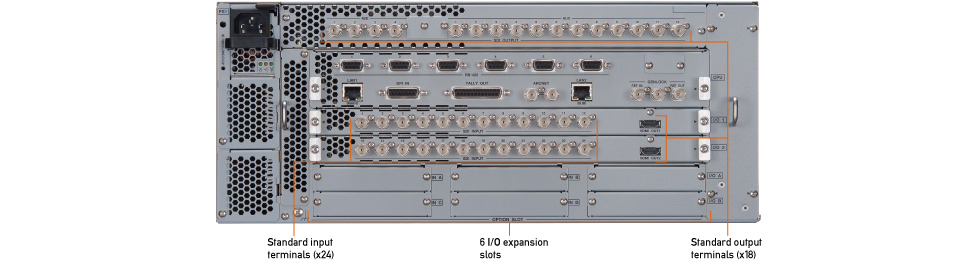

HVS-2000 Main Unit Rear View

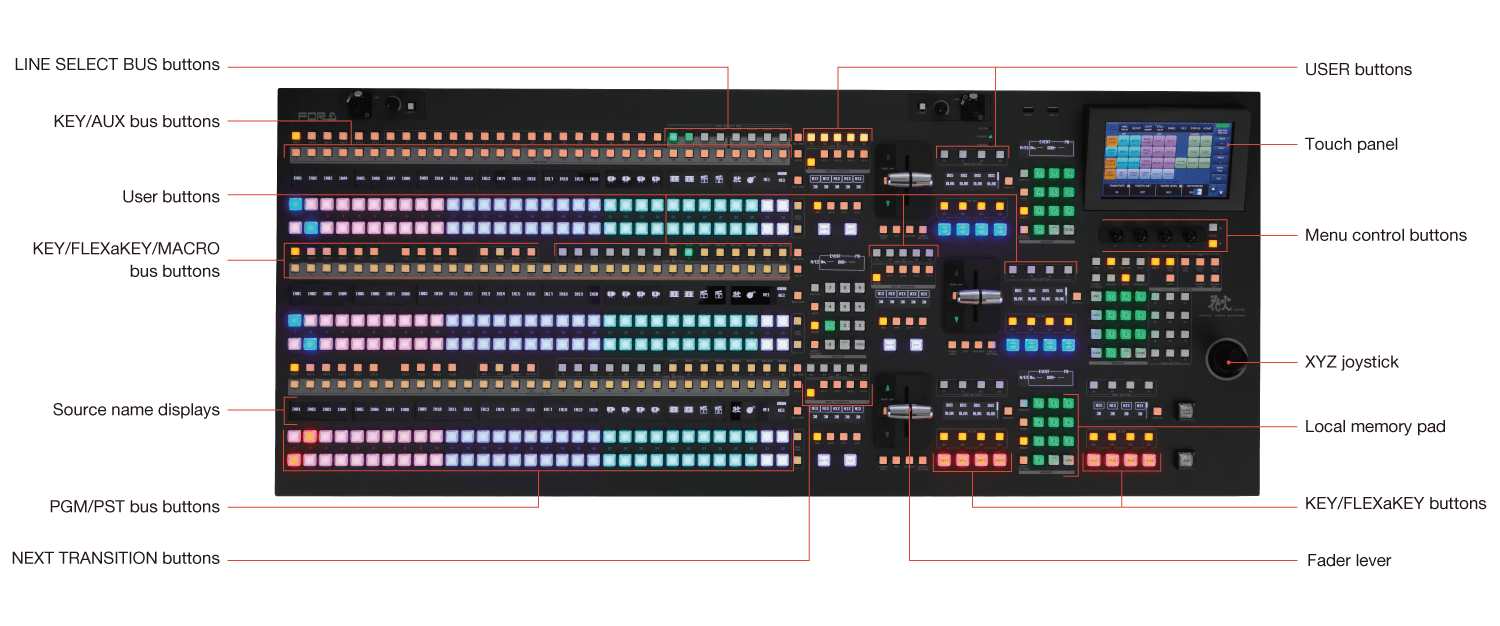

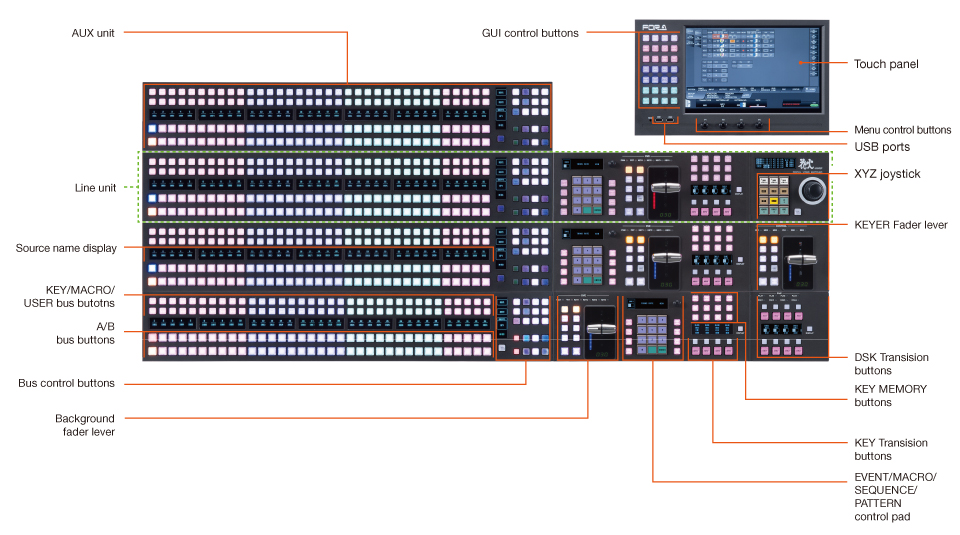

HVS-3320OU Front View

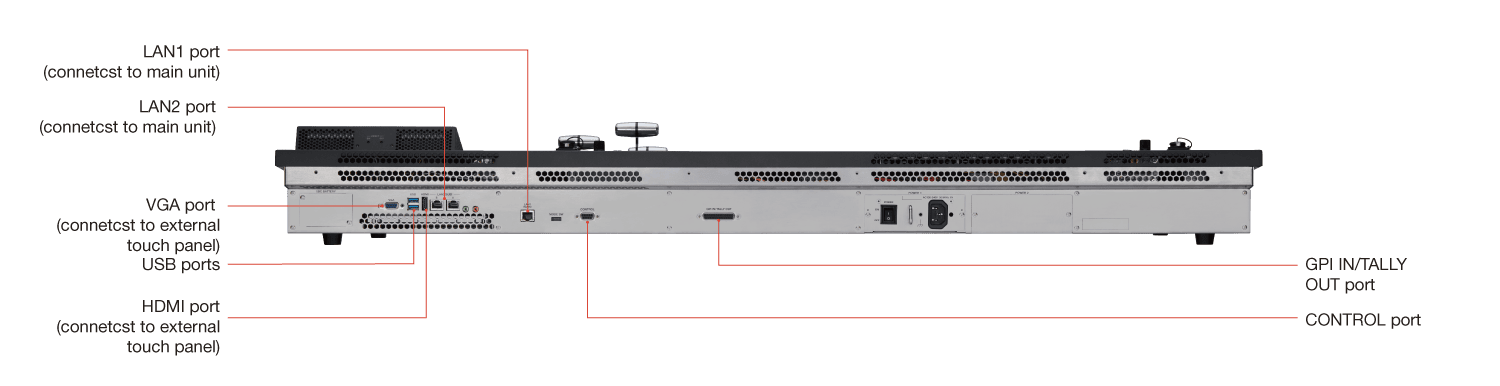

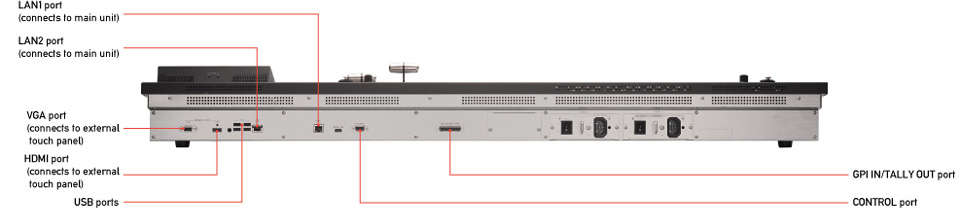

HVS-3320OU Rear View

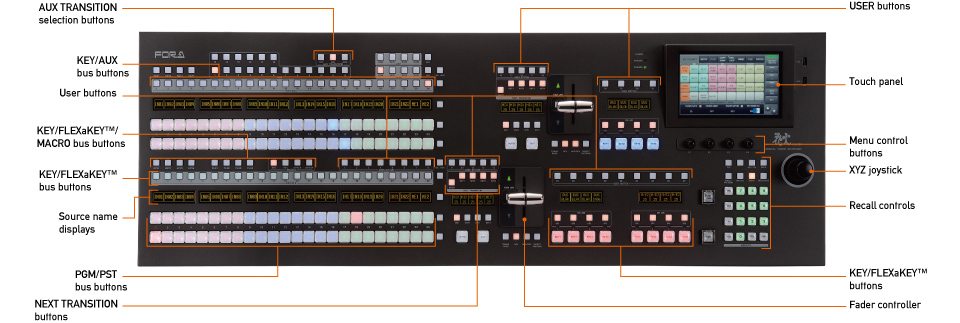

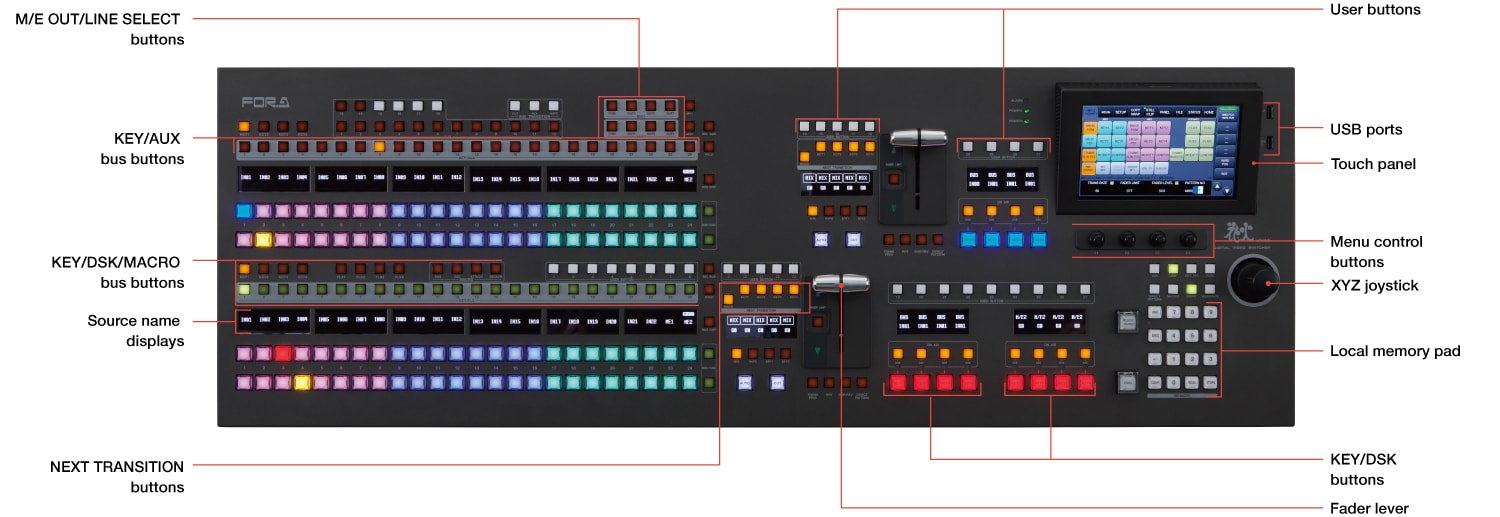

HVS-2240OU Front View

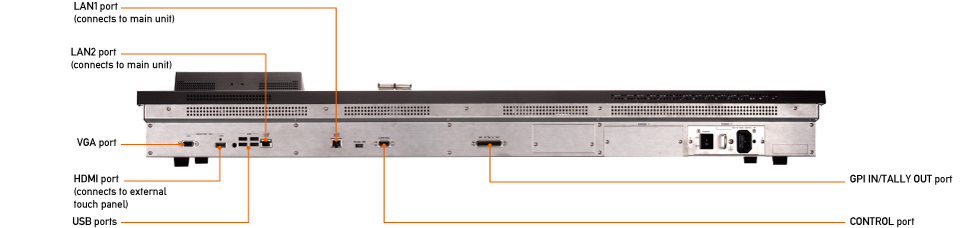

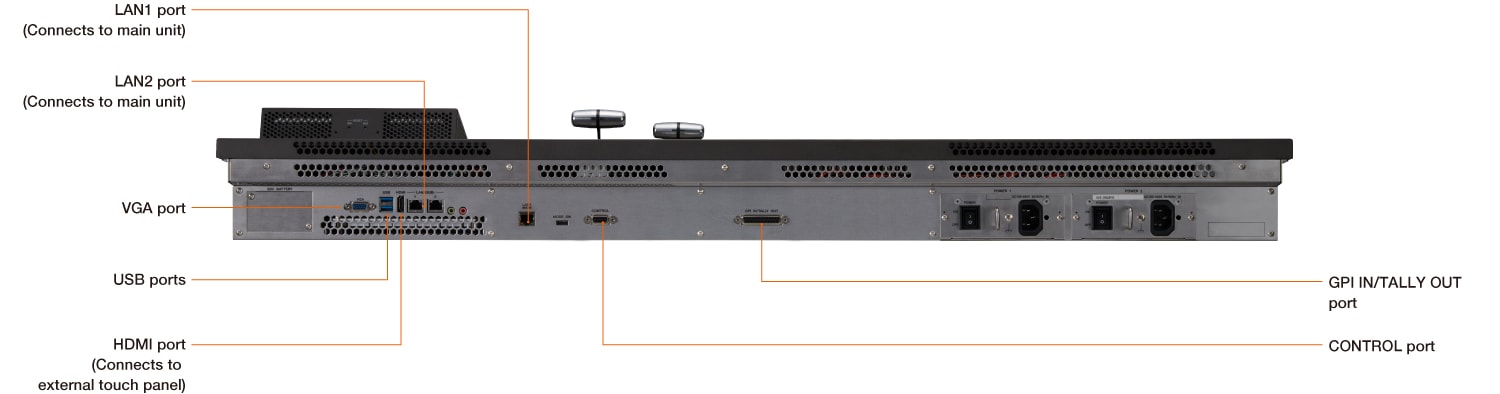

HVS-2240OU Rear View

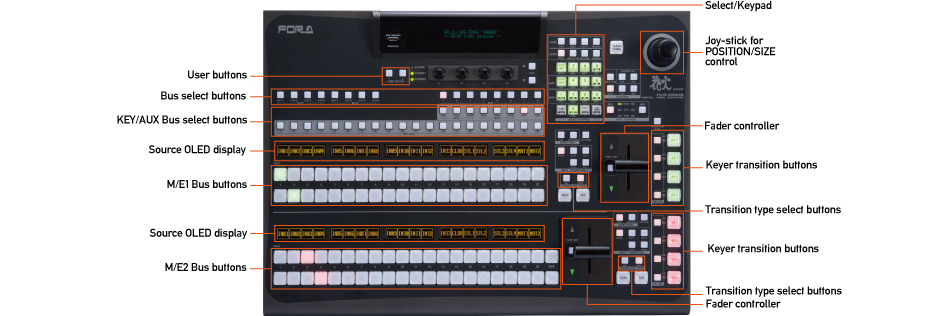

HVS-392WOU Front View: 2M/E 28 buttons

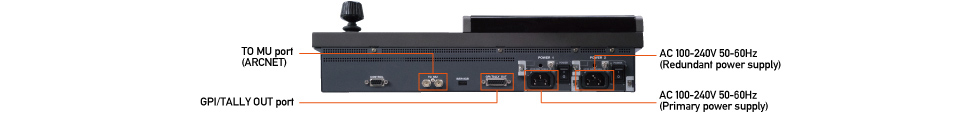

HVS-392WOU Rear View: 2M/E 28 buttons

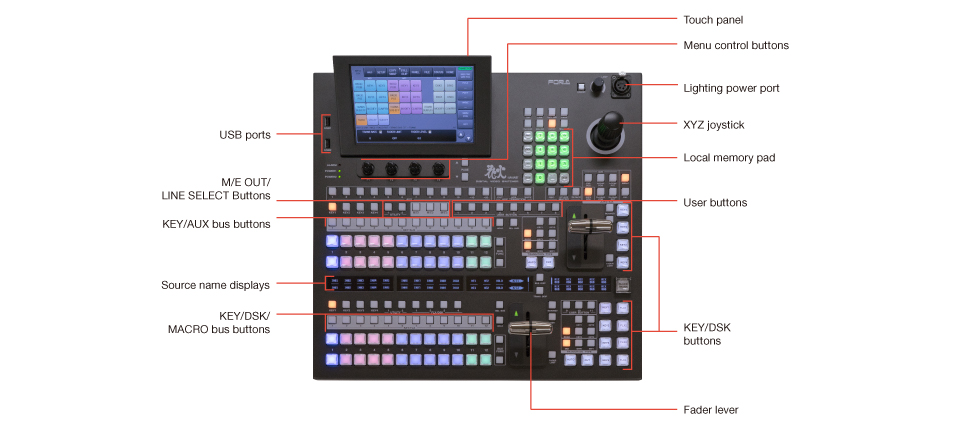

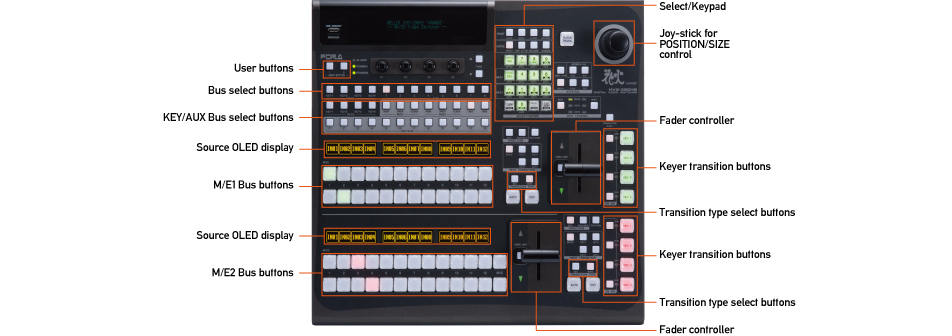

HVS-392OU Front View: 2M/E 20 buttons

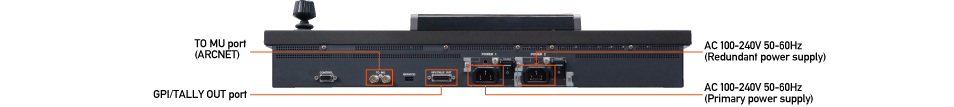

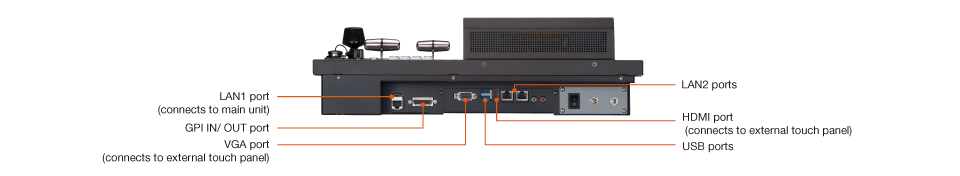

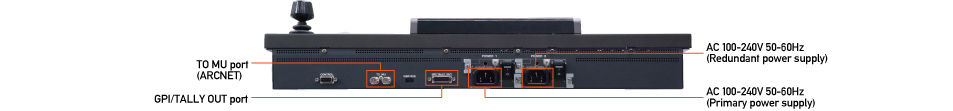

HVS-392OU Rear View: 2M/E 20 buttons
