BTO Products (Please contact FOR-A office)

4K/HD Video Switcher

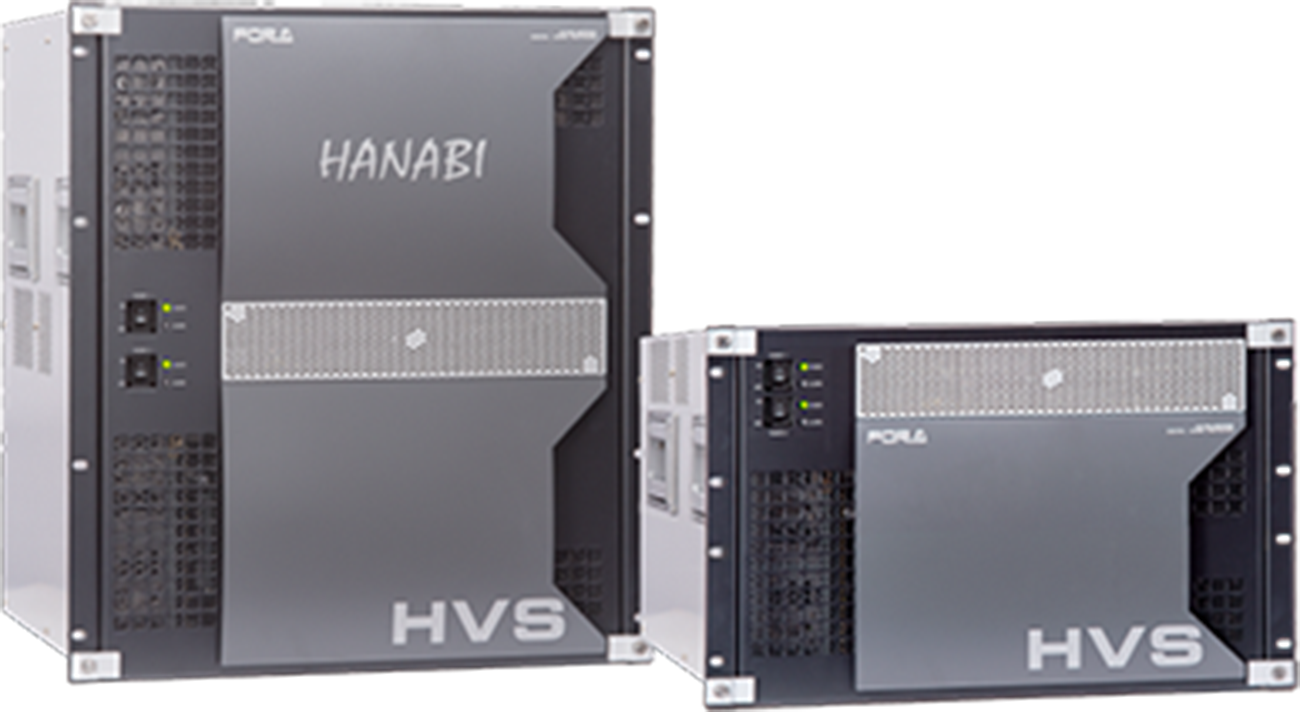

HVS-6000/6000M (Preliminary)

Offering 4K(UHD) and 12G-SDI support, maximum 80 input/32 output or 64 input/48 output, the HVS-6000 is ideal for upgrading from HD to 4K

Designed for use in 4K(UHD) systems, the HVS-6000 brings 12G-SDI compatibility to all inputs and outputs. Users can operate the unit in the same manner as current HD systems. In an era of video over IP, the HVS-6000 anticipates these needs and enables IP interfaces to be mounted on all I/O slots*.
*Planned for future support

Main Features

  • Up to 80 in/32 out or 64 in/48 out, all inputs and outputs support 12G-SDI single link
  • IP input/output support planned for future use
  • 3 M/Es with split M/E, 4 keyers per M/E
  • Frame synchronization and still store available for inputs
  • Gearbox function available for I/O
  • Color corrector for input and output video, mutual HDR and SDR conversion, and up/down function

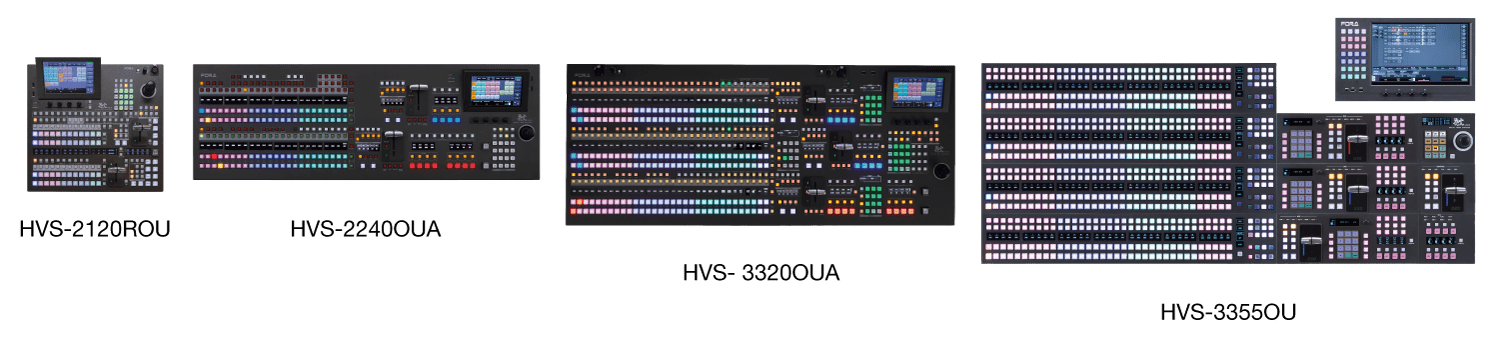

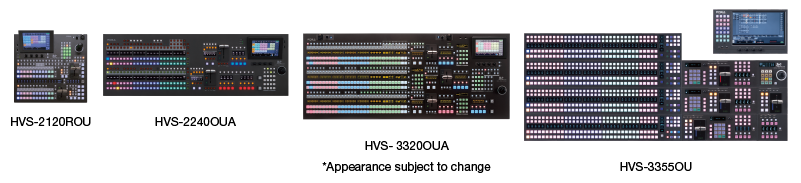

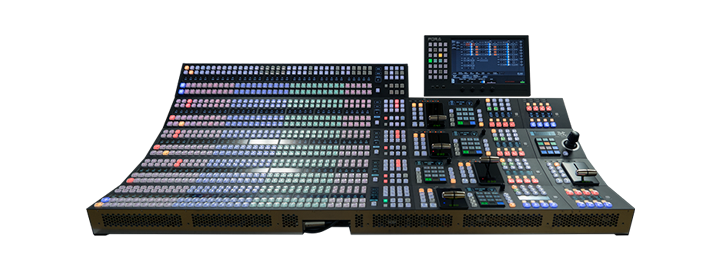

  • Control panels: HVS-2120ROU, HVS-2240OU, HVS-3320OU and HVS-3355OU (custom-ordered)

2 models available


  • 2 M/E standard, expandable 3 M/E
  • Up to 80 in/32 out or 64 in/48 out in 12G-SDI
  • 12 RU


  • 2 M/E standard
  • Up to 32 in/24 out in 12G-SDI
  • 7 RU

*HVS-6000M is planned for future release.
