Experience exceptional quality frame rate and format conversion on premise and under your control.

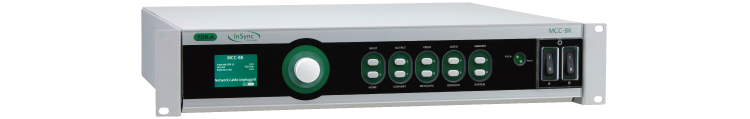

MCC-8K offers the ultimate in standards conversion, delivering InSync’s world-leading image preservation when converting media between formats, frame rates and scan modes.
Convert to and from 8K & 4K Formats
World Leading Motion Compensation
Expert-grade hardware
Simple interface and setup
Optimal for 8K conversion
MCC-8K provides any organization with revolutionary live 8K frame rate conversion. Integrate the power of world-leading InSync motion compensated conversion directly into your workflow and control via a simple and efficient interface.
MCC-8K is ideal for live frame rate conversion applications, where cutting edge 8K content sourced at a chosen production frame rate needs to be converted to other frame rates for international contribution and distribution.
Perfect for specialized, expert grade conversions for international 8K distribution, the MCC-8K produces smooth motion and crystal clear 8K video content. InSync makes this possible through twenty years of refinement and progress on their patented motion compensated frame rate conversion algorithm
Features
- Live 8K frame rate conversion.
- Conversion from 50 to 59.94Hz.
- The highest end-to-end conversion quality.
- Consistent, clean output frames even in areas of fast motion or repeating detail.
- Cutting edge and specialized conversion.
- Automatic input and PID detection with pass-through.
- Timecode handling.
Specifications
- Video format
– 8K (4320p): 50/59.94p. - Video input (SDI)
– 8K Quad Link 12G-SDI: BNC x4. - Video output (SDI)
– 8K Quad Link 12G-SDI: BNC x 4.
– 4K Single Link Down Convert for monitoring purposes. - Automatic input detection
– SMPTE ST 2082-12 (2SI).
– BT.2020 colorimetry. - Audio
Passes 32 channels of PCM embedded audio.
– Audio channel remapping.
– Audio tracking delay.
– Audio gain control.
– Audio tone and silence insertion. - Genlock input
– BB: Bi-level or Tri-level sync: 0.3 Vp-p, 75Ω, BNC x 2, loop-through
(to be terminated with 75Ω terminator, if unused).
– Lock to external reference with adjustable H/V offset. - Control
– Front panel with short-cut keys.
– Video confidence monitor.
– Built-in Web control. - Interface
– Ethernet: 10/100/1000 BASE-TX RJ-45 x 1.
