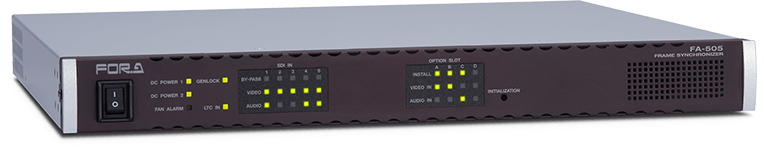

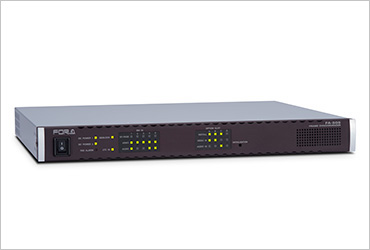

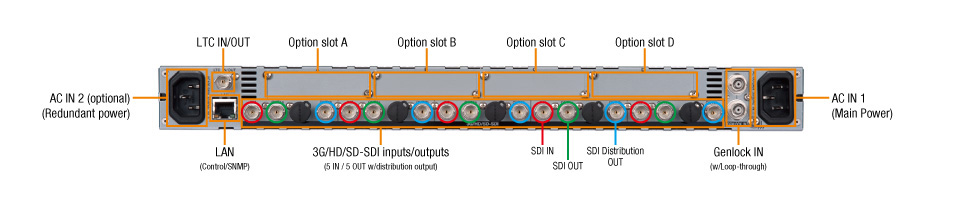

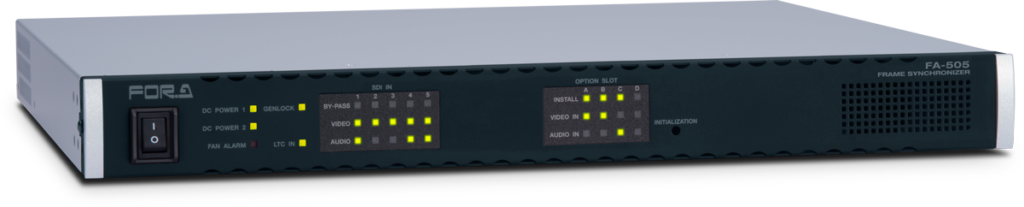

5IN / 5OUT with Up/Down/Cross Converter
All-Round Frame Synchronizer
Frame synchronizer equipped with an array of essential functions used in video production and that allow multi-channel routing (5-input/5-output video). Supports 3G-SDI and HD/SD-SDI input/output as standard and includes all typical FS and CC (standard) features. The unit provides up/down/cross-conversion on each input as standard and allows 1080i to 720p, or 720p to 1080i conversion. Highly versatile audio signal processing capability with delay adjustment and remapping functions plus a sampling rate converter. Combining these varied options allows a single unit to provide optimal functionality for all video production scenes, including those used in transmission, outside broadcasting, news reporting, production, editing and distribution.
Upgrades with an eye toward next-generation production (environments) have been implemented.
HDR (High Dynamic Renge)*, WCG (Wide Color Gamut), etc., next generation production-capable upgrades are now available.

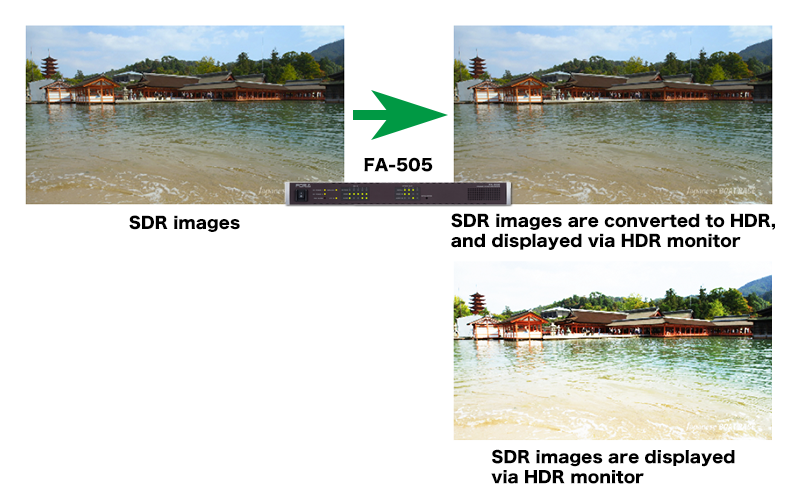

Registration of Log Gamma curves for HDR (High Dynamic Range)* processing

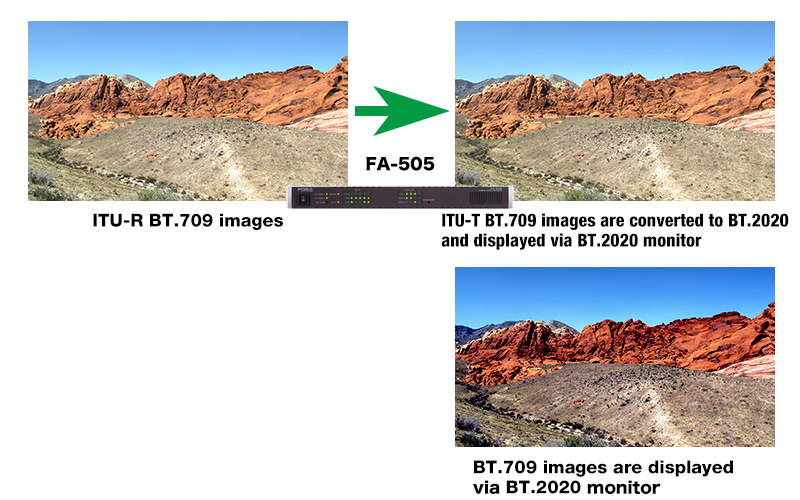

Conforms to ITU-R BT.2020 WCG
- 4K 2SI signal support
- Frame rate conversion function
- Low frame rate (23.98p, 30p) 4K camera signal support
- Not compatible with OOTF for Hybrid Log-Gamma (HLG) as specified in BT.2100. Thus, in conversion between HLG and other gamma curves (SDR or SMPTE ST 2084), scene-referred conversion is available but not display-referred conversion.
Details on FA-505 upgrade-based enhancements are summarized here.
For further details on upgrading your unit, contact your FOR-A representative.
Reasons to Buy

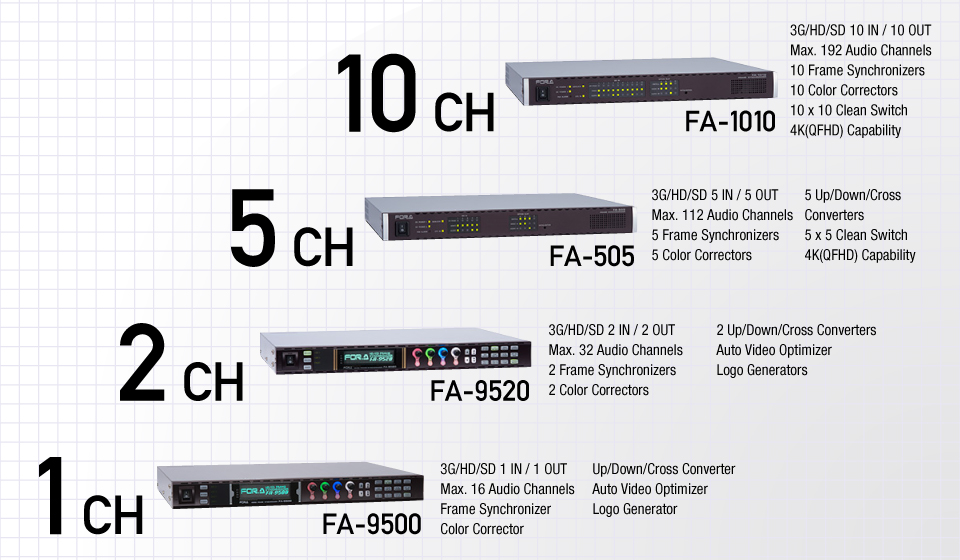

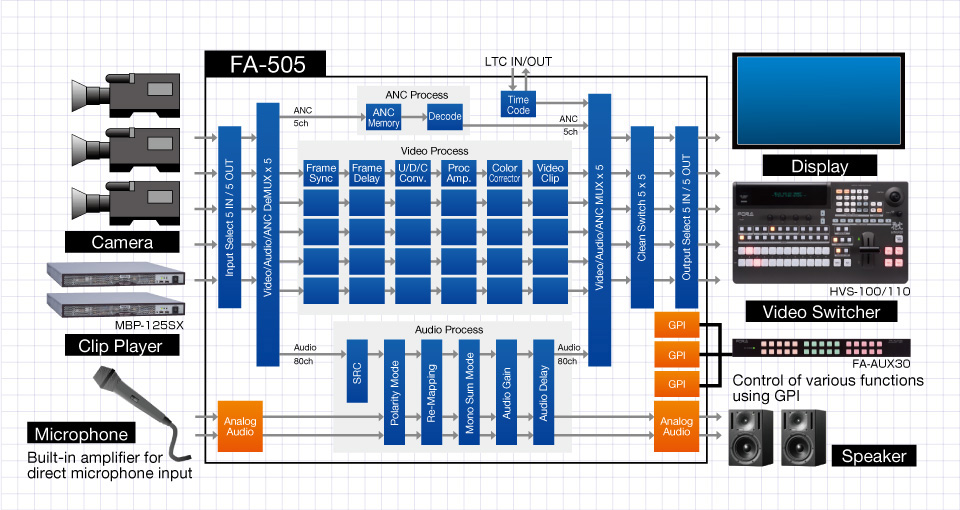

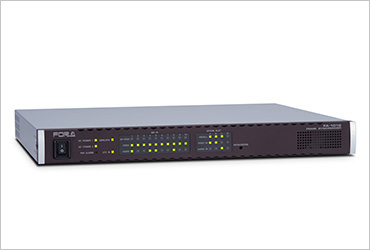

1.Five processors in a single unit

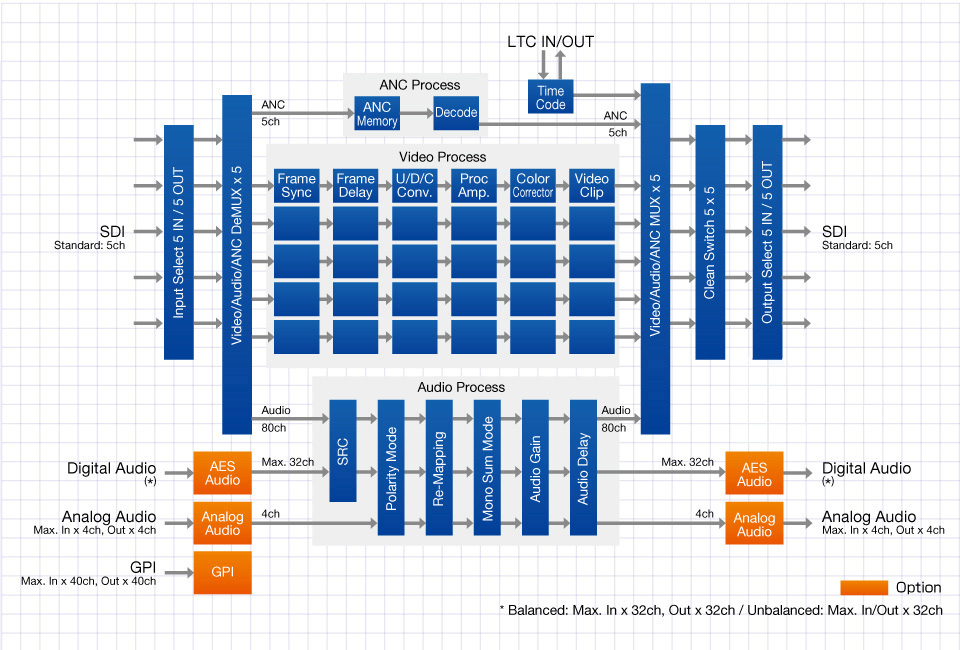

A sister model of the 10-input/10-output FA-1010, which has 10-channel processing, the FA-505, with 5 inputs, 5 outputs and 5-channel processing, also comes equipped with features not found in the FA-1010, including an up/down/cross/aspect converter function. Like the FA-1010, the FA-505 is not simply 5 processors enclosed in a single housing, but 5 interconnected internal circuits. It implements all the various processors and clean switch functions required to build a system, and enables multi-channel signal processing on each channel with no cable connections. In addition, as ancillary and audio signal data are handled separately from video signals, concerns about ancillary data such as subtitles and time codes being erased can be allayed.
2.Powerful audio processing

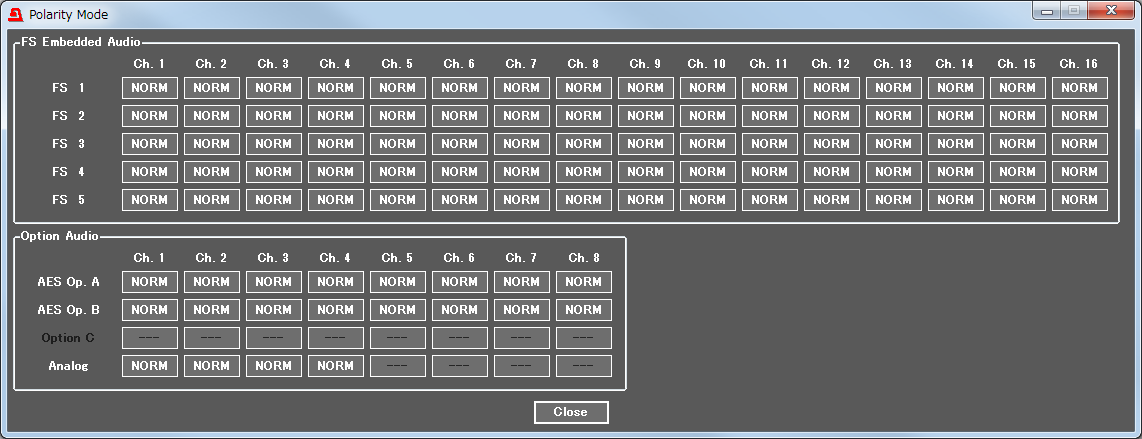

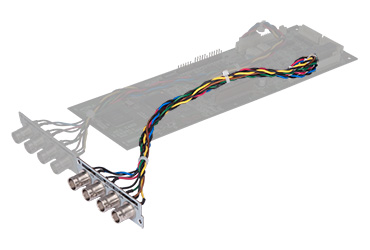

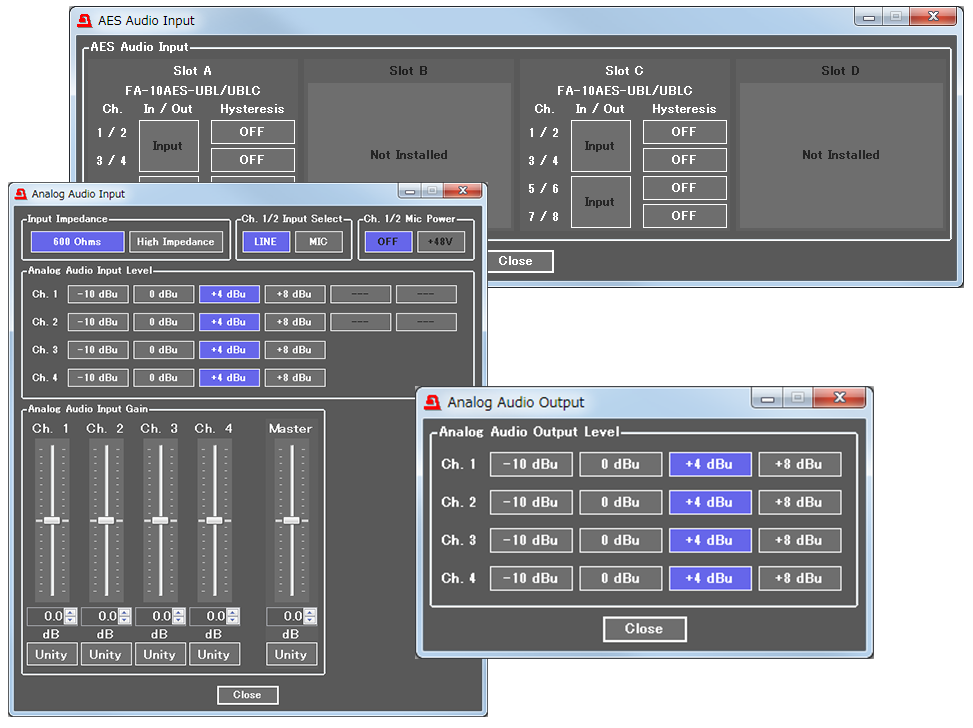

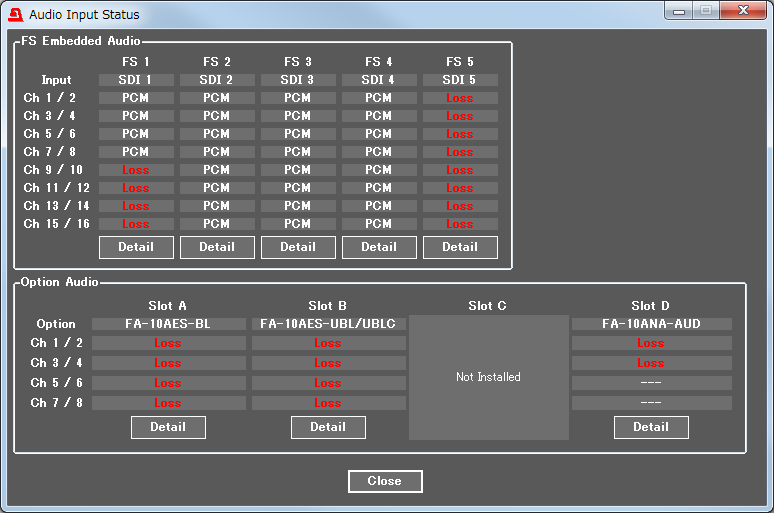

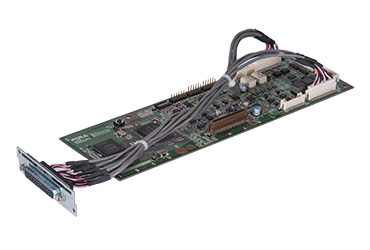

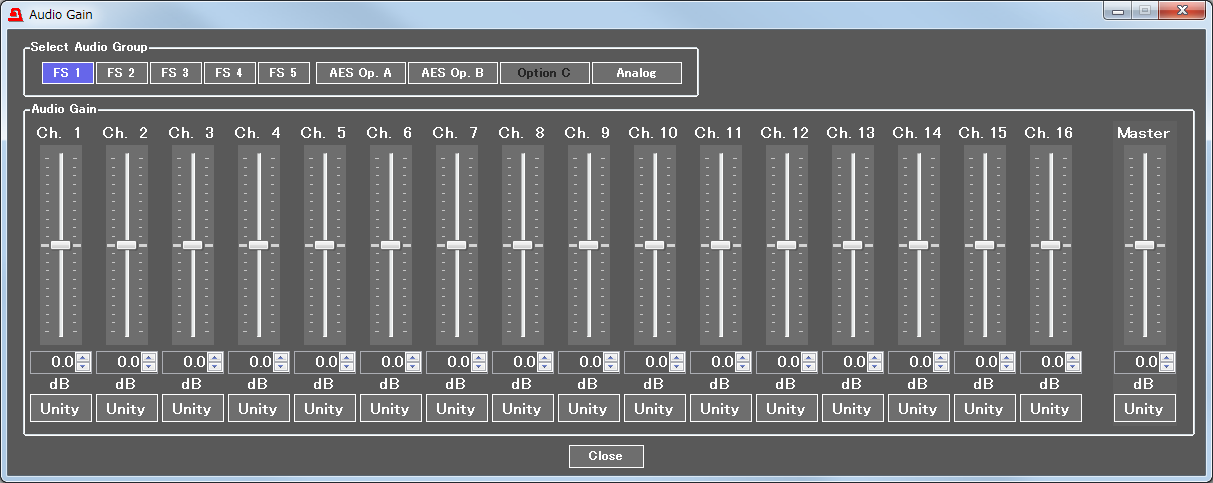

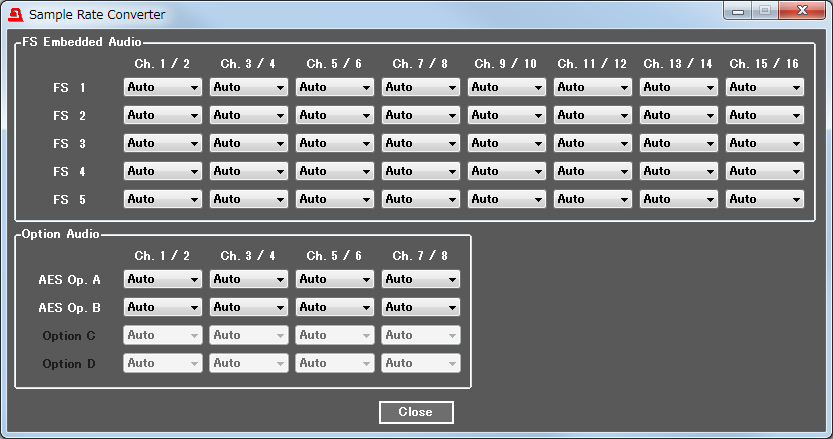

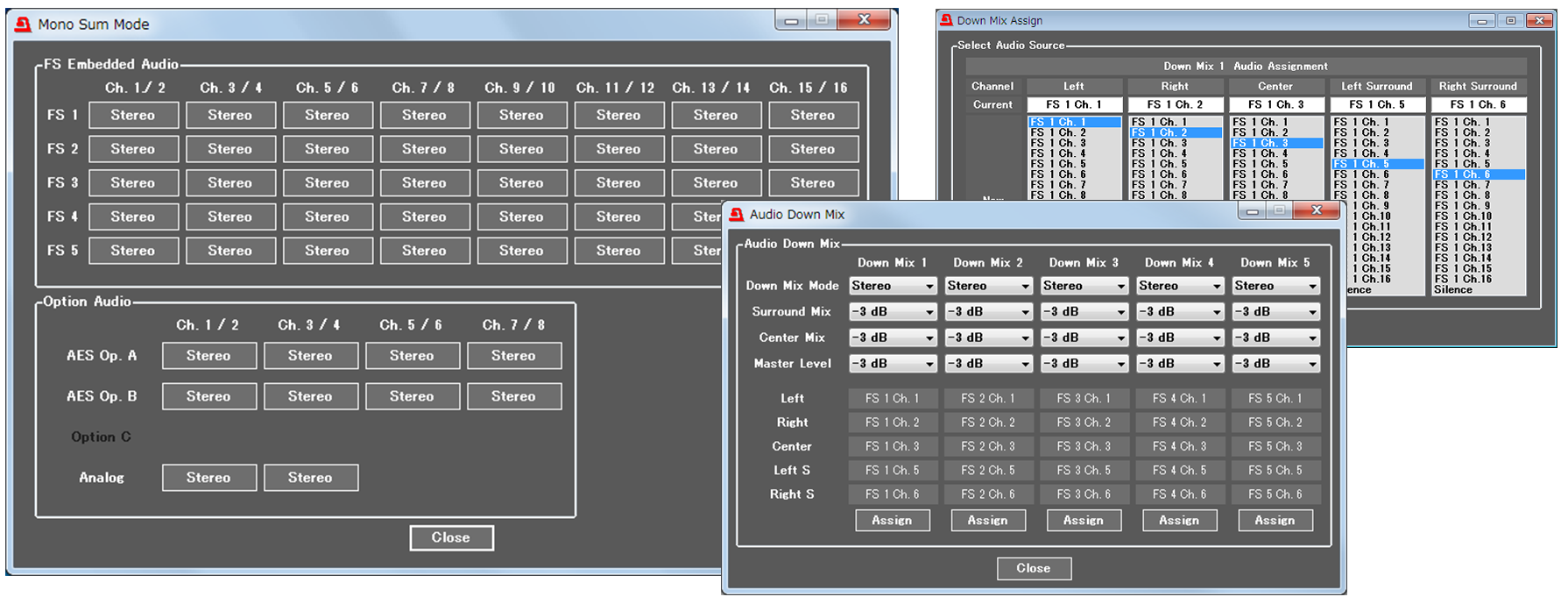

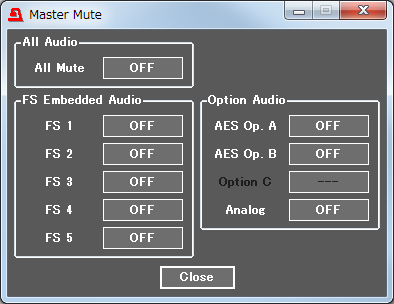

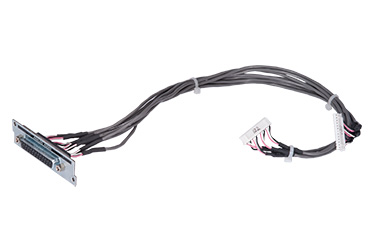

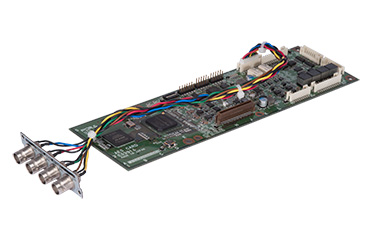

With 16 channels of 3G/HD (synchronous/asynchronous) and SD-SDI*1 (synchronous) embedded audio on each input supporting up to 80 channels on all 5 inputs, a versatile array of signal processing is possible, including standard SDI embedding and de-embedding, and if an optional expansion card is installed, A/D and D/A conversion. The analog audio input option is equipped with a microphone head amplifier and phantom power, enabling direct condenser microphone input with no need for impedance conversion. The unit also includes sampling rate converters as well as various other processes such as level adjustment, delay adjustment, down-mixing*2, remapping, and polarity conversion.
- 12-channel audio SD-SDI output
- Down-mixing supports only SDI-embedded audio signals
3.Space-saving form factor

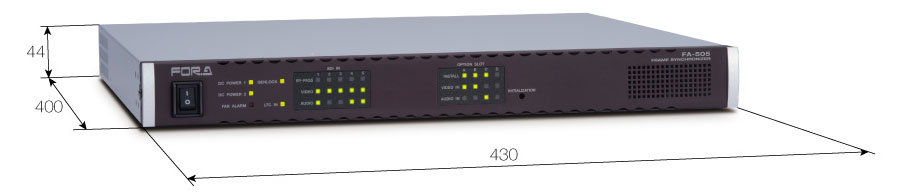

With the capability of 5 processors fit into a 1U size, the FA-505 provides a smaller equipment footprint. In addition, it is perfect for systems that handle a large number of inputs and outputs, such as network operation centers, and systems where equipment space is limited, such as mobile video production trucks.

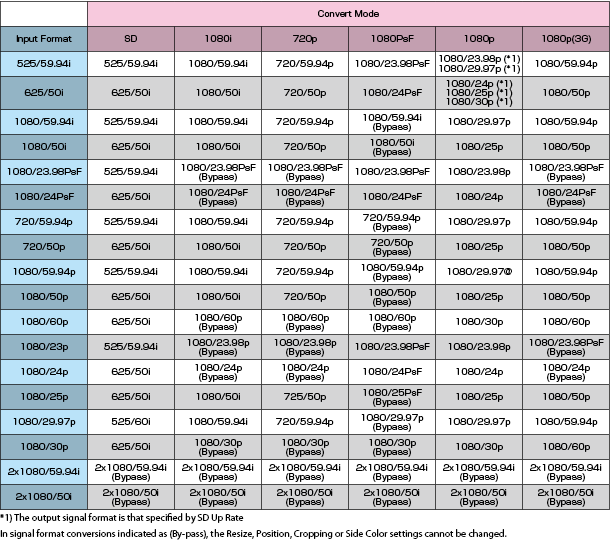

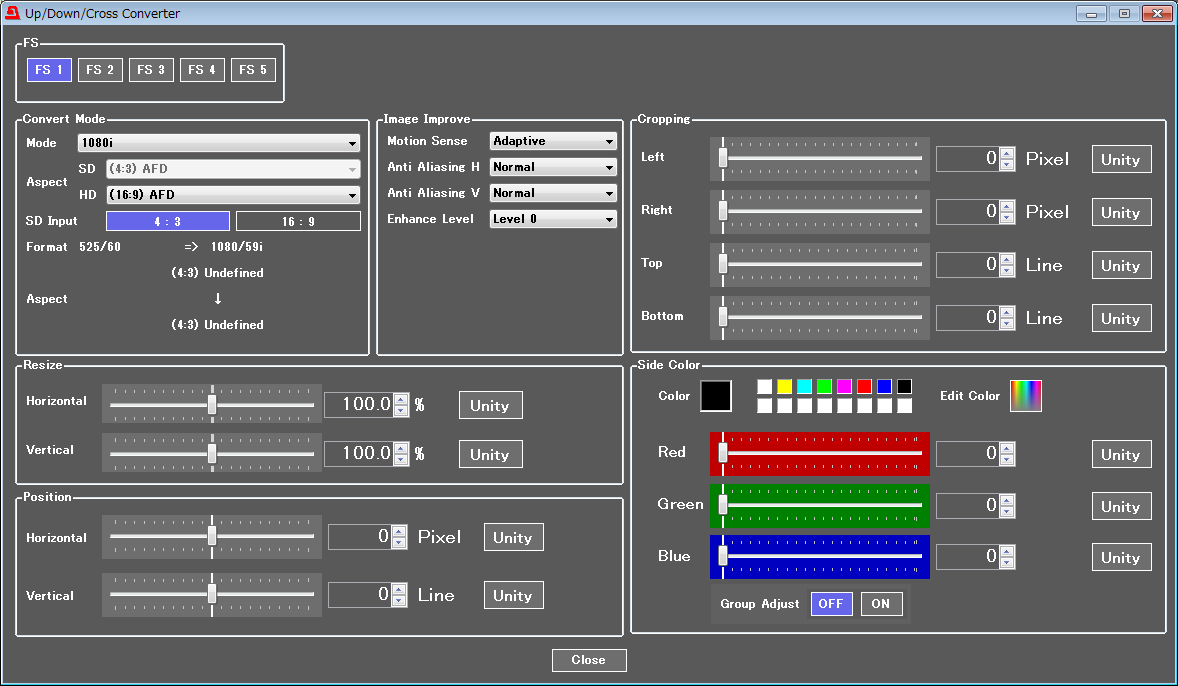

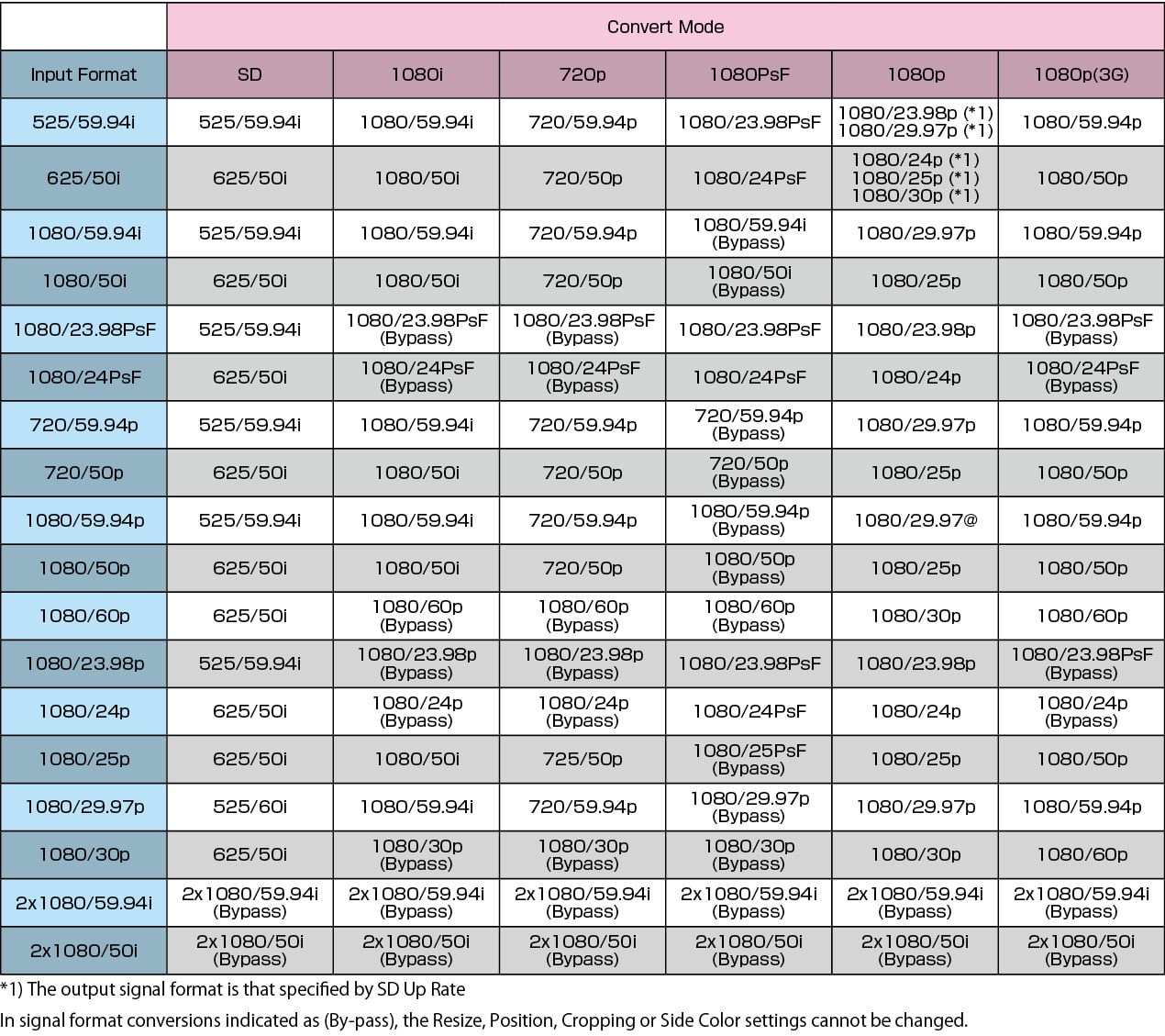

The FA-505 comes equipped with an up/down/cross/aspect converter function on each input. 3G, HD, and SD signals can be mutually inter-converted.
5.Color correction function on each input

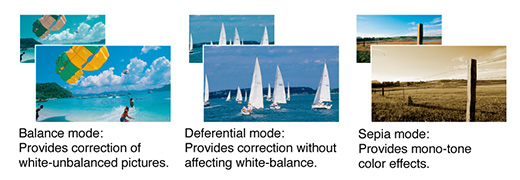

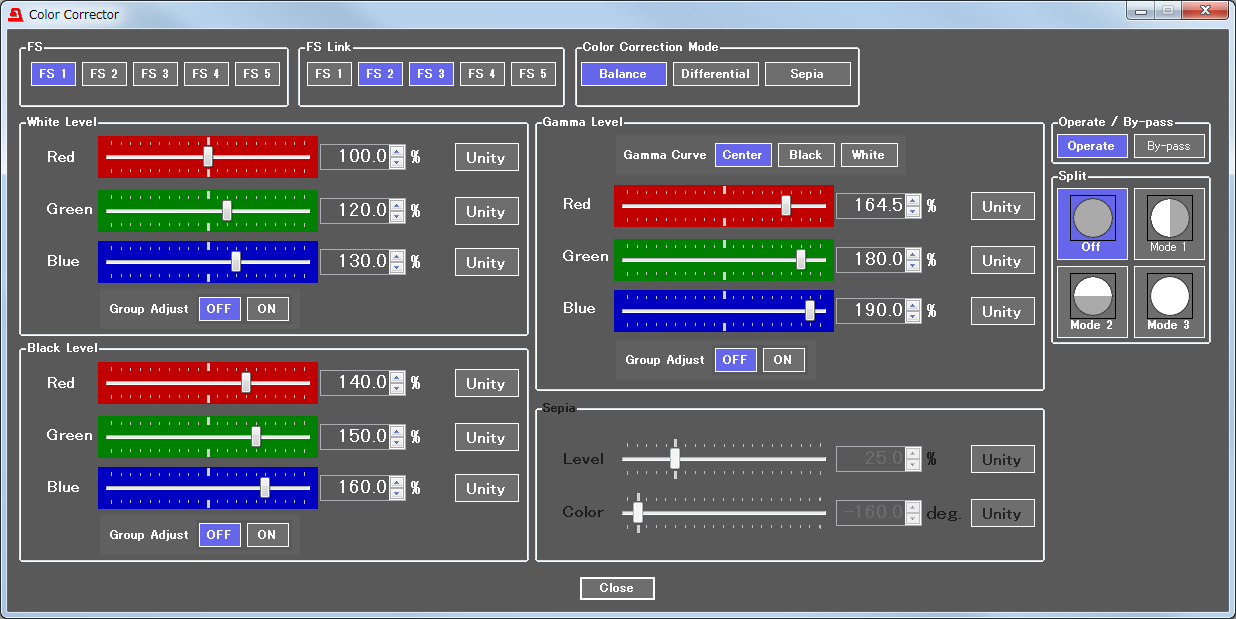

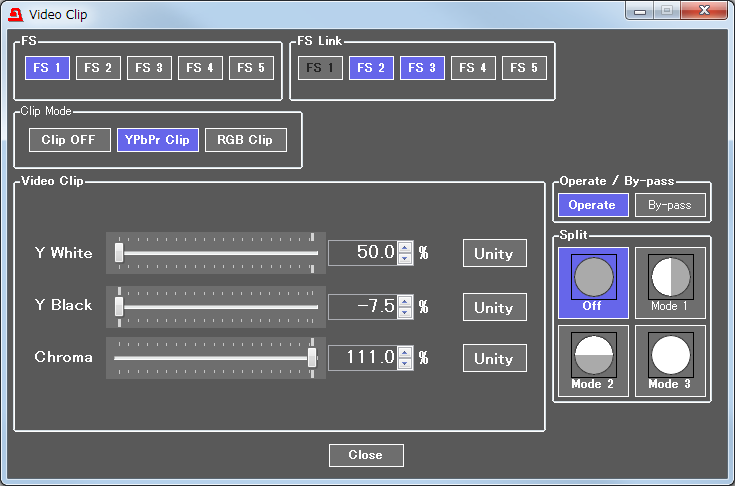

In addition to proc amp., the FA-505 incorporates a color correction function, allowing color correction to be performed in three color correction modes, which offer a flexible color adjustment environment that includes gamma adjustment, clipping, and various level adjustment functions.
6.Inter-convertible 3G-SDI level-A/B signals on each input
Connectivity difficulties can arise when building a 3G-SDI system that mixes level-A and level-B-compatible products. The FA-505 allows a system to be assembled that unifies the signals of either kind, with level-A/B input signals inter-convertible on each channel.

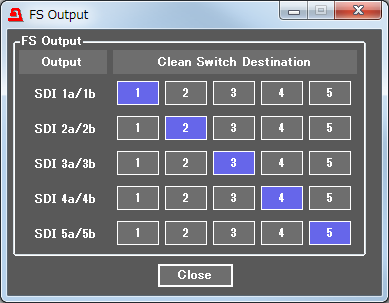

7.5x5 clean switch

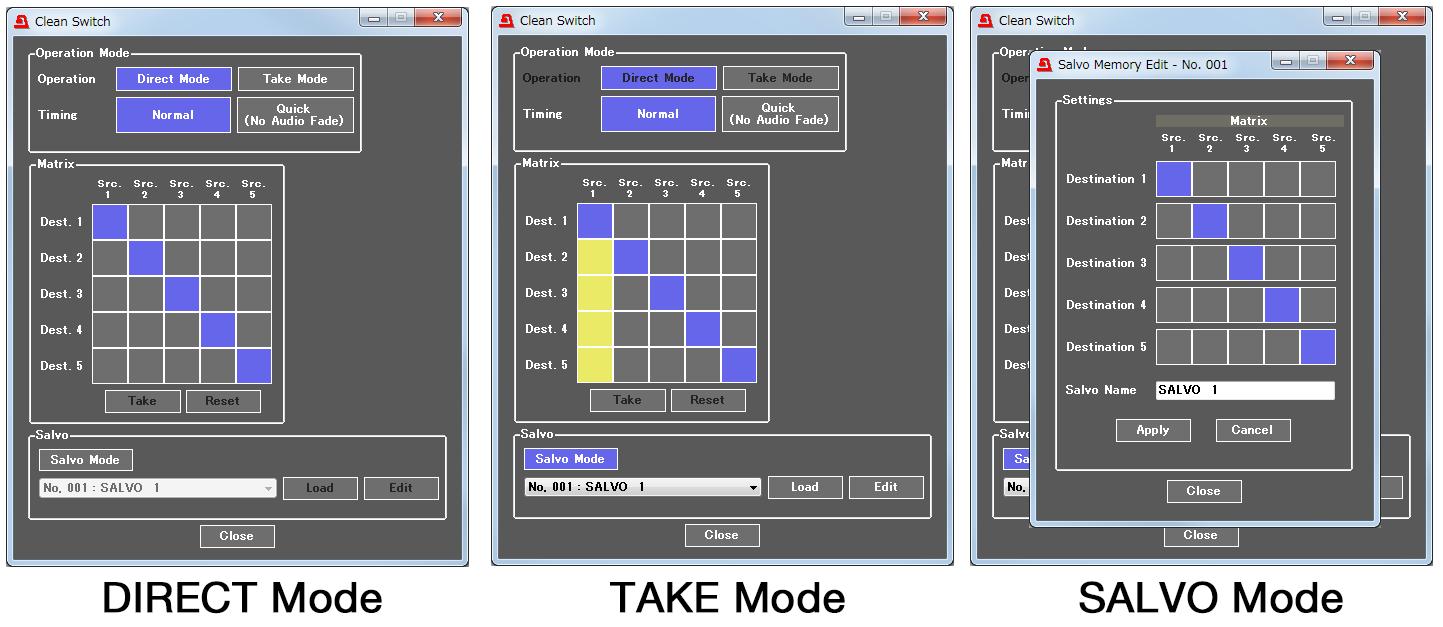

The FA-505 comes standard with 5x5 video and audio clean switches to route the five output SDI signals after processing.
8.SDI I/O relay bypass

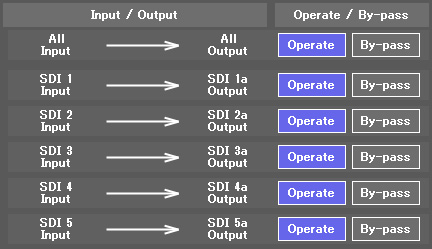

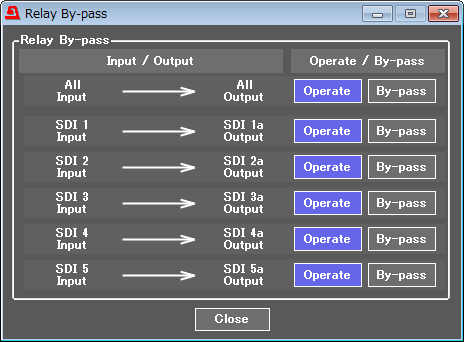

To cope with a power outage or emergency, the FA-505 includes an I/O bypass function.

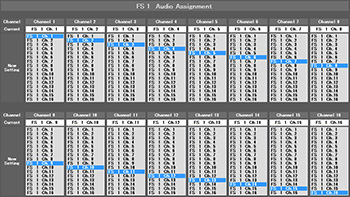

9.Powerful audio remapping

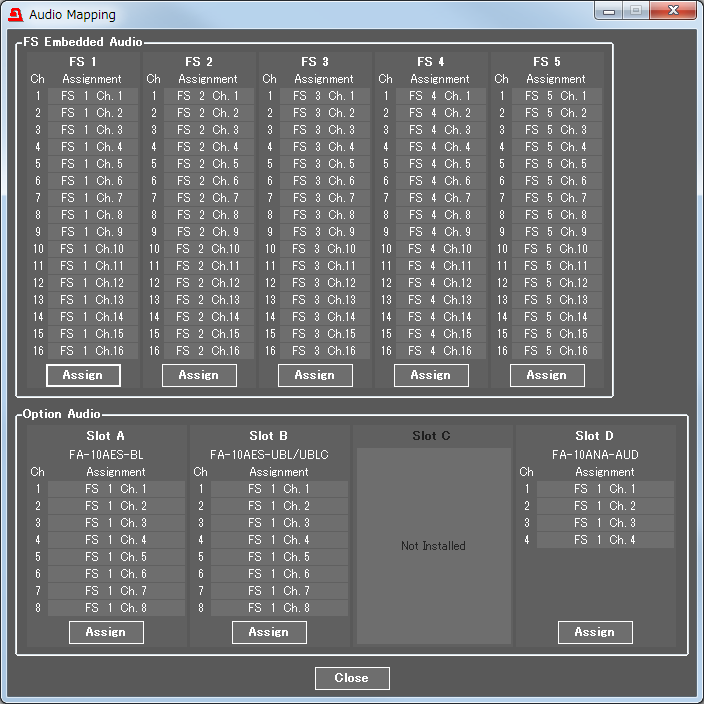

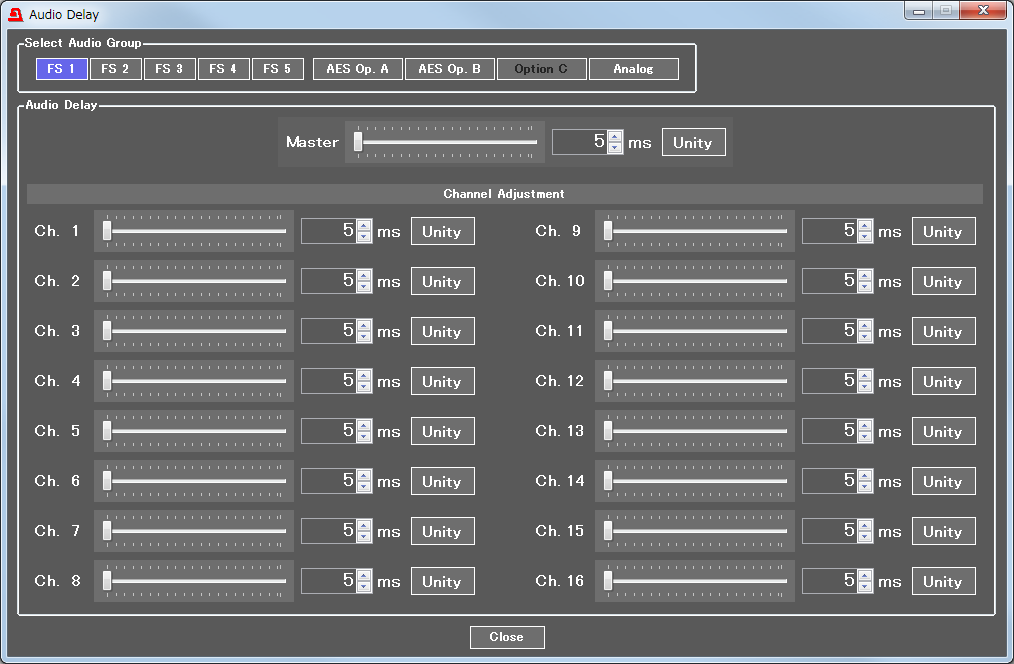

You can remap which audio signal channels to assign to each video or each audio channel. Up to 80 channels of audio signal can be freely re-mapped as standard, or up to 112 channels when optional cards are installed. Delay adjustment and polarity conversion are also available on each channel, allowing systems to be configured without any special audio processing equipment.
10.Usable as a 4K processor

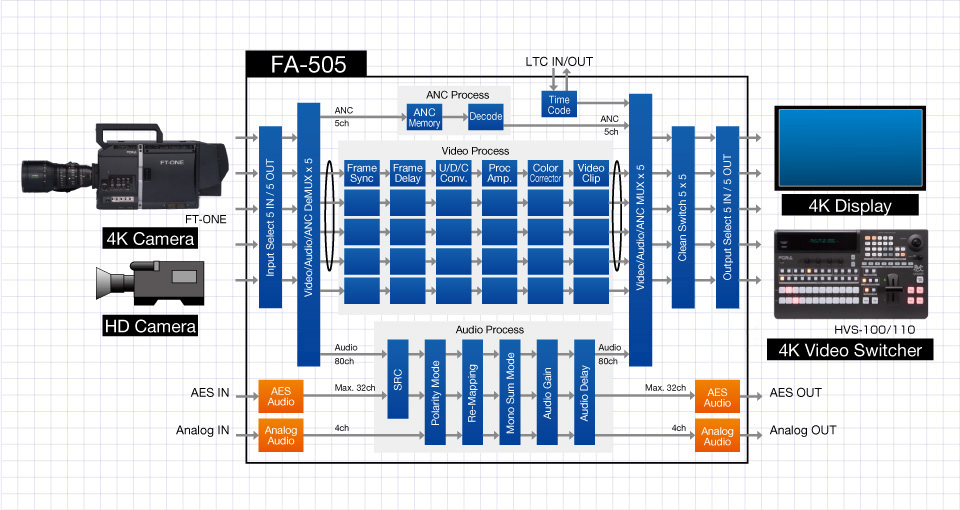

A video channel link allows you to collectively control channel parameters you want linked. The FA-505 offers a special 4K mode that uses this capability. 4K (QFHD) square division signals can be controlled as if they were one signal.
11.An abundance of control options

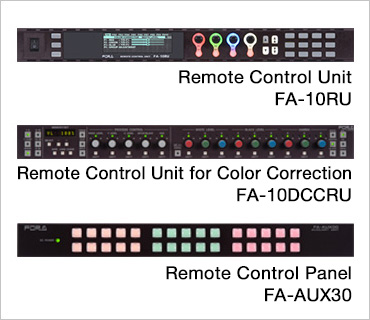

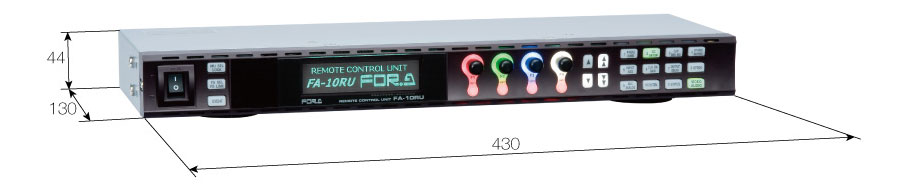

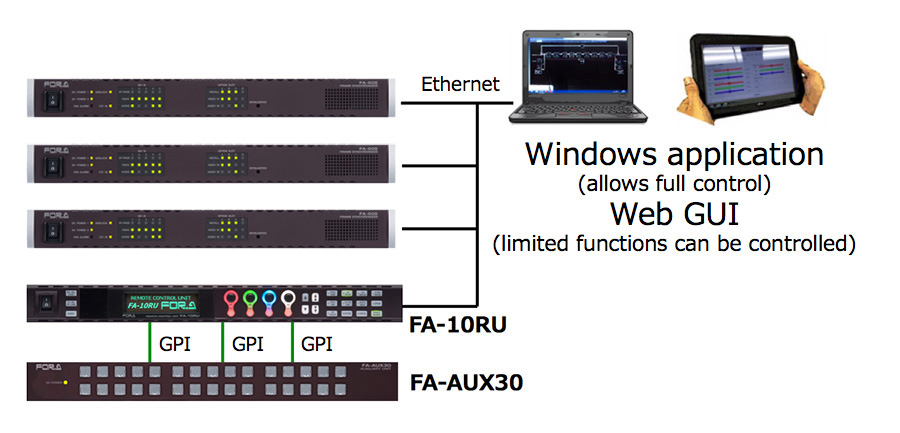

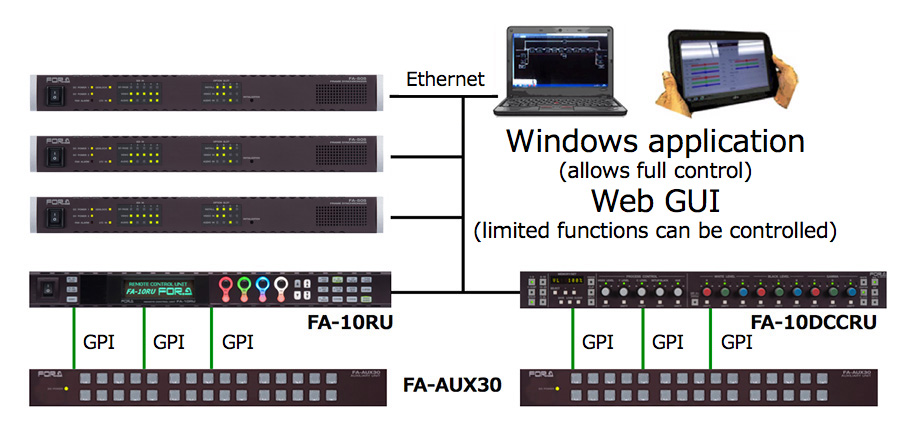

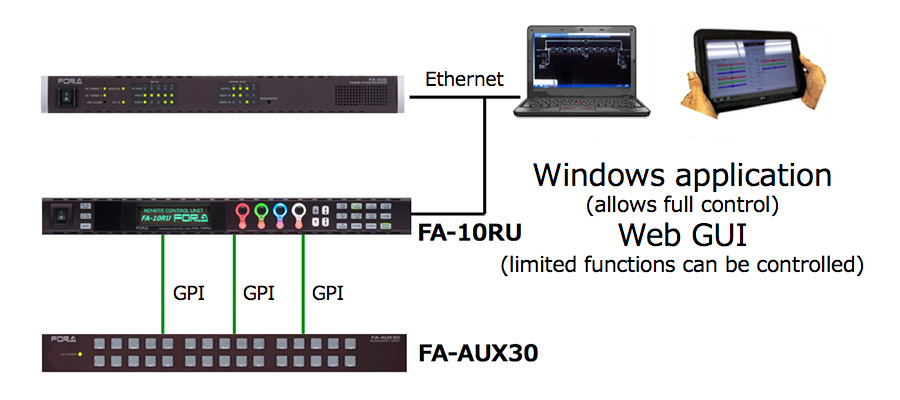

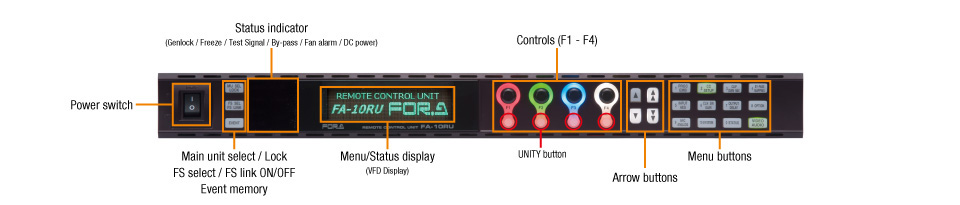

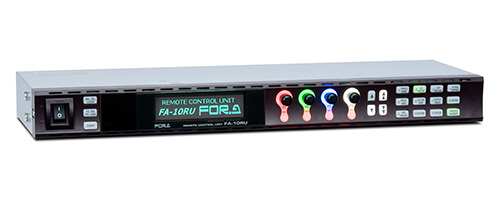

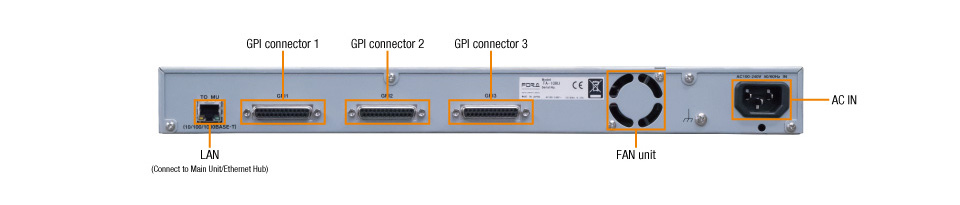

The FA-10RU remote control unit provides dedicated access to the full features of the FA-505 and can control up to 100 FA-505s. One FA-505 is also able to be controlled from multiple remote control units or GUIs at the same time (with up to five concurrent connections possible).

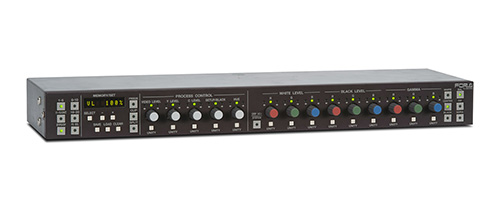

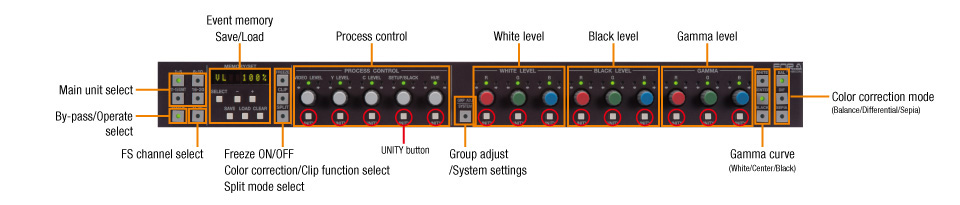

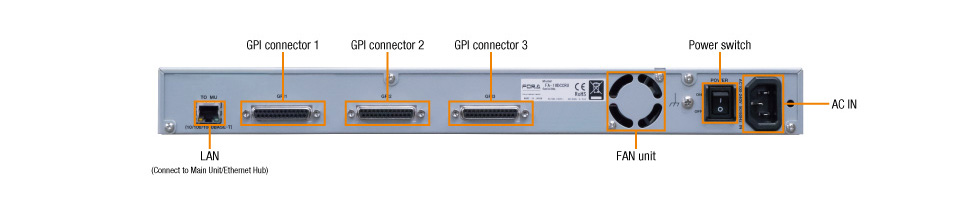

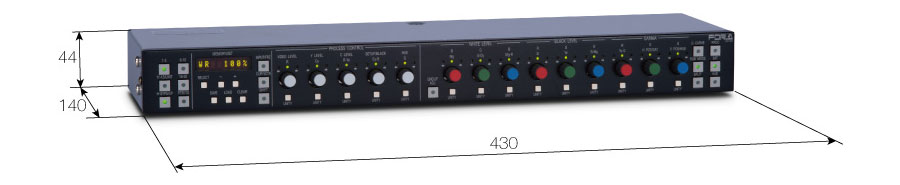

The FA-10DCCRU remote control unit for color correction has inherited the traditional operating style of FOR-A's color corrector series of products and offers direct access to a variety of parameters for smooth color adjustment.

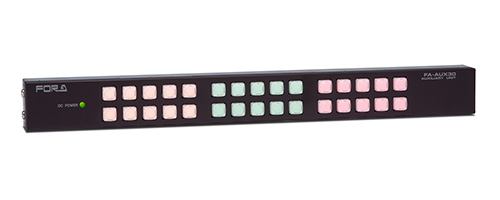

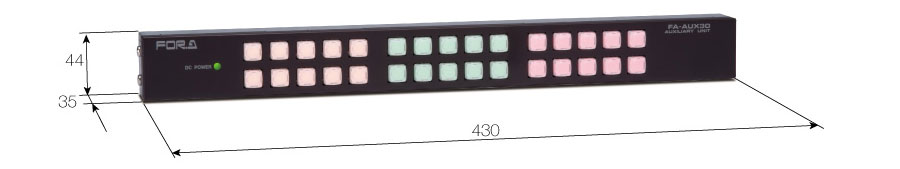

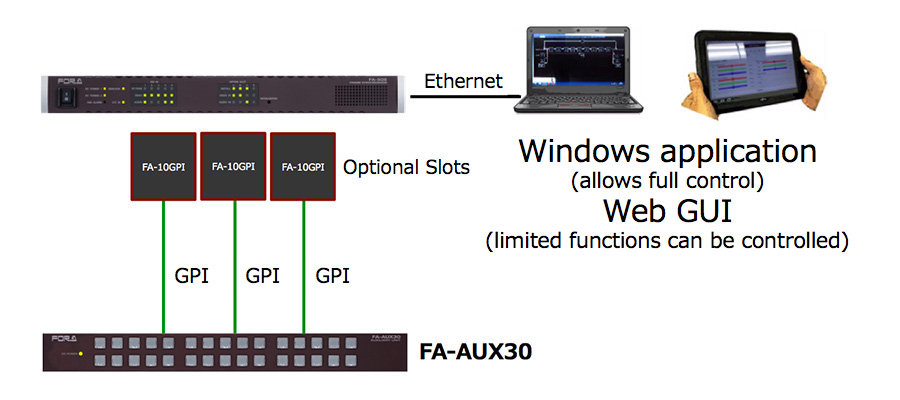

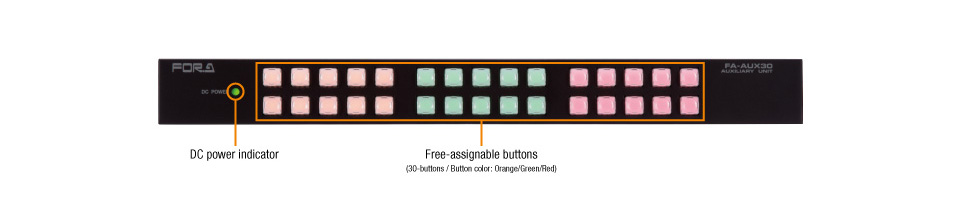

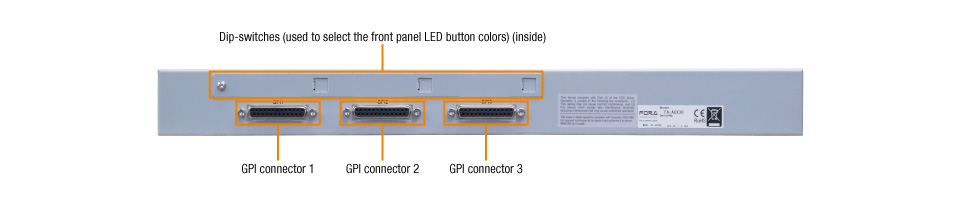

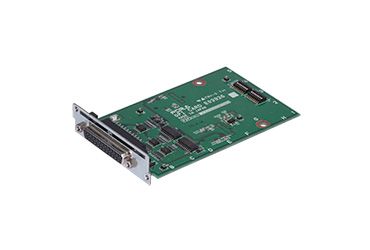

The FA-AUX30 remote control panel facilitates access to the rich functionality of the FA-505. Its switch box works over a GPI connection and can be used to freely assign router panel button functions to the 30 front panel buttons, and to assign shortcuts for each function. In addition, preset patterns are prepared in advance in the GPI settings, allowing you to begin using the FA-AUX30 immediately, with no detailed configuration required.

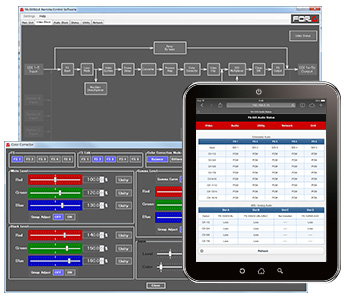

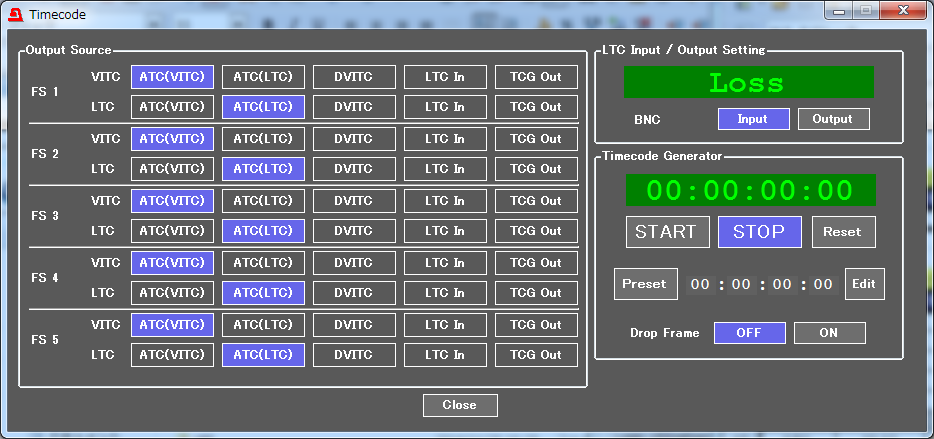

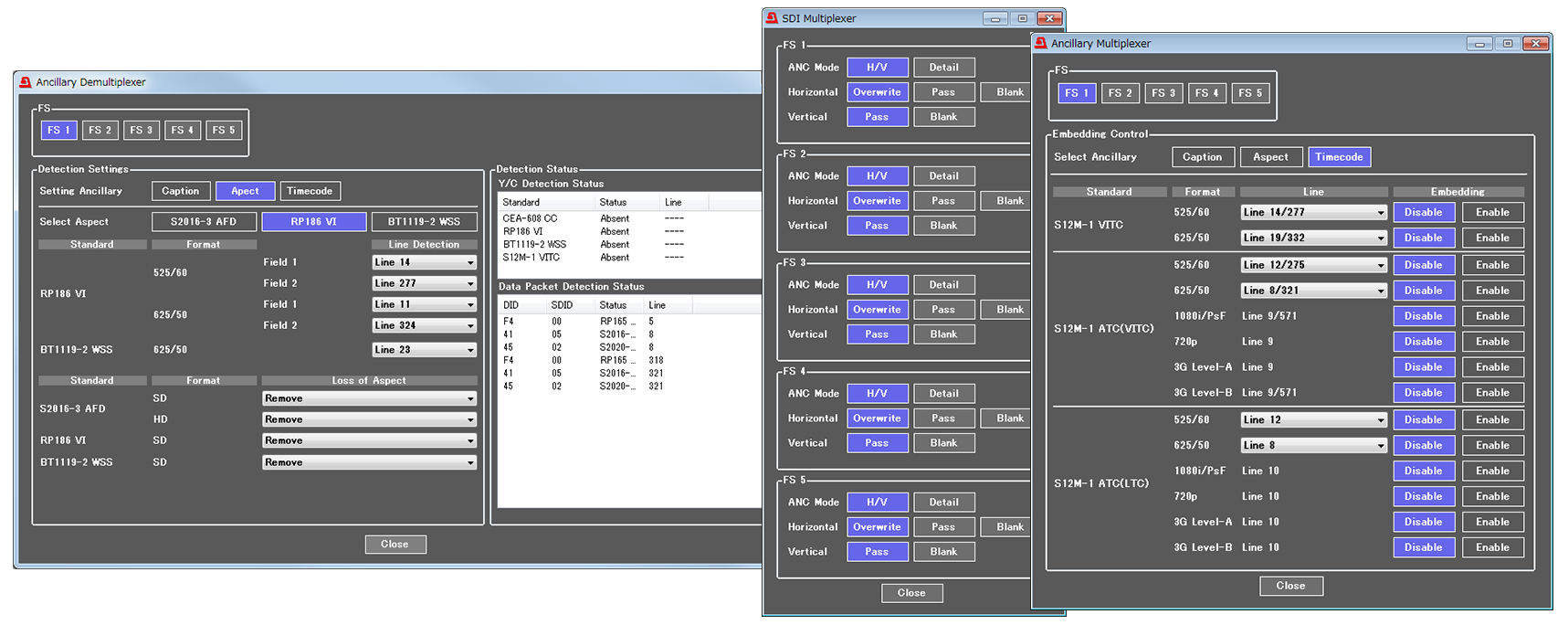

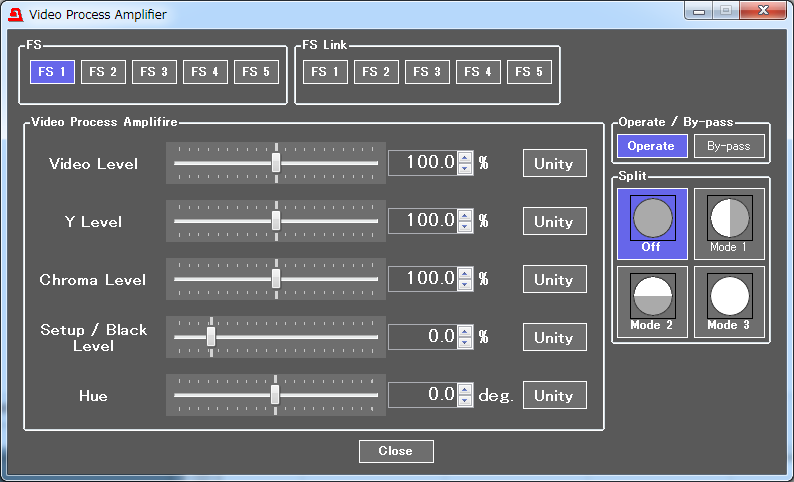

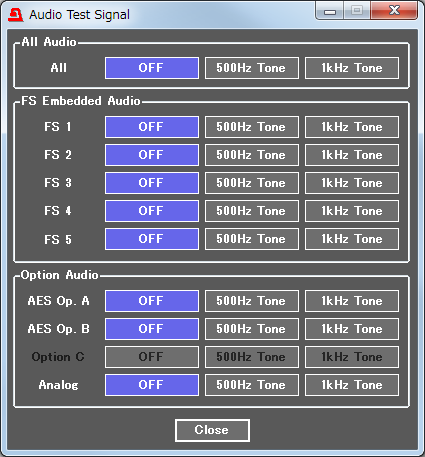

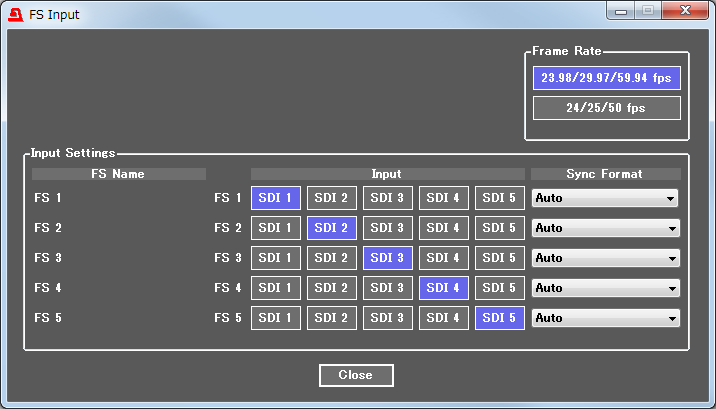

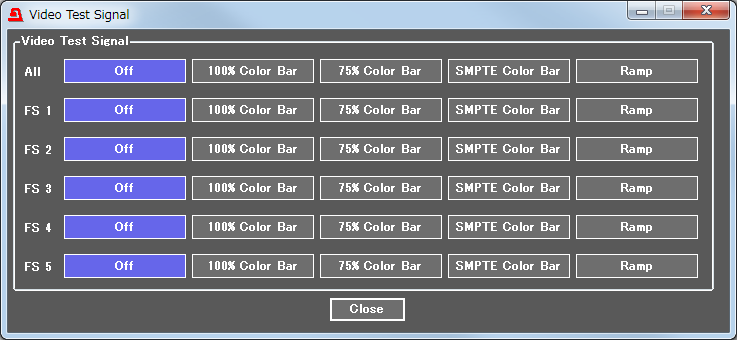

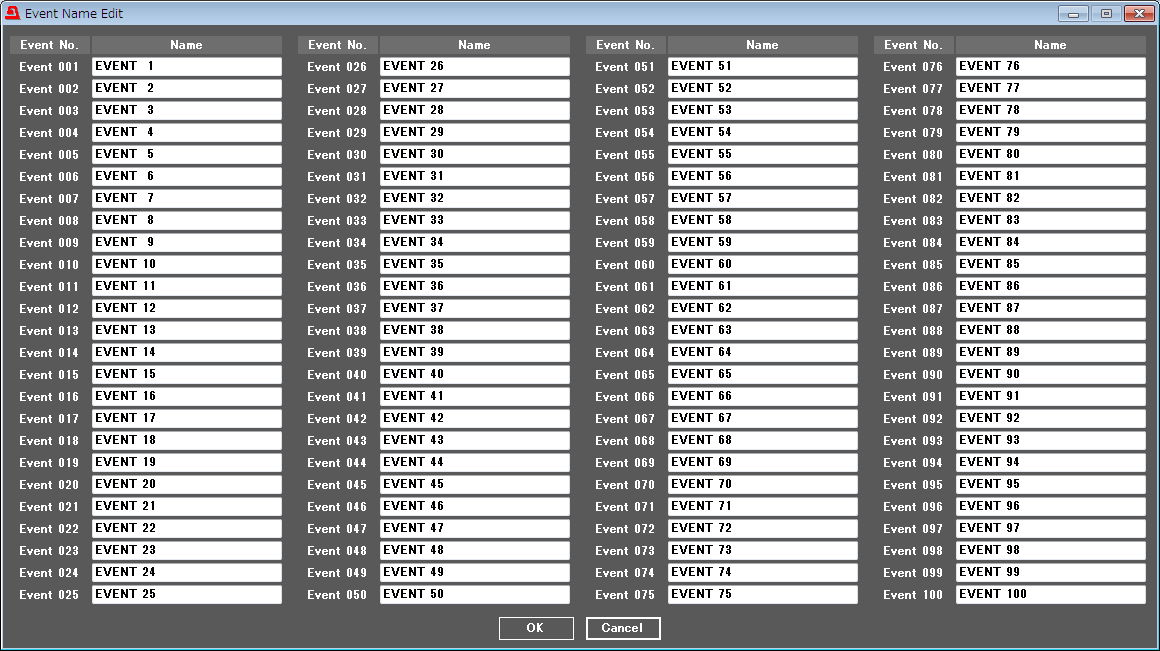

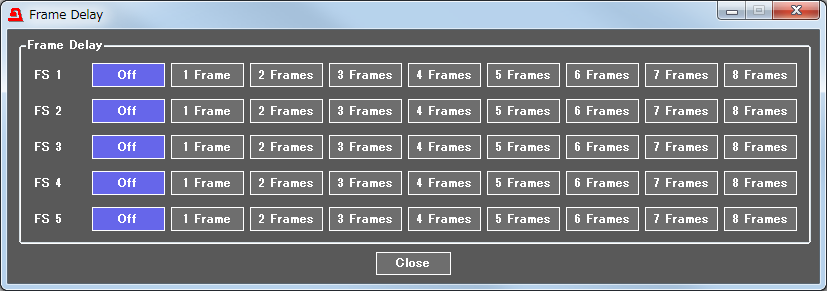

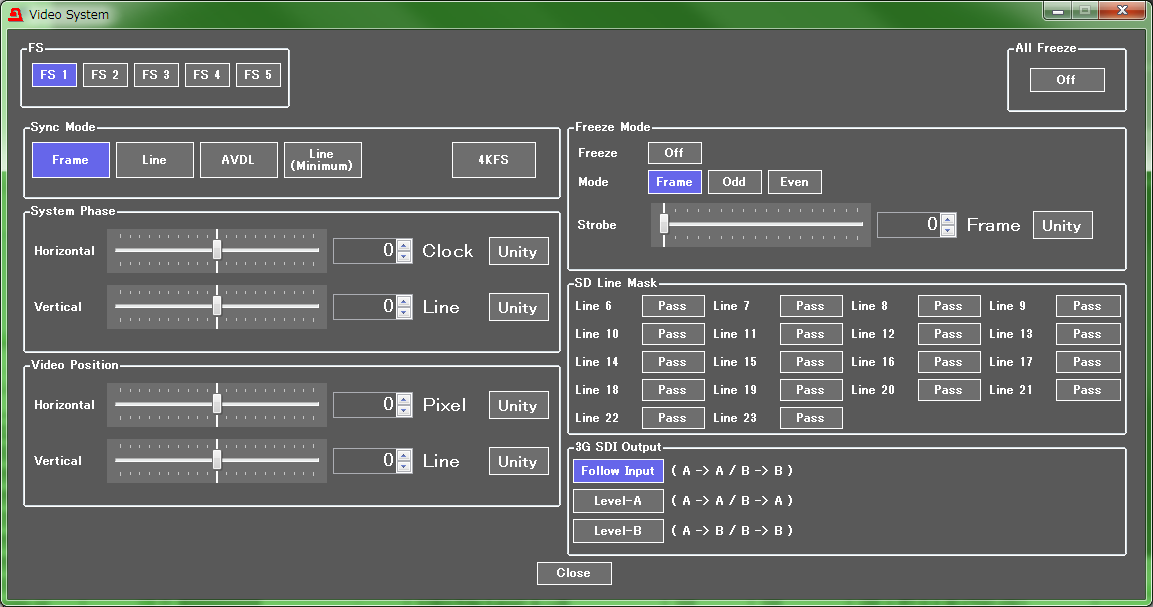

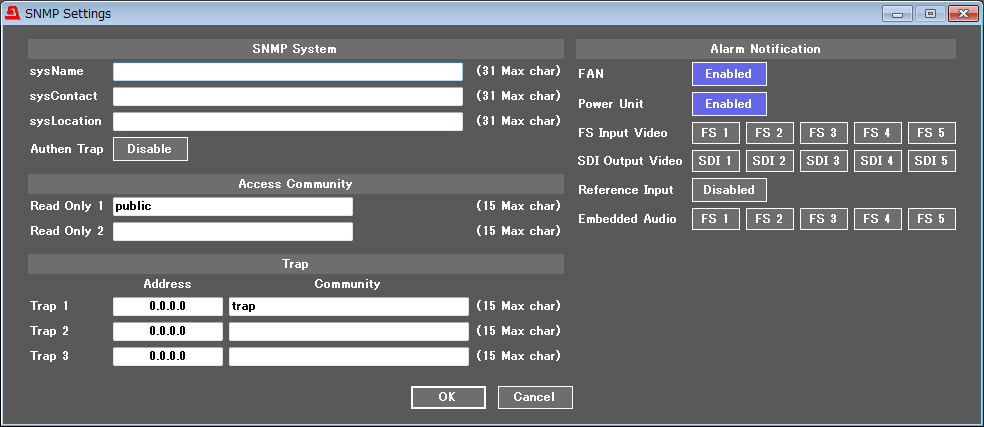

The FA-505 comes standard with a dedicated application that runs on Windows, providing full access to many functions, and allows a wide variety of settings. Web server functionality is also implemented in the main unit, allowing adjustments* to be made to various parameters from mobile and tablet devices.
- Available for a limited number of function and parameters
13.Efficient cooling system

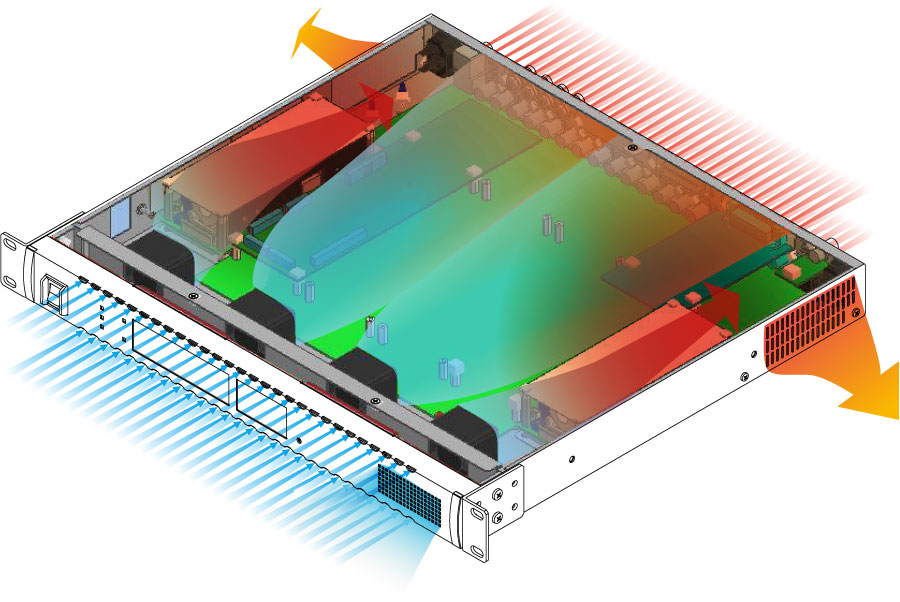

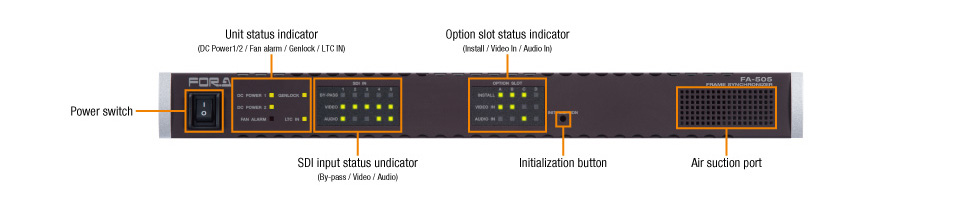

The FA-505 is designed to offer efficient cooling during extended use. Air that is taken in through the front panel inlet holes cools the inside power supply and other components, and is exhausted through the side and rear panels. The air intake is pulled straight through the inside and out the exhaust vents for efficient cooling, reducing retention heat throughout the whole unit.
