NEW

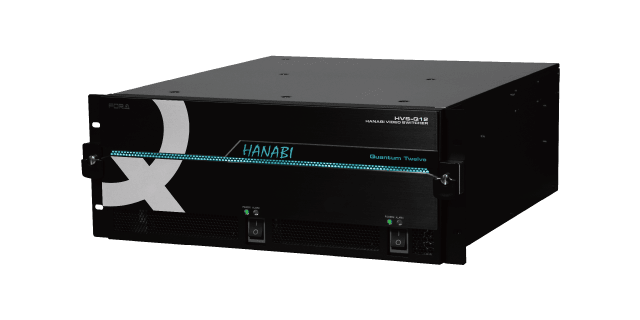

Video Switcher

HVS-Q12

* This information is as of September, 2025. All specification and contents are subject to change without prior notice.


Powerful and highly configurable switcher with compact body

The number of inputs/outputs can be expanded to 60 inputs and 32outputs*1 for HD and 42 inputs and 23 outputs*1 for 4K*2. The HVS-Q12 has a compact 4RU size body and up to 8 keyers available on each ME in 3G/HD-SDI. It features FOR-A functions such as HDR/SDR conversion*2, up/down conversion*2, and audio pass through – even in Frame Synch mode. As for IP I/F, not only NDI®*2, but even Dante®*2 I/F is available on the switcher, simplifying workflows. From 3G-SDI to 12G-SDI*2, it can be flexibly configured for any application and requirement.

*1 Including 2 HDMI outputs. Maximum varies and supporting signals are dependent on the options configured. For details, contact your FOR-A dealer.
*2 Optional.
NDI is a registered trademark of Vizrt NDI AB.　Dante is registered trademarks of Audinate Pty Ltd.

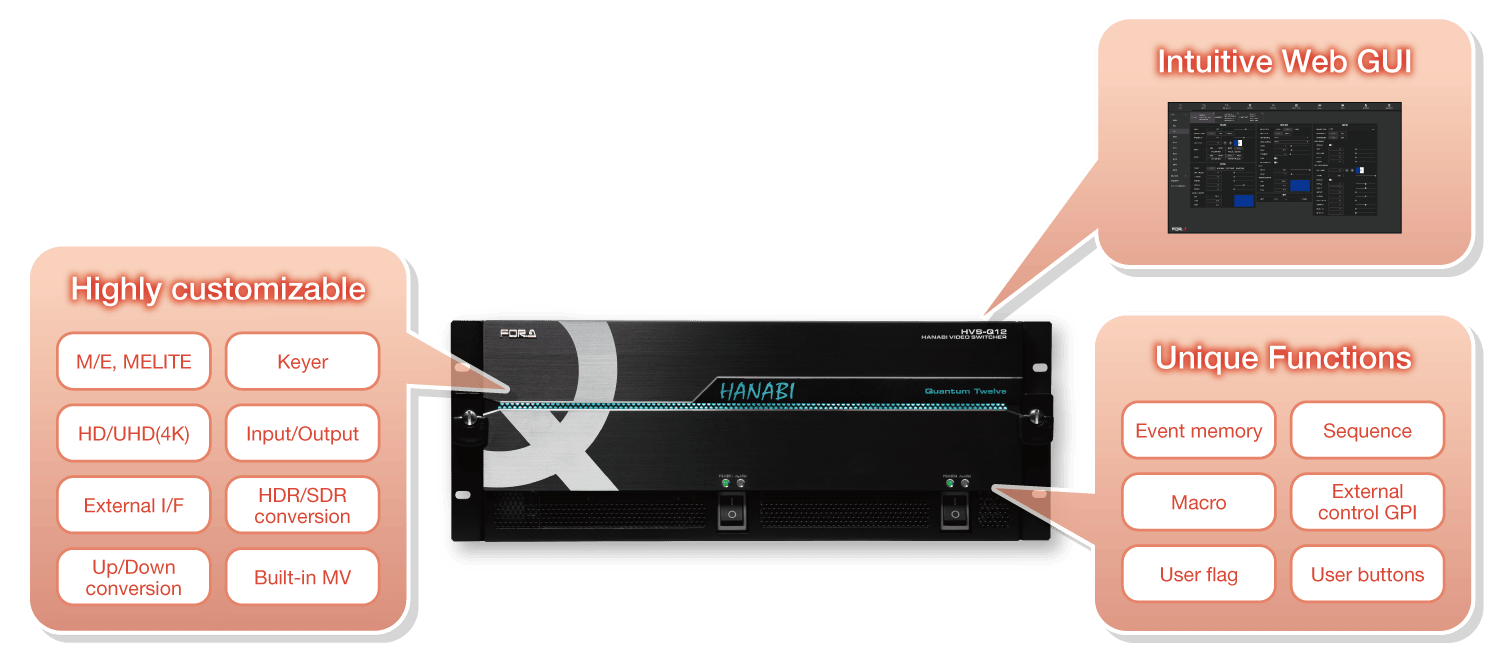

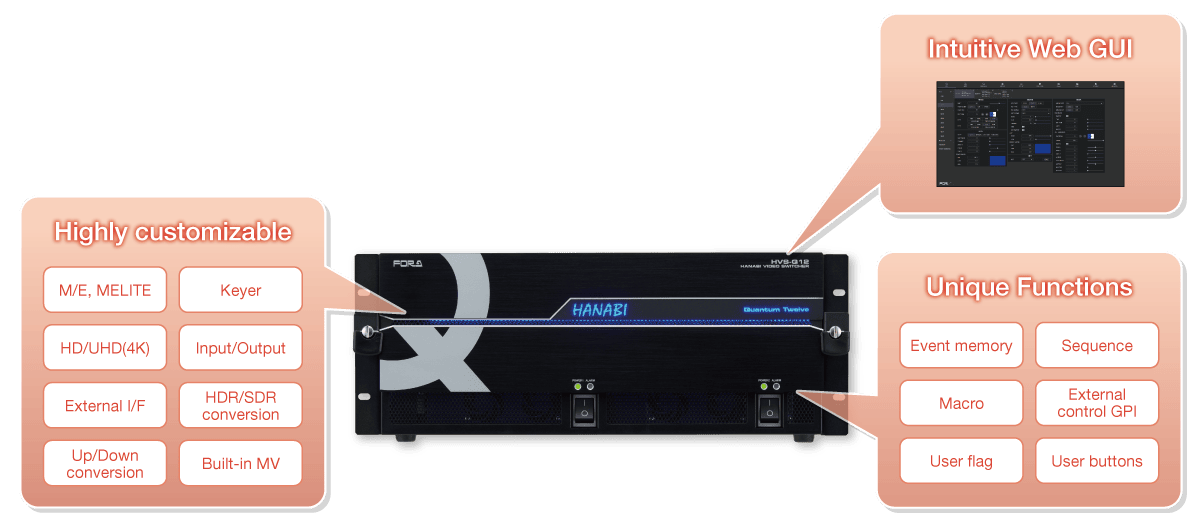

HVS-Q12 Introduction

Key takeaways

  • Highly customizable video switchers
    Provides highly stable video processing. The number of inputs/outputs, functions, interfaces, etc. can be added according to the operation. Inputs and outputs can be expanded by up to 60 inputs and 32 outputs* to support large-scale operation of a 4RU switcher.
    * Including 2 HDMI outputs.

  • Further enhancement on intuitive web GUI for creative operation
    While maintaining the usability of HVS series, which is well perceived in the market, the web-based GUI has been further enhanced for intuitive operation and ease of use.

  • Unique functions to enhance workflow
    To accelerate ease of use and creative workflow, the HVS Series’ unique functions are available, such as event memory, sequences, macros, GPI for external control, user flags, user button, bus follow, etc.

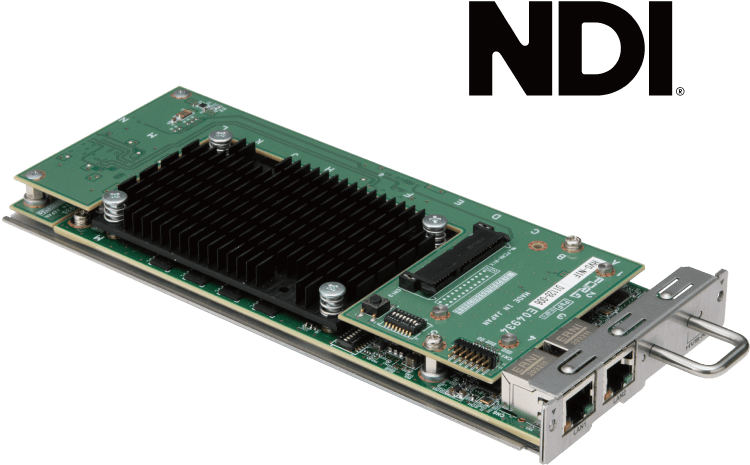

HVS-NIF for NDI Connectivity

HVS-NIF interface cards provide NDI High Bandwidth connectivity for high-quality, low-latency video transmission and NDI HX for low bit rate transmission. The cards make it easy to build a mixed baseband/IP system you can use to exchange video and audio over a network with other NDI equipment. This is extremely effective for live video production -whether you are shooting remotely or enjoying easy streaming from computers connected via NDI.

HVS-NIF Features


  • - NDI input/output is available with optional HVS-NIF*1.
    - Supports NDI High Bandwidth and NDI HX input and output.
    - Supports 3G/HD-SDI format, with 4 MoIP inputs*2/2 MoIP outputs per card.
    - Supports alpha channel receiving*3.
    - Add up to 3 cards to HVS-Q12, HVS-190S, 2 to HVS-190I and HVS-490*4.
    - Frame sync for all inputs.
    - Proc amp functionality: adjust source video luminance, saturation or hue.
    - Remote camera operation. - Dual Gigabit Ethernet ports.
    - Hardware-based codec processing for peace of mind when building MoIP systems.

    *1 HVS-NIF is not support 4K formats.
    *2 NDI High Bandwidth: up to 3 inputs for 1080/59.94p or 50p signals.
    *3 NDI High Bandwidth only.
    *4 HVS-190S/190 is 1 M/E, HVS-490 is 2M/E vide switcher. For details, visit our website.

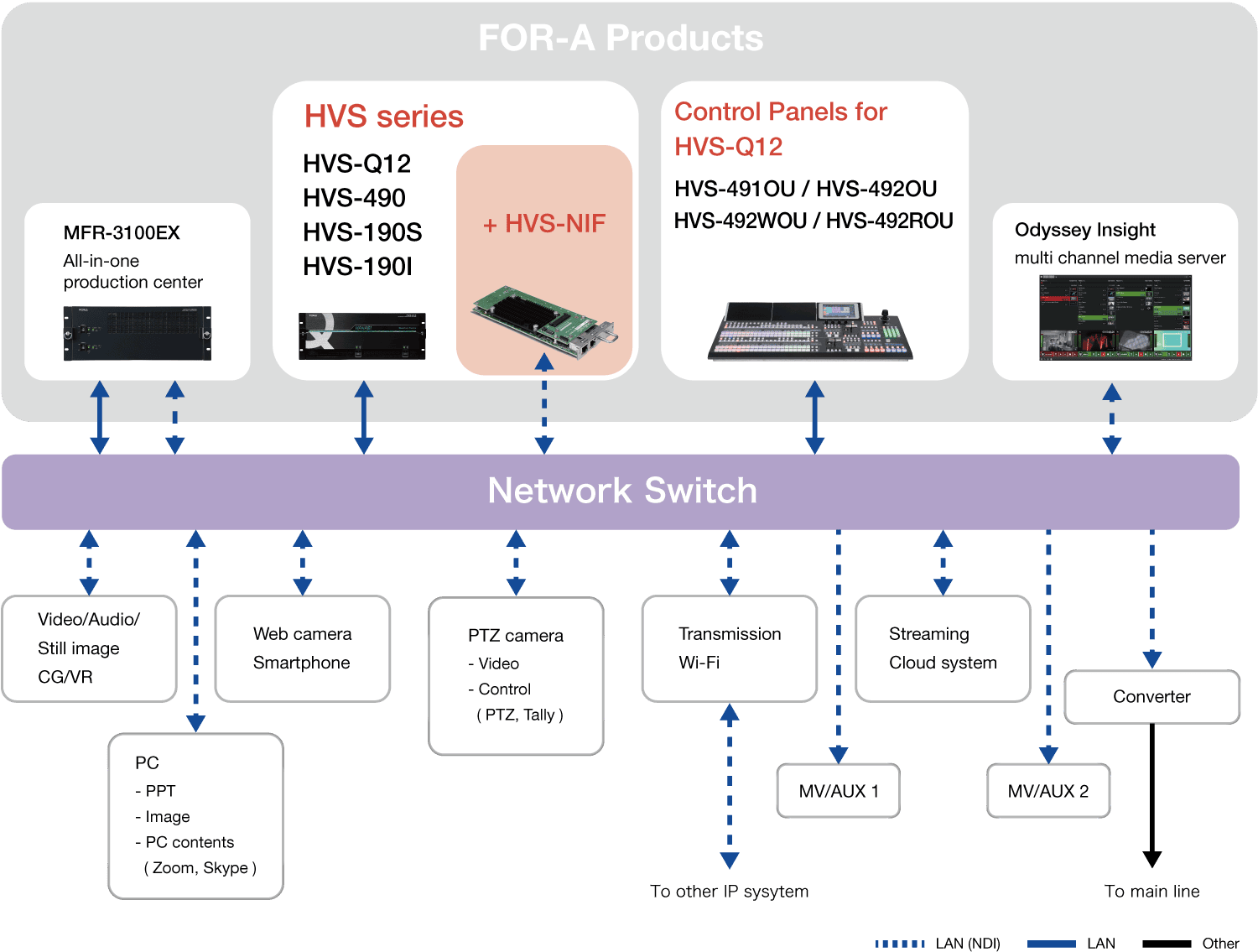

Live Solutions with NDI

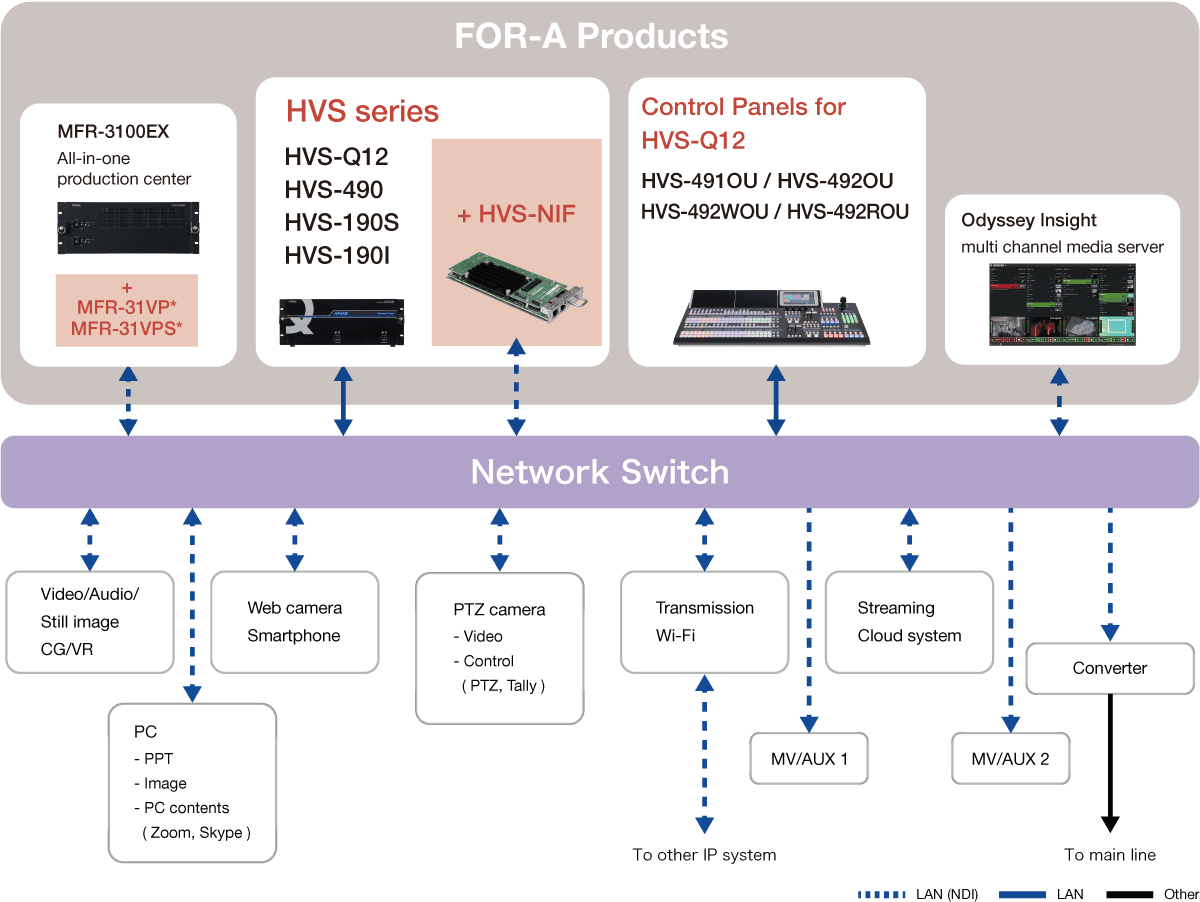

Live Solutions with NDI overall


For more information on each product, please visit the respective product page.


  • MFR-3100EX
  • HVS-190S/190I
  • HVS-490
  • Insight

  • Remote Control

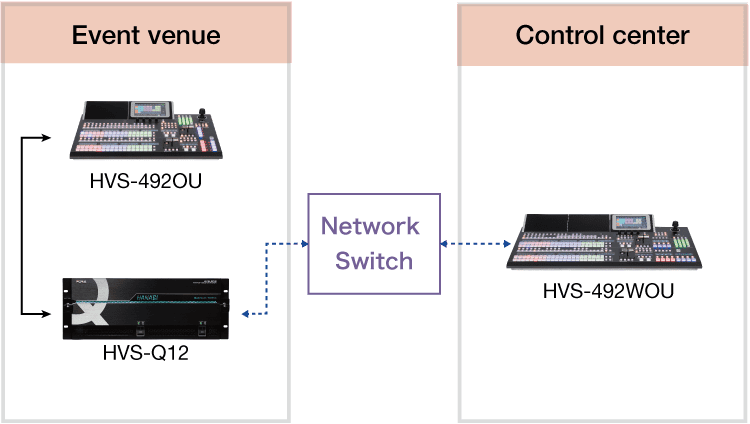

    Set up HVS-Q12* at venues to manage events remotely from a control panel at your base of operations.
    * HVS-492OU/HVS-492WOU are shown in the right example.
  • HVS-Q12 Remote Control

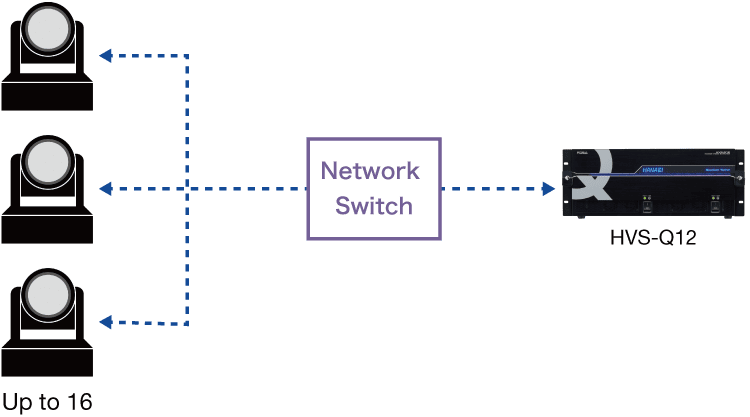

  • HVS-Q12 PTZ Camera Control

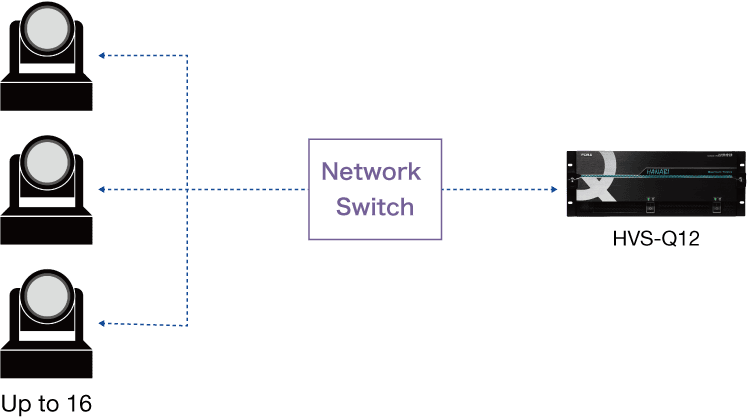

  • PTZ Camera Control


    Control multiple PTZ cameras—pan, tilt, or zoom, activate tally lights, set or apply presets, or use stored macros for video switching coordinated by bus buttons. Connect to up to 16 cameras.

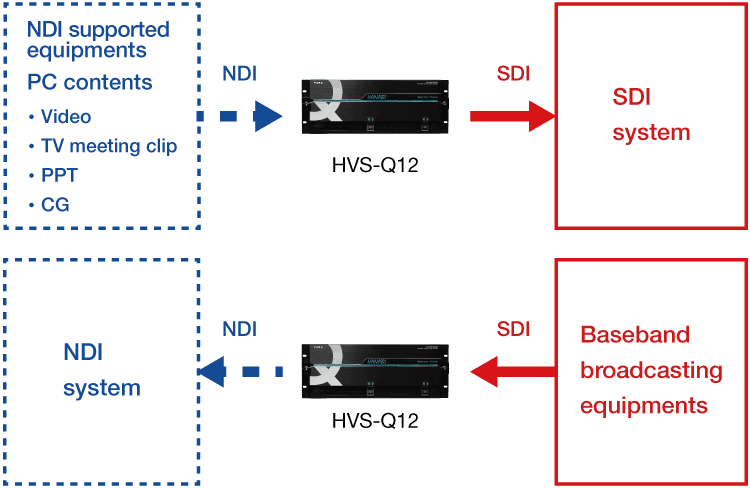

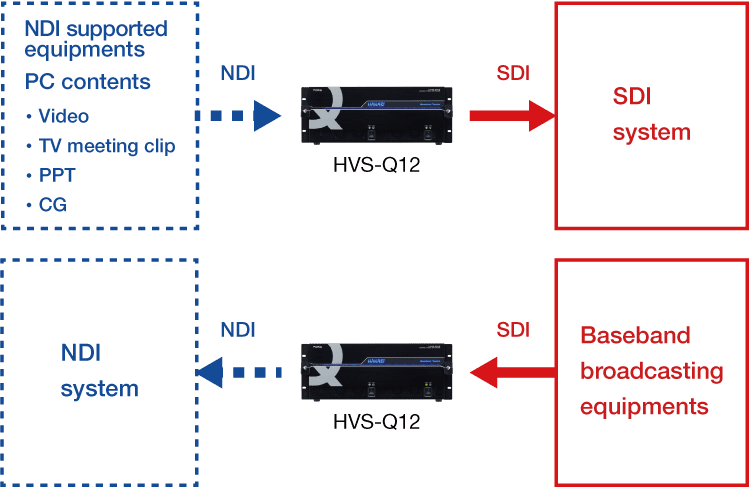

  • Support to Build SDI/NDI Mixed System


    Easily add devices or computer content compatible with NDI output (such as videos, videoconferencing streams, presentations, or computer graphics) to SDI systems. Reliable baseband switchers can also be added to your NDI system.
  • HVS-Q12 SDI/NDI Mixed System
  • HVS-Q12 SDI/IP Conversion and Routing

  • SDI/IP Conversion and Routing


    Add PTZ camera output, computer content, or other sources to SDI equipment, and freely convert between SDI and MoIP while routing video/audio from a single switcher to multiple devices. SDI/IP sources and output can be arranged side by side with the built-in multi-viewer for monitoring over MoIP.

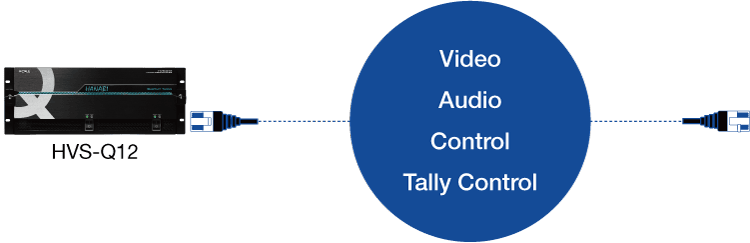

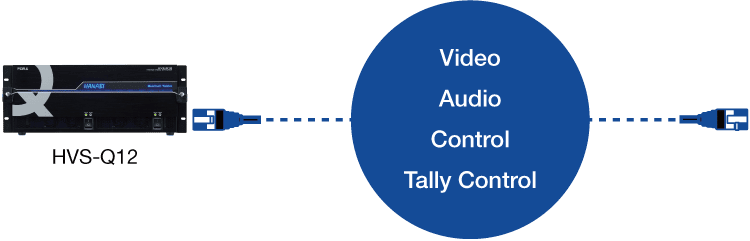

  • 2-way Transfer of Many Signals Using only LAN Cables

    Two-way transfer with multiple video, audio, control, or tally systems using only one LAN cable.

  • HVS-Q12 LAN Cables
  • Excels in Many Applications

  • Excels in Many Applications


    Beneficial for broadcasting, live production, corporate events, or other applications, regardless of the market.



Examples of Application

Mixed SDI/NDI Production
Video feeds with both on-site and remote performers can be sent to the switcher along with computer content. In addition to the PGM bus, provides an ample selection of Aux buses (12) that can be used to send any video back to remote talent.

SDI/IP Simulcasts
Simultaneously with SDI playout, connect to streaming sites via a MoIP stream, enabling mixed or coordinated broadcasts of both sources.

Video Input/Output

  • 3G/HD-SDI 12 inputs/6 outputs as a standard. Supports 4K and NDI with options.
  • Supports 12G-SDI and 6G-SDI when using 4K format.
  • Expandable up to 60 inputs/32 outputs*1 for HD and 42 inputs/23 outputs*1 for 4K.
  • Equipped with frame synchronizers*2 and proc amps for all inputs. Audio data can pass through even when frame synch is in use.
  • Each output is equipped with a safety marker function*3.
  • For 4K operation, an optional up/down converter can be installed. When using the up/down converter, SDR/HDR and color gamut conversion are available*4.

    *1 Including 2 HDMI outputs. Maximum varies and supporting signals are dependent on the options configured. For details, contact your FOR-A dealer.
    *2 The frame synchronizer function is not available for input from HVS-DNT connectors.
    *3 Except HVS-NIF and HVS-DNT output.
    *4 Up/down converter, SDR/HDR conversion and color gamut conversion are available on odd-numbered I/O.

Frame Synchronizer*

  • Every input is fitted with frame synchronizers that enable switching of synchronous and asynchronous video signals.
  • Audio data can pass through even when frame synch is in use.
  • When the input is not in use, FS memory can be used as a still memory.

    * The frame synchronizer function is not available for input from HVS-DNT connectors.

HDMI

  • 2 HDMI outputs - each capable of UHD output.
  • When outputting UHD, HD video can be displayed on 4 screens.

Dante Audio

  • Support for up to 64 channels of Dante audio input/output per card with optional HVS-DNT.
  • Up to 3 cards can be mounted.
  • Support for redundancy with primary connector and secondary connector.
  • Provides 2 BNCs and expansion up to 2 channels by switching between SDI input/output.
  • By remapping Dante audio inputs, HVS-DNT can output Dante audio as SDI output or use as input source of video switcher.
  • Available gain adjustment, tone signal output, and audio delay setting when using SDI signal.

>> See more about HVS-DNT

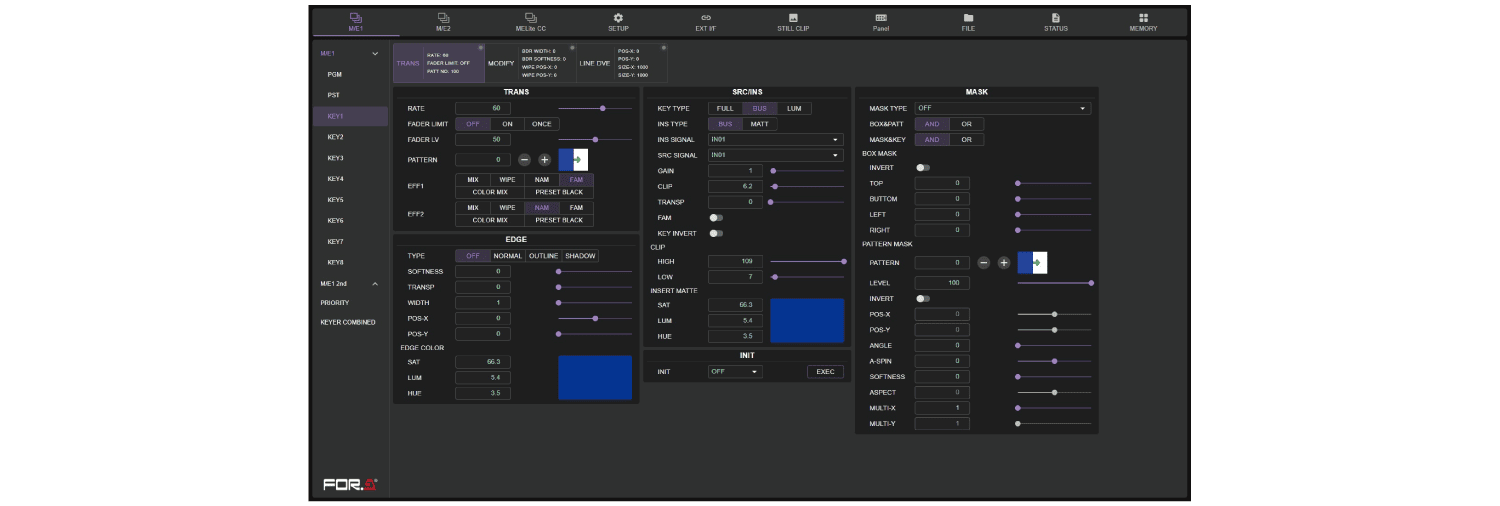

Web GUI

  • The unit has a built-in web server, allowing various settings to be made via a web browser.
  • Redesigned web GUI provides enhanced operability.
  • Mobile and tablet terminals can also be used through a wireless access point.

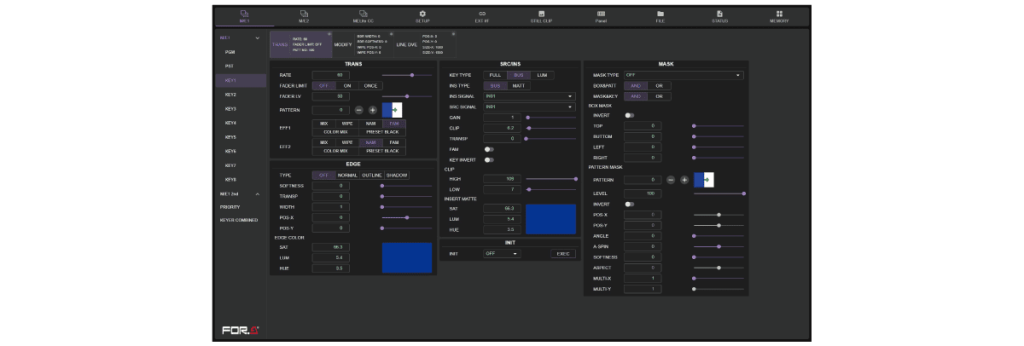

    HVS-Q12 Web GUI

Keyer/FLEXaKEYTM

  • 3 M/E equivalent operation is available with 2 M/E + MELite.
  • In standard HD configuration, it can be used as 1M/E (8 keyers) or 2M/E (4 keyers/each). Expandable up to 2M/E (8 keyers/each) with the option.
  • In 4K, 1M/E (4 keyers) and expandable up to 2M/E (4 keyers/each) with the option.
  • Available as an option, FLEXaKEY offers 8ch in HD mode and 4ch in 4K.
  • Keyer gain, clip level, and transparency adjustment is supported, with edge*1 and mask functions also provided.
  • The keyer is equipped with a 2.5D DVE, and the FLEXaKEY is equipped with a 2D DVE.*2

    *1 Keyer only
    *2 The number of channels varies depending on the format
    FLEXaKEY：
    Keyer that can be assigned to M/E or MELite. Used in conjunction with regular keyers, FLEXaKEY provides additional keyers and increases production flexibility.

Macro

  • Enables to store and register a series of operations and then perform complicated operations with one push of a button.
  • Up to one hundred of patterns can be registered.

Still/Clip Stores

  • 6 still image channels are available for HD and 3 for 4K. Each still image memory has a key.
  • Still image memory can be used as video memory, with 4 ch available in HD and 3 ch available in 4K.
  • Graphic transitions with video are available.
  • Built-in RAM can be used as a still image or video memory.
  • Supply stills in .jpeg, .tga, .bmp, or .png format from a computer via LAN or from an SD card in the control panel.
  • Internal memory can hold 2000 frames for HD and 500 frames for 4K with instant switching between image files during playback.
  • Optional SSD can be mounted to back up images.

    With video storage, sequential still image files are played. Image data will be erased when the power is turned off.

Event Memory

  • Store up to 100 patterns consisting of BKGD, KEYER, FLEXaKEY, MELite, AUX, MV, CK, CC, STILL.
  • Even the startup status is available as an event memory option.
  • Switch panel settings all at once at the press of a button.
  • Seamless execution of complex video switching from a single button, with your choice of event-switching effects and switching times.

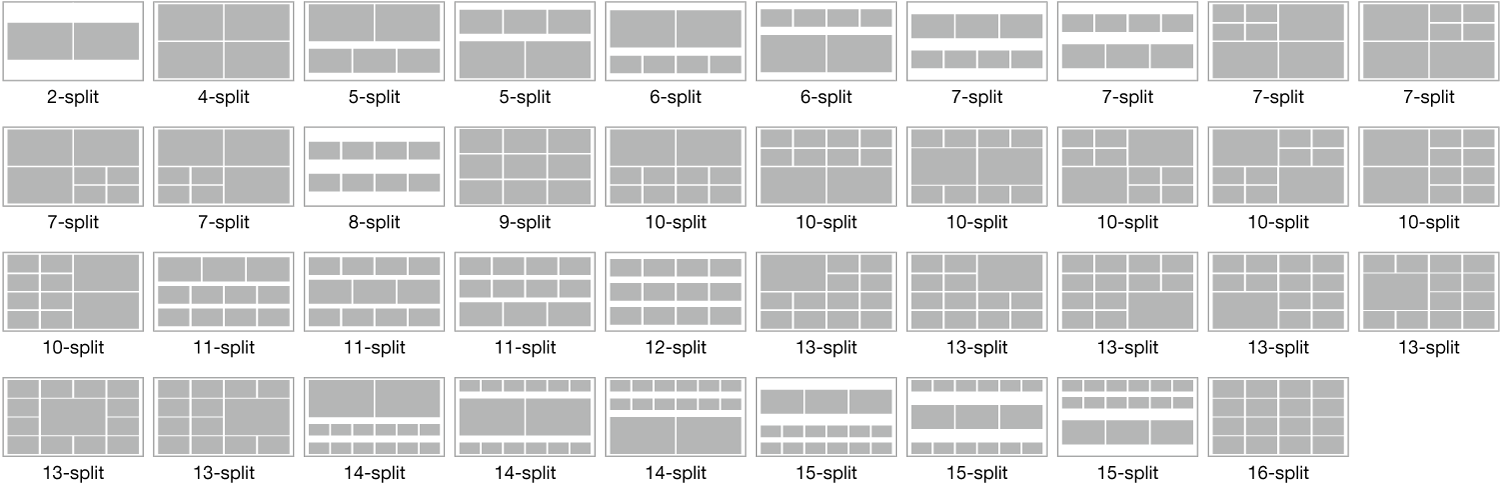

39 Kinds of Multi Viewer Split Patterns

  • 2 built-in multi viewer outputs can display up to 16 windows, and optionally, an identically specced 2 multi viewer outputs can be added.
  • Layout patterns without borders can also be selected.
  • Display channels can be freely assigned, allowing assignment of not only input source but also PGM output.
  • Display elements include title, frame tally, audio level meter, and clock (analog/digital).

    HVS-Q12 MV Split Patterns

Other features

  • GPI-in/out (20 input/output), POWER and FAN alarm output are standard equipment.
  • Expandable up to 4 RS-422 systems and up to 2 GPI in/out with optional expansion board.
  • Redundant power supply is available as an option.
  • Built-in color bar.

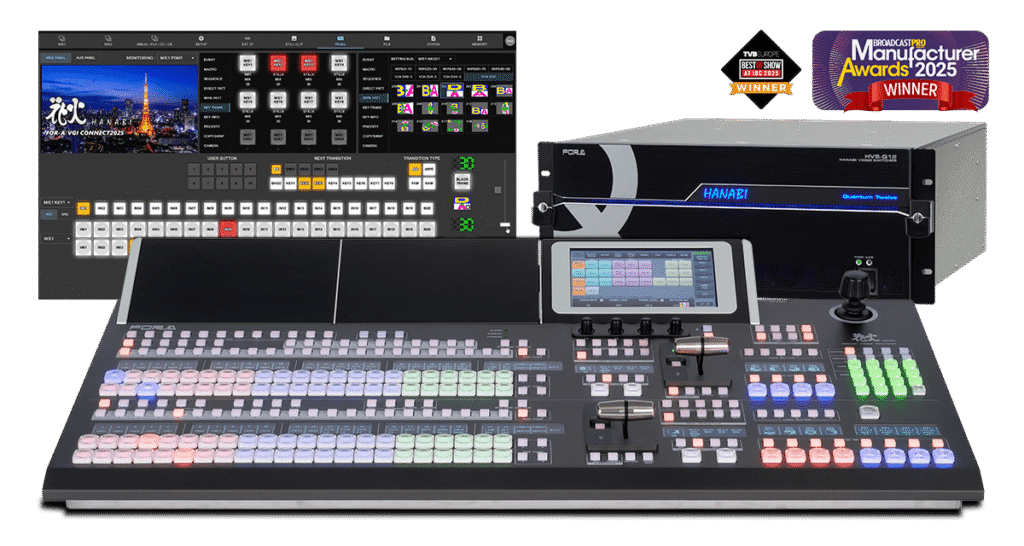

Control Panels

Ample control panel connectivity is provided. HVS-Q12 users can connect HVS-490 control panels. These panels also enable remote control over LAN.

Advantages include enhanced usability and accurate control through customizable RGB button lights assigned to specific video material or button functions, an OLED display for material, a 7-inch touch panel, source and macro name display, and more. Direct input via a three-axis (XYZ) joystick, menu control knobs, and a keypad. A range of functions can also be assigned to user buttons in convenient locations on the control panel. Use an SD card to load or save configuration files and stills.


HVS-491OU


HVS-491OU




HVS-492ROU


HVS-492ROU




HVS-492OU


HVS-492OU




HVS-492WOU


HVS-492WOU

Options

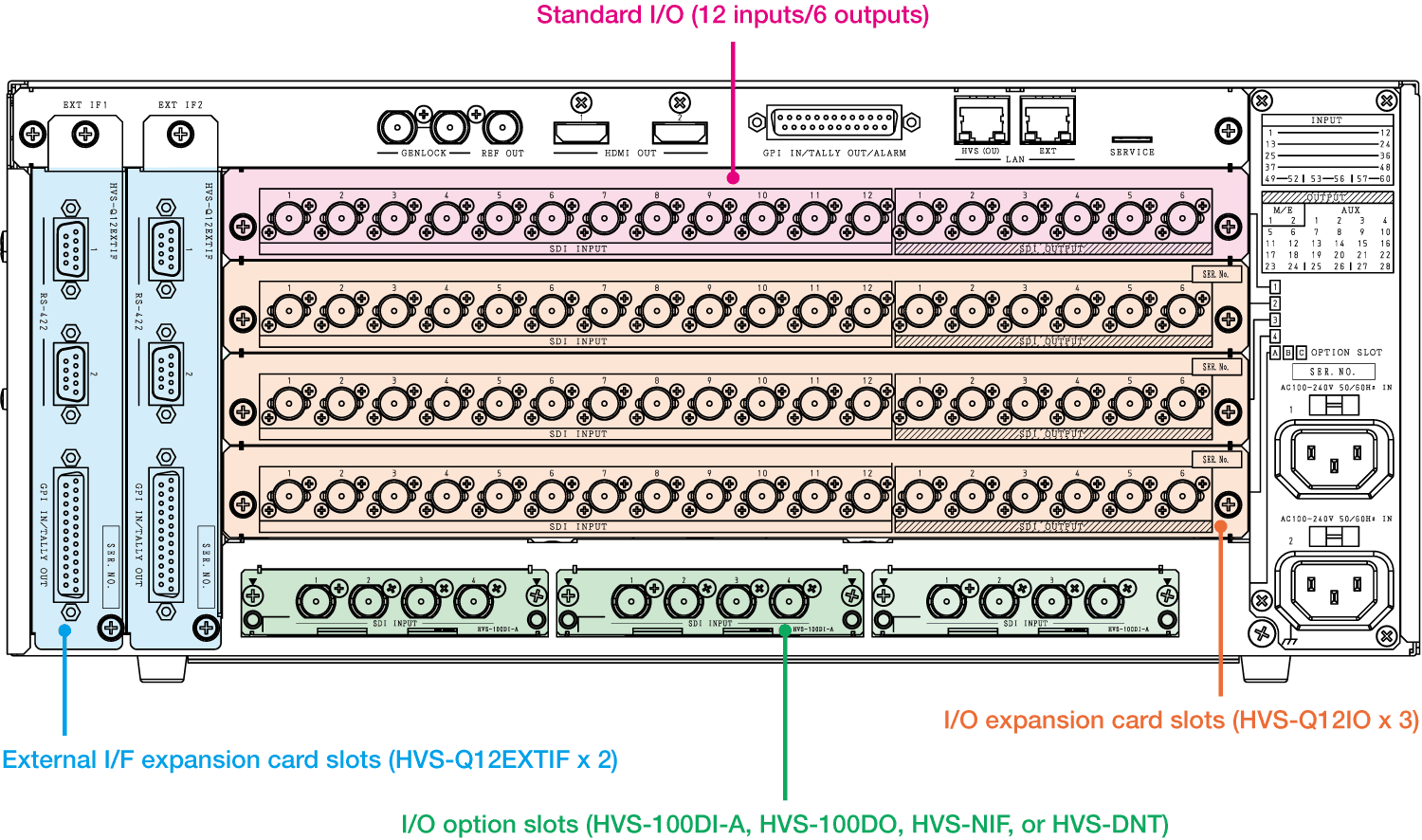

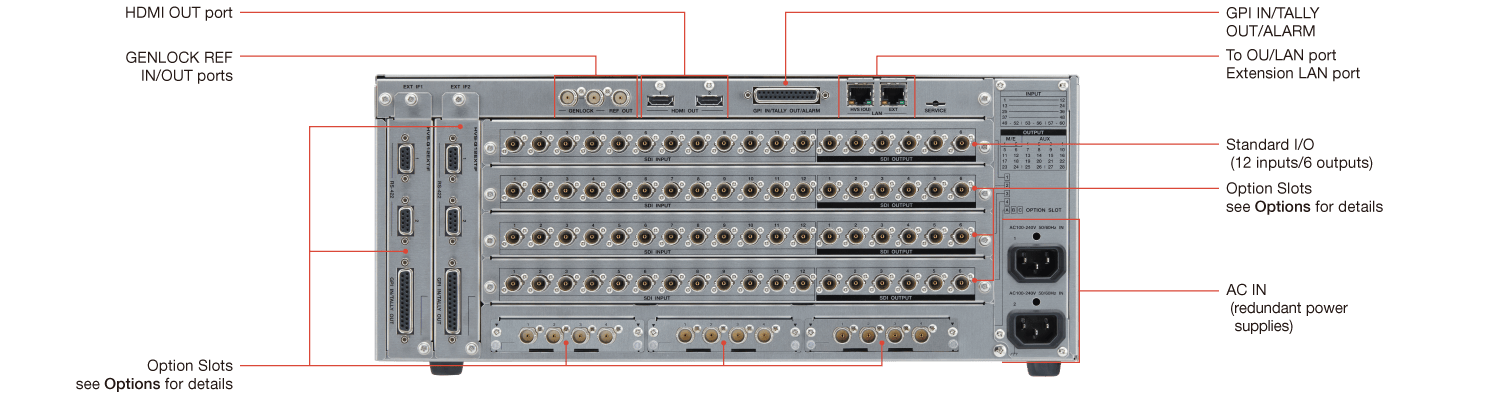

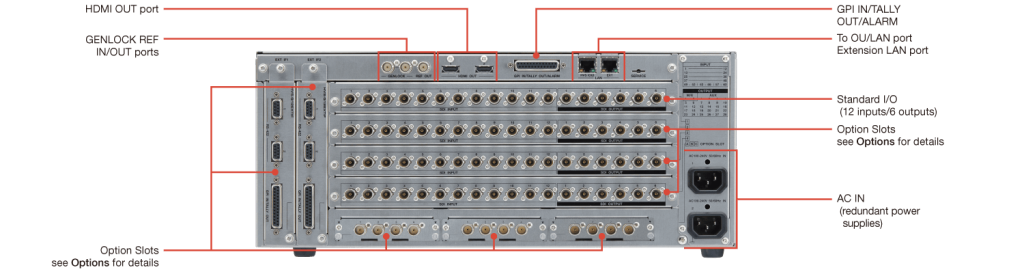

HVS-Q12 rear


Expansion Card

  • - HVS-Q12IO: I/O Expansion Card*1
    - HVS-Q12ME: M/E, Keyer Expansion Card*2
    - HVS-Q12FLX: FLEXaKEY Expansion Card*2
    - HVS-Q12EXTIF: External I/F Expansion Card
  • - HVS-100DI-A: 4 Channel Digital Input Card*3
    - HVS-100DO: 2 Channel Digital Output Card*3
    - HVS-NIF: NDI I/F Card*3
    - HVS-DNT: Dante Audio Card*3

*1 With a 12G-SDI signal, only odd numbers can be used for both input/output for slot 4. All input/output can support 12G-SDI for slots 2 and 3.
*2 HVS-Q12ME and HVS-Q12FLX can be mounted from the front.
*3 HVS-100DI-A/100DO/NIF/DNT can be mixed and up to 3 expansion cards can be mounted.

  • Software

    - HVS-Q12MV1: Multi viewer Software (for MV3)
    - HVS-Q12MV2: Multi viewer Software (for MV4)
    - HVS-Q12UHD: UHD Software
     (for 12G-SDI supports)
    - HVS-Q12CNV: Converter Software
     (for HD to 4K, SDR to HDR)

  • OU panels

    - HVS-492OU
    - HVS-492WOU
    - HVS-491OU
    - HVS-492ROU

Others

- HVS-Q12PSM: Power Supply Unit
- HVS-Q12SSD: SSD Option (for Clip, Still, log.)
- HVA-AUX16A/32A/64A/16B/16C/16D: AUX Bus Control Box
- HVS-TALR32: Tally Control Unit
