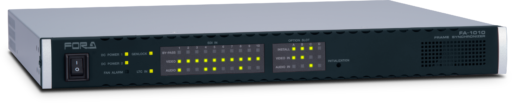

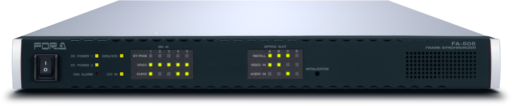

FA-1010

Options

Remote Control Units

FA-10RU

A remote control unit that allows remote operation of almost all FA-1010 functions. A single FA-10RU is able to control up to 100 FA-1010s. In addition, one FA-1010 is able to also be controlled from up to five remote units (including the FA-10DCCRU and FA-1010GUI) simultaneously.

FA-10DCCRU

A remote control unit that allows remote operation of the color corrector functions of the FA-1010. One FA-1010 is able to be controlled from up to five remote units (including the FA-10RU and FA-1010GUI) simultaneously.

External remote panel

FA-AUX30

A remote panel unit that is able to control FA-1010 GPI input/output as well as the FA-10RU and FA-10DCCRU remote control units. Equipped with 30 buttons, the remote panel offers one-touch assignment and activation of common operator functions.

Control unit connection examples

  • Single-unit utilization Ex.1

    The FA-AUX30 can be connected by inserting three optional FA-10GPI cards. Using the FA-AUX30 provides shortcuts to various operations:

    • Crosspoint control of the router
    • Shortcuts to the color correction function, etc.
  • Single-unit utilization Ex.2

    Many operations can be carried out using the FA-10RU remote control panel. Using the FA-AUX30 provides shortcuts to various operations:

    • Crosspoint control of the router
    • Shortcuts to the color correction function, etc.
  • Multi-unit utilization Ex.1

    Multiple units can be controlled using the FA-10RU remote control panel. Using the FA-AUX30 provides shortcuts to various operations:

    • Crosspoint control of each unit's router
    • Shortcuts to each unit's color correction function, etc.
  • Multi-unit utilization Ex.2

    Multiple units can be controlled using the FA-10RU remote control panel. Using the FA-AUX30 provides shortcuts to various operations:

    • Crosspoint control of each unit's router
    • Shortcuts to each unit's color correction function, etc.

Optional cards

  • FA-10AES-BL

    Optional digital audio I/O expansion card. Enables 4 lines (8 channels) of balanced digital audio input and output on a single card. Can be inserted in up to 4 slots.

  • FA-10AES-UBL

    Optional digital audio I/O expansion card. Enables 4 lines (8 channels) of unbalanced digital audio input and output on a single card (channels settable to 8-input/8-output or 4-input/4-output through switching) Can be inserted in up to 4 slots.

  • FA-10AES-UBLC

    Expansion option for the FA-10AES-UBL. Installing this option allows a 16-channel configuration (8-input/8-output). Can only be installed in the optional slot immediately to the right of the FA-10AES-UBL.

  • FA-10ANA-AUD

    Optional analog audio I/O expansion card. Enables 4 channels of balanced or unbalanced audio input and output. Input comes equipped with head amplifier and phantom power functions. Can only be installed in option slot D.

  • FA-10GPI

    Optional GPI I/O expansion card. Enables use of GPI control for system assembly or when a direct FA-AUX30-main unit connection is required. Can be inserted in up to 4 slots.
