Reasons to Buy
True Successors to the World Standard
in Small HD/SD Switchers!
Enhanced Muti-functionality and Unbelievable Cost Performance
The newest additions to FOR-A’s Hanabi series of portable video switchers, the HVS-100 and HVS-110 boast exceptional cost performance. Both mixers inherit and improve upon the diverse functions and features of the popular HVS-300HS, including mixed HD/SD input, frame synchronizing, re-sizing engine, 2.5D wipe effects, DVE, Chroma keyer and DSK. The HVS-100 and HVS-110 also have a built-in Web server that lets you change settings from a PC or a tablet. A clip memory feature has been added to the still store to support playback of video or animations and enhances productions through the use of CG wipes, while the multi-viewer meets a diverse range of monitoring needs. The equipment can be used in all types of locations, including live events, sports, news studios, OB vans, editorial offices and presentation venues, making it the ideal tool for shaping the imaginative ideas of video creators.
HVS-100/110 have many new functions!
4K Square Division (SQD) signal Input/Output available
HVS-100/110 units have been upgraded with new functions described as follows:
- Progressive-format, 4K Square Division (SQD) signal support
- Level-B signal input support at 1080/59.94p, 50p
- Audio playback support
- Additional Non-Border display function support and 4K mode layout on Multi Viewer
- Multi Viewer split patterns significantly enhanced, from 8 to 20 types
- VDCP Over IP protocol available
- External keyer control over DSK-400.
- HVS-100PCI option supports 1080/29.97p, 25p, 24p, 23.98p
- HVS-100PCO option supports 1080/29.97p, 25p, 24p, 23.98p. PC-resolution output also supported at 1080/59.94p and 50p.
For more information on HVS-100/110 new functions, access this link:
To update your HVS-100/110 unit with the latest features, contact your FOR-A sales representative.
Introduction of main features in HVS-100/110
Product Line-up
The HVS-100/110 come in two models: one with separate main unit and control panel, and one with compact, integrated design, both of which can be adapted to a wide variety of applications and operation configurations.
HVS-100: Separated Main Unit/Control Panel Type
HVS-100 (bottom) and HVS-100OU (top)

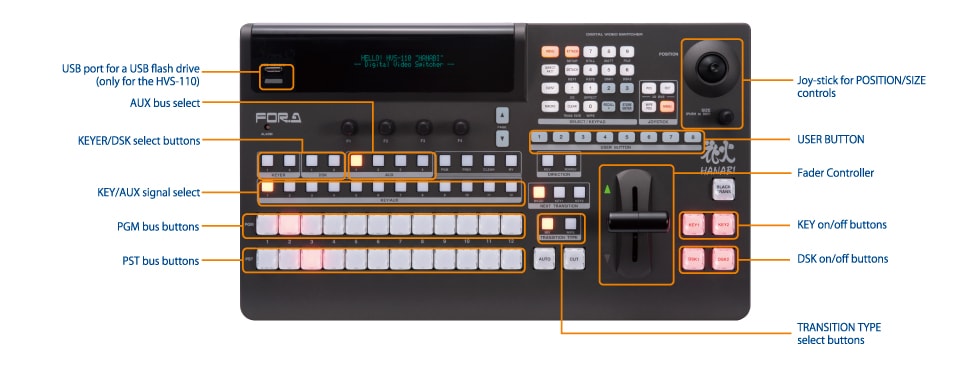

The control panel has been laid out specifically with professionals in mind with a design that leverages the knowledge of expert operators. It includes dedicated bus buttons, AUX buttons, a fader controller and direct user buttons for various functions. The main unit offers exceptional expandability to facilitate the addition of a redundant power source unit and various input/output cards.
HVS-110: Integrated Main Unit/Control Panel Type
Featuring operability almost on par with the HVS-100, the HVS-110 also boasts a compact design enabling simple portability. The inclusion of ample video input and output functionality makes it ideal for use in small broadcasting vans and broadcasting helicopters. Despite being portable, a redundant power source is also possible using an optional AC adaptor.
Reasons to Buy
1.Compact, multi-functional, and very affordable. Unbelievable cost performance!
The compact HVS-100/110 come equipped with multiple, unique functions, never before seen in smaller switchers, offered at the lowest prices ever. Compact, multi-functional units at very affordable prices, all with enhanced performance…. what’s more, the units can be used in all types of locations, including news studios, OB vans, at live events, educational institutions, and for presentations. The HVS-100/110 are perfect for putting your idea into practice.
2.Asynchronous input capability. Frame synchronizer on all inputs
With frame synchronizers on all inputs (HVS-100), you don’t need to provide genlock for any input devices. What’s more, it is easy to add video signals from sources that do not have the ability to genlock like computers or low end cameras. The Frame sync also allow for full proc amp control on any input. For situations where inputs can be genlocked, the frame sync function can be turned off on any individual input. Frame synchronizers and proc amp on all inputs simplify your system.
3.Improved GUI. Control over IP
The HVS-100/110 can be controlled by tablet, Smartphone, and PC via web browser. The GUI screen is based on our easy to-use control panel. What’s more, the switcher can stream any of its output video to the web interface. Up to three types of control can be used simultaneously: Control panel, web interface or any number of aux remotes.
4.Resizing and effects with no limitation. 4 Keyes with 2.5 DVE
2 keyers and 2 DSKs are equipped with dedicated 2.5D DVE. Resize position and effects can be assigned separately for each Keyer. We also provide an assignable chroma key based on FOR-A’s industry leading chroma key technology. FOR-A’s many years of Virtual Studio engineering knowledge allow us to provide a chroma key that rivals the best standalone units on the market. No need for extra chroma keyers in CG creation.
5.2 Still Stores with video playback.
The HVS-100/110 support 2 channels of still store function and each still store can record video files up to 227 frames in length. Still images or video can be captured from any input, imported from USB Memory or through a LAN cable connection. The video function is perfect for logos, animations or CG Wipes. CG wipes can be created easily in the dedicated menu section. In addition, any unused input can be an additional still store using the frame sync function.
6.High-performance and versatile. Multi Viewer for monitoring
The FOR-A HANABI series of video switchers are the first to come equipped with a multi viewer, now an essential function for video switchers. The HVS-100/110 are capable of 2/4/5/7/9/11/16 split multi viewer. Input/ Output sources can be displayed freely with title, tally, and audio level.
7.Great for multi screen stage events. Advanced AUX
Multiple AUX outputs can be used more than just for monitoring. The HVS-100 and HVS-110 provide the ability to assign DSK to AUX outputs for keying and dissolve or cut between sources. One small switcher can provide all the different outputs for a large live staging event or a broadcast with multiple on-set displays.
8.Stage event recalling with effects. Event memory with recall transition interpolation function
The HVS-100/110 are capable of memorizing up to 100 events including parameters, key, and DVE functions. Any memory can be re-called from the memory section or assigned to a user button for quick recall. Parameters are automatically interpolated while an event is recalled to provide a smooth transition. In addition to the event memory, a variety of system memories allow for the full switcher set-up to be recalled. This function is perfect for recalling operators preferred settings or switching between different productions.
9.Powerful Macro function
The powerful macro function allows a series of operations on the control panel to be memorized in real-time. This means a complex series of keys and transitions can be rehearsed, and then learned by the switcher as a Macro. After that a one button trigger can perform the macro. The HVS-100 and HVS-110 are probably the least expensive switchers ever to offer a Macro function.
10.In case…. Redundant Power Supply (optional)
Fault tolerance is an important factor in choosing your switcher, no matter how small the switcher is. We only employ consumables such as power units and cooling fans that meet our strict quality control standards. FOR-A uses the highest quality power supplies, but having an option for redundancy provides peace of mind.
11.Input/ Output expansion options for a perfect system
The HVS-100 has 3 slots to expand the number of inputs or outputs. In addition to 8 HD-SDI inputs, 4 HD-SDI outputs and 1 HDMI output (standard), various inputs or outputs can be added including HD/SD-SDI, analog composite/ component or, RGB/ HDMI. These option cards can be used to customize your switcher or provide for future expansion.
12.The future… 3G and 4k upgrades
Systems supporting 3Gbps 1080/59.94p or 50p are becoming a viable option to consider as we head towards a higher-resolution 4K era. The HVS-100 and HVS-110 have been designed to offer future upgrades to 3G (1080P) and even 4K operation. Buy your switcher for today, but be ready for the future.
Features
HVS-100/110 has many new functions!
4K Square Division (SQD) signal Input/Output available
Progressive-format, 4K Square Division (SQD) signal support
HVS-100/110 units already support Progressive Segmented Frame formats such as 1080/29.97PsF, 25PsF, 23.98PsF, 24PsF. Support for additional progressive formats, 1080/29.97p, 25p, 23.98p, 24p, has been added.
HVS-100/110 is now able to use 4K camera Square Division (SQD) signals on 29.97p, 25p, 23.98p and 24p, without HVS-100EXP3G optional software.
Level-B signal input support at 1080/59.94p, 50p
HVS-100/110 have a new Level-B/A converter function on input signals that allows Level B of 3G-SDI signals to be input onto 1080/59.94p, 50p signals.
Level-A and Level-B signals are combined to system equipment on the input-side of the switcher, which converts Level-B signals to Level-A, and outputs all signals as Level-A. (Output-side fixed as Level-A.)
Audio playback support
Play back clips with audio. Sound effects can be mixed on switched videos using CG-Wipe effects.
To utilize this function, download the audio data to the HVS-100/110 in advance.
Additional Non-Border display function support and 4K mode layout on Multi Viewer
Selection of Non-Border Muti-Viewer function is now supported.
In 4K mode, Square Division (SQD) signal able to assign each quarter window, and display the 1080p Re-sized output.
In 16-part layout mode, maximum four 4K video images are able to be monitored simultaneously via display.
Multi Viewer split patterns significantly enhanced, from 8 to 20 types
Multi Viewer windows enhanced from 8 patterns to 20 patterns. Now able to select from 2 to 16 part windows.
VDCP Over IP protocol available
Support for VDCP Over IP protocol allows video server control via a LAN connection.
HVS-100PCI option supports 1080/29.97p, 25p, 24p, 23.98p
The HVS-100PCI PC (HDMI/VGA) input expansion card option is also now available for PC input at system video formats of 1080/29.97p, 25p, 24p or 23.98p. Click here for corresponding format and refresh rate details.
HVS-100PCO option supports 1080/29.97p, 25p, 24p, 23.98p. Also PC-resolution output supports at 1080/59.94p and 50p formats.
The HVS-100PCO PC (HDMI/VGA) output expansion card option also supports PC output at 1080/29.97p, 25p, 24p, and 23.98p in system video formats.
In addition, even in a progressive system video format, 1080/59.94p or 50p, PC resolution can now be output. Click here for corresponding format and refresh rate details.
External keyer control over DSK-400
HVS-100/110 are now able to control the DSK-400 (supports 4K (UHD)). A compact system can be built to operate a DSK-400 using only an HVS-100/110 controller.
Standard 8, Maximum 14 Inputs; Standard 4 + 1, Maximum 9 outputs (HVS-100) 12 Inputs; 8 + 1 Outputs (HVS-110)
HVS-100
8 HD/SD-SDI inputs, 4 HD/SD SDI outputs and 1 HDMI output come as standard. Mixed HD/SD input is supported in the standard configuration. The 5 outputs can all be freely assigned. Three slots enable various inputs and outputs to be added, such as analog component, analog composite, HDMI, and VGA in addition to more HD/SD-SDI.
HVS-110
12 HD/SD SDI inputs, 8 HD/SD-SDI outputs and 1 HDMI output come as standard. Mixed HD/SD input is supported in the standard configuration. The 9 outputs can all be freely assigned.
Frame Synchronizers
Every input in the HVS-100 and 8 inputs in the HVS-110 are fitted with frame synchronizers that enable switching of synchronous and asynchronous video signals. Installation of optional expansion cards supports asynchronous picture input from PCs, etc. Each input is also equipped with a process amplifier capable of adjusting the video level and chroma level, etc. of the input signal.
Re-sizing Engine
Up-resizing engines are provided on 4 of the standard inputs. This achieves a fully mixed SD/HD environment with the switcher alone. The optional input cards also have re-sizing engine. This is readily suitable for re-sizing not only SD signals but also PC video.
2 Keyers and 2 DSKs
Further proof of the power of these new small mixers is that they come as standard with 2 keyers, 2 DSKs and 4 powerful 2.5D DVE engines. An advanced, high quality Chroma keyer can be assigned to any one of the two M/E Keyers or two Downstream Keyers. The 4 powerful DVE engines, can be assigned to any keyer or used for transitions etc, and with their standard 2.5D ability, allows flexible creativity for the operator to enhance productions.
Abundant Transitions and DVEs
Cut, mix and wipe can be chosen for the transition. Diverse DVE wipes include 100 2.5D wipe patterns. Along with wipes, effects like mosaic and defocus are also provided.
2 Still/Clip Stores
Powerful, high capacity clip stores are now a standard feature. Each store can hold up to 227 frames of HD video. Images can be recorded and played back from incoming video or PGM o/p, or animations transferred over FTP (.bmp, .jpeg, .tga sequences). Clip store images can be used as CG wipe transitions, to further enhance possibilities and add production value. In addition, should both stores be used for clips, then still images can still be used as well, by the standard feature of using some of the inputs as still stores.
20 kinds of multi-viewer split patterns able to be selected as standard.
Display channels can be freely assigned, allowing assignment of not only input source but also PGM output. Each channel offers title display and tally display functions.
Event Memory and User Button
The main unit is equipped with an event memory function allowing up to 100 events to be stored. Event memories can be simply recalled by the user buttons. Mixer set-ups and useful operational tools such as key set up, DVE position/size etc can all be stored in event memories. Operators can freely set the transition time and effect for loading events. By setting up in advance, event memories can bring extra power and creativity, simply by pressing buttons during the live event. User buttons can also be used for many other features, such as instant navigation to a selectable menu page, or grab a still, or send a GPI, or preview a key etc as well as many other functions to make life easier in a live production.
Macro Function
A macro function enables you to store and register a series of operations and then perform complicated operations with one push of a button.
Freely Assignable DSK
The 2 Downstream keyers can be assigned to either the M/E PGM, M/E PST or an AUX output. As we also include the ability to mix on an Aux crosspoint selection, the Aux outputs can effectively and creatively be used to do away with the need for multiple M/Es, when creating different outputs for different screens or feeds at a live venue.
External Interfaces
External interfaces include GPI port supporting up to 24 inputs/outputs and two RS-422 ports as standard. The RS-422 ports support for connecting an HVS-30RU remote unit, tally expansion boxes, device specific VDCP, VTR, MFR routers, or TSL. An Ethernet port is used during PC control. An editor interface option allow to connect to an editor/automation system or other external control system.
GUI Control Function via Web Browser
An in-built Web server enables the settings of the HVS-100 and HVS-110 to be changed from a PC via a network. Mobile and tablet terminals can also be used through a wireless access point.
Redundant Power Supply
An optional redundant power supply unit enables doubling-up of power source (redundant AC adaptor for the HVS-110). An enlarged fan and improved exhaust process guarantee quiet operation.
4K (Ultra-HD) Switcher Capability
The HVS-100 and HVS-110 can be used as 4K switchers with HVS-100EXP3G. HVS-100 supports 2 inputs/1 output (expandable to 3 inputs/2 outputs with optional Input/Output cards). HVS-110 supports 3 inputs/2 outputs. In conjuction with MFR series, 4K input channels can be expanded. Cut and mix are provided as transitions.
Other
- Safety area marker display
- Color bar generator
- Mat generator, etc.
The below features can be performed with the HVS-100/110
HVS-100/110 High-quality chroma keying
Key compositing to AUX, fade transitioning,
simultaneous linked output operation
Multi-displays easily achieved
Easily implement animations that straddle the screens
Can be controlled from PC/tablet
as standard feature (Operable without control panel)
GUI control reproduces the same operational feeling as via control panel
Clearly visible DVE parameter settings on GUI
Easily adjust border colors on GUI
Switch source images in one touch in Direct mode
Allows safe switching without operational errors, such as parameter changes.
Remote control example using Web GUI
Web GUI allows remote control anywhere, from any location.
Input source names and tally link systems via TSL protocol
Easily control crosspoints, integrate source names and link tallies by integrating MFR Series routing switchers and MV Series multiviewers.
Applications
1.Small mobile and Up-Link production trucks
The compact HVS-100/110 are perfect for small mobile video production or Up-Link where the space is limited. These switchers offer a rich feature set perfect for live or recorded production. With integrated frame synchronizers and multi viewer, the HVS-100/110 can reduce the amount of equipment required in the truck. The included web control offers new possibilities for control, including remote control of the switcher over IP.
2.Live staging / Event production
The combination of the HVS-100/110’ portability and rich feature set makes them the best suited switchers for live applications where systems need to be set up temporarily in a short time. Advanced AUX allows multiscreen staging with effects. You can reduce the number of switchers and streamline system operation, keeping everything simple and easy for everyone.
3.Small broadcasting environments
The HVS-100/110 can be the main switcher for: Small Broadcasting Stations, cable TV stations, Internet television providers and satellite studios. The advanced features and programmability of HVS-100/110 allow you to create high quality content without any compromise. FOR-A’s manufacturing quality ensures a reliable solution for live programming.
4.House of Worship
The HVS-100/110 are ideal switchers for House of Worship where easy operation and multi-screen production is required. Easy and simple operation on the control panel or intuitive GUI will allow seasoned operators or volunteers to produce excellent results. Lyrics can be shown in different languages on sub screens from the main screen using the advanced AUX function. You do not need to be a professional operator to create attractive and impressive video production scenes, if you have the HVS-100/110 system.
5.Sub screens
For large studios with on-set monitors or projection systems, the HVS-100/110 can provide an easy method to send content to several monitors with individual keying and advanced transitions. Instructional, reference and other types of images can be displayed on studio monitors for studio audiences. Advanced AUX allows different characters to be displayed over multiple monitors, or images to be switched with different transitions.
6.Flypack
The HVS-100/110 are the perfect solution for Flight Pack system due to their small size and reliability in a tough environment. The switchers built in frame syncs and multi viewer means fewer items are required in a compact system. Our advanced features including 4 keyers, chroma key and 4 DVEs means a portable system can rival a full studio production.
7.Multi Channel delivery
Major Broadcasters who provide internet based ‘second screen’ content for major events will love this series of switchers. The assignable keys with individual sizing means individual program or AUX outputs can be scaled for different resolutions including: smartphone, computer, tablet or television. In addition, multiple panels can be connected to HVS-100/110 units via web browser and each screen separately controlled.
8.Corporate production
Many scenes in a corporate environment require the use of video production equipment such as at product launch events or general board meetings. Putting together full-featured systems involving huge budgets as well as hiring professional operators should be avoided. The HVS-100 optional computer input card allows PowerPoint and other computer presentations to be easily integrated with live cameras. Animated logos and advanced CG wipes can add a professional polish to corporate events.
9.Education
As classroom teaching material or video system equipment in auditoriums or presentation facilities, video production equipment can now be found everywhere in educational institutions. The affordable price point, compactness and ease-of-operation of HVS-100/110 video switchers make them the ideal solution for educational purposes, without the need for professional operators to ensure smooth operation.
10.4K production
Heading toward the fast-approaching 4K era, are you having a difficult time deciding on products to purchase today? The answer lies in HVS-100/110 HD/SD-SDI switchers that support 4K upgrades. You can use the units as HD/SD-SDI switchers in your current system and when the 4K requirement arrives, just upgrade the system to 4K. Moreover, even in a 4K system, the units can be used as an emergency switcher. We guarantee our HVS-100/110 switchers will always provide you with everything you need under any environment.
Testimonials
Dana Healy: Danvers Community Access Television
When Massachusetts’ Danvers Community Access Television (DCAT) recently upgraded its studio facility to high definition, the station did not take the task of ordering new equipment lightly. After extensive research, trade show attendance, and taking suggestions from peers, Dana Healy, the station’s executive director, found herself completely sold on FOR-A’s HVS-100 portable video switcher. DCAT began using the switcher in its new studio last month.
“I was adamant in wanting a classic studio switcher that could stand the test of time, and I became enthralled with the HVS-100,” said Healy. “It’s a simple, yet powerful unit. I’m confident that the switcher can handle the slews of middle-school aged children as well as beginner producers that will be using it here for years to come.”
Other productions that Custom Media Solutions has used FOR-A’s switchers for include: the Delta Chairman’s Club Banquet at the Fox Theater in Atlanta, Christian music artist Chris Tomlin’s tour, a conference at the University of Tennessee, Passion City Church events, DVD shoots for artists Montel Jordan and Hillsong UNITED, events at the Verizon Wireless Amphitheater, productions for the Atlanta Symphony Orchestra and North Point Community Church’s student camps.
DCAT is a 3,000-square foot non-profit television station overseen by Healy and three other employers. The station provides training and offers its facility for local programming production.
“In learning how to operate the unit, there has been a learning curve since the switcher offers so many options, but we are very happy with the workflow,” Healy explained. “Our FOR-A sales representative, Jay Shinn, was very helpful and demonstrated the equipment to us in an easy to understand way.”
Healy added, “One of the features we’ve been taking advantage of often is the unit’s green screen options, which are very powerful and create a nice, clean key.“
Greg Gardner: Sun Valley Community Church
When Arizona-based Sun Valley Community Church made the jump from SD to HD production in its Gilbert campus three years ago, the house of worship began using FOR-A’s HVS-300HS video switcher. Last fall, the church was faced with the decision of purchasing a new switcher for its nearby location in Tempe. Pleased with the ease of use and performance delivered by its FOR-A switcher, Sun Valley chose another FOR-A switcher to get the job done ? the HVS-100. The house of worship has been successfully using its HVS-100 portable video switcher since September 2013.
“Because we’ve been very happy with our HVS-300HS switcher, it was a simple choice to stay within the FOR-A family for our next switcher purchase,” said Greg Gardner, Sun Valley’s Video Technical Director. “We decided on the HVS-100 because of the new features that it offers, such as having the flexibility to assign one of the keys to any of the AUX channels, and the ability to reposition and resize the key as desired.”
Sun Valley uses its new HVS-100 during services every weekend at its 1,300-seat location in Tempe. The church has been taking advantage of the ability to log in to the switcher via a Web browser on a laptop, smart phone, or iPad to control all aspects of the unit remotely.
“FOR-A’s switchers provide great ease of use,” explained Gardner. “The bottom line for me is that the reliability of the products and customer support from FOR-A has been phenomenal.”
Bob Bolling: RBL Engineering
California-based RBL Engineering is one of many video production companies that count on the FOR-A HVS-110 switcher. Part of RBL Engineering’s business is corporate AV event production. The company has been relying on the HVS-110 for its multi-camera productions since last fall, and they recently purchased another HVS-110 switcher for upcoming projects.
“Portability was a key consideration for us in choosing this switcher,” said company president Bob Bolling. “The size of the HVS-110 was a major plus, as we need to be able to easily transport the unit. The HVS-110 is the only switcher in its price range that enables dissolve for screen switch, and we appreciate being able to have one switcher control eight outputs with different sources. Its 1080p upgradeable option was also a big perk, as we were looking for a future-proof switcher.”
RBL Engineering recently used the HVS-110 for camera switching at a keynote to an audience of 5,000 in San Jose, CA. The RBL Engineering team also took the HVS-110 on a plane to Hong Kong to provide I-MAG support and live streaming.
DCAT is a 3,000-square foot non-profit television station overseen by Healy and three other employers. The station provides training and offers its facility for local programming production.
Marc Shroyer: Custom Media Solutions, Inc.
Specializing in high-quality live and post production services, Custom Media Solutions has been depending on FOR-A video switchers to meet its production needs in recent years. The Georgia-based firm first purchased a FOR-A HVS-300HS switcher in 2011, bought an HVS-350HS switcher when they transitioned to full HD, and later became a user of FOR-A’s HVS-110 portable switcher.
“We have been extremely satisfied with our purchase of the FOR-A HVS-110 Production switcher,”said Marc Shroyer, owner and founder of Custom Media Solutions.“We have used it for a number of events including the Chris Tomlin concert tour where it was used to drive 2 screens at different aspect ratios that needed to have different content and keys. Thanks to the keying over auxes and DVE’s on every keyer capability, we were able to make that happen. The 4 Keyers with 4 DVE’s have been very useful in a weekly production we are doing for a local church where they also need to feed 2 screens with different content and aspect ratio’s. There is no other switcher on the market for the price point that will accomplish many of the features that we use every week with the HVS-110. We love not having to tell a client“NO” or tell them they have to spend more money on something better when they ask for something crazy. There is nothing we have been asked to do from a client that we have not been able to achieve. FOR-A is our secret weapon that keeps our happy clients calling us back every time.”
Other productions that Custom Media Solutions has used FOR-A’s switchers for include: the Delta Chairman’s Club Banquet at the Fox Theater in Atlanta, Christian music artist Chris Tomlin’s tour, a conference at the University of Tennessee, Passion City Church events, DVD shoots for artists Montel Jordan and Hillsong UNITED, events at the Verizon Wireless Amphitheater, productions for the Atlanta Symphony Orchestra and North Point Community Church’s student camps.
“We’ve been continuously pleased with our FOR-A equipment and the quality it brings to our productions,“Shroyer explained.”Our switchers have helped us to provide our customers with top notch, cutting edge video productions at very competitive prices.”
Omied Far: University of California, Berkeley
“I appreciate the ease of use that the HVS-100 affords. I’ve quickly learned the ins and outs of the switcher, and it helps me to provide smooth, live video to viewers around the world.”
Videos
Introduction of main features in HVS-100/110
Options
Options for the HVS-100
With the HVS-100, you can add just the input and output formats you need, in just the amount needed. There are three expansion slots so that other inputs and outputs can be installed, such as analog component, analog composite, HDMI and RGB in addition to HD/SD-SDI.
HVS-100DI-A: 4 Channel Digital Input Card
4 channels of HD/SD-SDI input are possible with a single card. A frame synchronizer function for all inputs and re-size (expansion) function for 2 inputs are provided. SD images can be processed internally as HD images.
HVS-100DO: 2 Channel Digital Output Card
2 channels of HD/SD-SDI output are possible with a single card. As down-converters are provided for all outputs, HD and SD images can simultaneously be output.
HVS-100AI: 2 Channel Analog Input Card
2 channels of analog video signal input are possible with a single card. Input terminal 2 is a dedicated connector (conversion connector supplied). The user can select between analog composite and analog component (HD or SD) input for each input terminal.
HVS-100AO: 2 Channel Analog Output Card
2 channels of analog video signal output are possible with a single card. Output terminal 2 is a dedicated connector (conversion connector supplied). The user can select between analog composite and analog component (HD or SD) output for each output terminal.
HVS-100PCI: 2 Channel VGA/HDMI Input Card
HDMI and VGA terminals have been mounted onto a single card. 2 input channels are possible using both.
Resolutions supported by the input cards HD mode* 1080/59.94p 1024 x 768/60Hz (XGA), 1280 x 1024/60Hz (SXGA), 1280 x 768/60Hz (WXGA), 1600 x 1200/60Hz (UXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/59.94p (HDTV) 1080/50p 1024 x 768/60Hz (XGA)**, 1280 x 1024/60Hz (SXGA)**, 1280 x 768/60Hz (WXGA)**, 1600 x 1200/60Hz (UXGA)**, 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/50p (HDTV) 1080/29.97p 1920 x 1080/29.97p (HDTV) 1080/25p 1920 x 1080/25p (HDTV) 1080/24p 1920 x 1080/24p (HDTV) 1080/23.98p 1920 x 1080/23.98p (HDTV) 1080/59.94i 1024 x 768/60Hz (XGA), 1280 x 1024/60Hz (SXGA), 1280 x 768/60Hz (WXGA), 1600 x 1200/60Hz (UXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/59.94i (HDTV) 1080/50i 1024 x 768/60Hz (XGA)**, 1280 x 1024/60Hz (SXGA)**, 1280 x 768/60Hz (WXGA)**, 1600 x 1200/60Hz (UXGA)**, 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/50i (HDTV) 1080/29.97PsF 1024 x 768/60Hz (XGA), 1280 x 1024/60Hz (SXGA), 1280 x 768/60Hz (WXGA), 1600 x 1200/60Hz (UXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/29.97PsF (HDTV) 1080/25PsF 1024 x 768/60Hz (XGA)**, 1280 x 1024/60Hz (SXGA)**, 1280 x 768/60Hz (WXGA)**, 1600 x 1200/60Hz (UXGA)**, 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/25PsF (HDTV) 720/59.94p 1024 x 768/60Hz (XGA), 1280 x 1024/60Hz (SXGA), 1280 x 768/60Hz (WXGA), 1280 x 720/59.94p (HDTV) 720/50p 1024 x 768/60Hz (XGA)**, 1280 x 1024/60Hz (SXGA)**, 1280 x 768/60Hz (WXGA)**, 1280 x 720/50p (HDTV) SD mode 625/50i 640 x 480/60Hz (VGA)**, 800 x 600/60Hz (SVGA)**, 1024 x 768/60Hz (XGA)**, 720 x 576/50i (SDTV, PAL) 525/60i 640 x 480/60Hz (VGA), 800 x 600/60Hz (SVGA), 1024 x 768/60Hz (XGA), 720 x 480/60i (SDTV, NTSC) * HDCP-incompatible
** Video signal disturbances may occur in 25 or 50 system frame rate formats, when Input images are played at a 60Hz refresh rate.
HVS-100PCO: 2 Channel VGA/HDMI Output Card
HDMI and VGA terminals have been mounted onto a single card. 2 output channels are possible using both.
Resolutions supported by the output cards HD mode* 1080/59.94p 1280 x 1024/60Hz (SXGA), 1600 x 1200/60Hz (UXGA), 1680 x 1050/60Hz (WSXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/59.94p (HDTV) 1080/50p 1280 x 1024/60Hz (SXGA)**, 1600 x 1200/60Hz (UXGA)**, 1680 x 1050/60Hz (WSXGA) **, 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/50p (HDTV) 1080/29.97p 1280 x 1024/60Hz (SXGA), 1600 x 1200/60Hz (UXGA), 1680 x 1050/60Hz (WSXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/29.97p (HDTV) 1080/25p 1280 x 1024/60Hz (SXGA)**, 1600 x 1200/60Hz (UXGA)**, 1680 x 1050/60Hz (WSXGA)**, 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/25p (HDTV) 1080/24p 1920 x 1080/24p (HDTV) 1080/23.98p 1920 x 1080/23.98p (HDTV) 1080/59.94i 1280 x 1024/60Hz (SXGA), 1600 x 1200/60Hz (UXGA), 1680 x 1050 /60Hz (WSXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/59.94i (HDTV) 1080/50i 1280 x 1024/50Hz (SXGA), 1280 x 1024/60Hz (SXGA)**, 1600 x 1200/50Hz (UXGA), 1600 x 1200/60Hz (UXGA)**, 1680 x 1050/50Hz (WSXGA), 1680 x 1050/60Hz (WSXGA)**, 1920 x 1200/50Hz (WUXGA), 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/50i (HDTV) 1080/29.97PsF 1280 x 1024/60Hz (SXGA), 1600 x 1200/60Hz (UXGA), 1680 x 1050 /60Hz (WSXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/29.97PsF (HDTV) 1080/25PsF 1280 x 1024/50Hz (SXGA), 1280 x 1024/60Hz (SXGA)**, 1600 x 1200/50Hz (UXGA), 1600 x 1200/60Hz (UXGA)**, 1680 x 1050/50Hz (WSXGA), 1680 x 1050/60Hz (WSXGA)**, 1920 x 1200/50Hz (WUXGA), 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/25PsF (HDTV) 720/59.94p 1280 x 1024/60Hz (SXGA), 1280 x 768/60Hz (WXGA), 1280 x 720/59.94p (HDTV) 720/50p 1280 x 1024/50Hz (SXGA), 1280 x 1024/60Hz (SXGA)**, 1280 x 768/50Hz (WXGA), 1280 x 768/60Hz (WXGA)**, 1280 x 720/50p (HDTV) SD mode 625/50i 800 x 600/50Hz (SVGA), 800 x 600/60Hz (SVGA)**, 720 x 576/50i (SDTV, PAL) 525/60i 800 x 600/60Hz (SVGA), 720 x 480/60i (SDTV, NTSC) * HDCP-incompatible
** Video signal disturbances may occur in 25 or 50 system frame rate formats, when Output images are played at a 60Hz refresh rate.
HVS-100PSM/100PSO : Redundant Power Supply Unit
- HVS-100PSM: For the HVS-100
- HVS-100PSO: For the HVS-100OU Control Panel
Options for the HVS-110
HVS-110PSM: Redundant Power Supply Unit
For the HVS-110
EIA Rack Mount Brackets
Options for the HVS-100 and 110
HVS-TALOC32/TALR32: Tally Control Unit (via RS-422)
HVS-TALOC32
Open collector type HVS-TALOC32 or relay type HVS-TALR32 can be connected. They are both half-rack size, and up to 3 units can be connected to the HVS-100 or HVS-110.
- HVS-TALOC32: open collector type with 32 terminals
- HVS-TALR32: relay type with 32 terminals
HVS-AUX16A/AUX16C/AUX32A/AUX64A: AUX Bus Control Box (Ethernet connection)
HVS-AUX16A / HVS-AUX16C / HVS-AUX32A / HVS-AUX64A (from top to bottom)
AUX bus control box with either 16, 32 or 64 buttons. The 16-button control boxes and the 32-button control box are 1RU in size and the 64-button control box is 2RU in size. 5 AUX bus control boxes can be daisy-chained via Ethernet.
HVS-AUX16B/AUX16D: Desktop Type of AUX Bus Control Box (Ethernet connection)
left: HVS-AUX16B / right: HVS-AUX16D
Desktop type of AUX remote control boxes with 16 buttons.
HVS-100ARC: Arcnet I/F Card
This enables connection to HVS-AUX8/AUX16/AUX32*.
*For details, contact your FOR-A dealer.HVS-100EXP3G: 3Gbps Expansion Software
Software to support 1080p format and 4K square division transmission methods.
HVS-100ED: Editor Control Software
Interface software to connect with an external device that supports BVS-3000/DVS and GVG-100 protocols.
HVS-100VR: Virtual Link Software
Software for establishing a link between FOR-A Virtual System and HVS-100/110 to build a compact virtual studio system comprised of multiple cameras and small number of CG/combine processors.
HVS-100IS: Infinity Set Link Software
Software to add support to connect HVS-100/110 to PC installed InfinitySet* and switch videos from InfinitySet via HVS-100/110 control panel.
*Advanced Virtual Set Solution developed by Brainstorm.
Details
Product Details

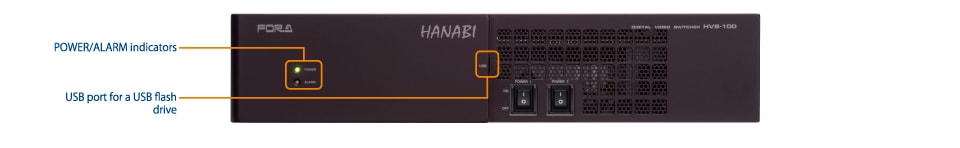

HVS-100OU/HVS-110 Front View

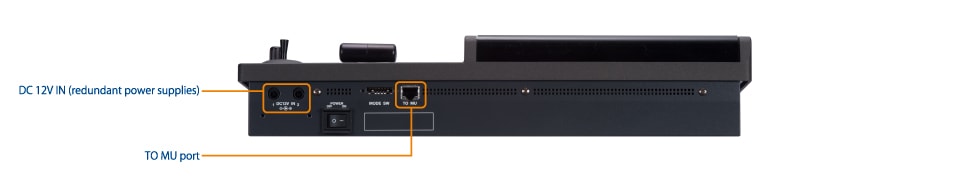

HVS-100OU Rear View

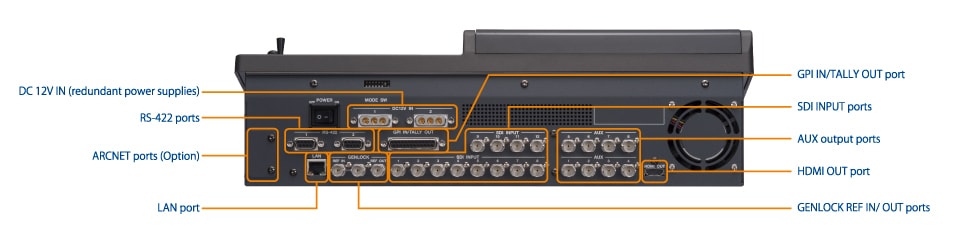

HVS-110 Rear View
HVS-100 Front View

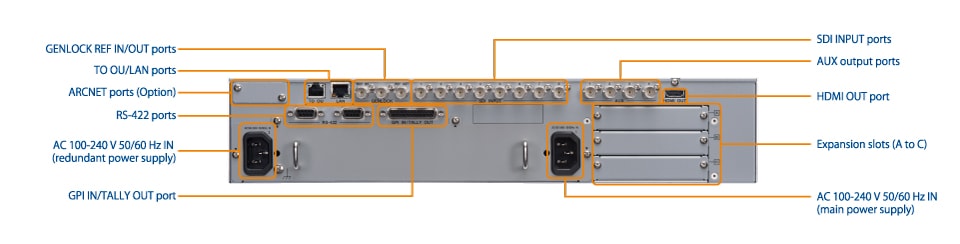

HVS-100 Rear View
Dimensions

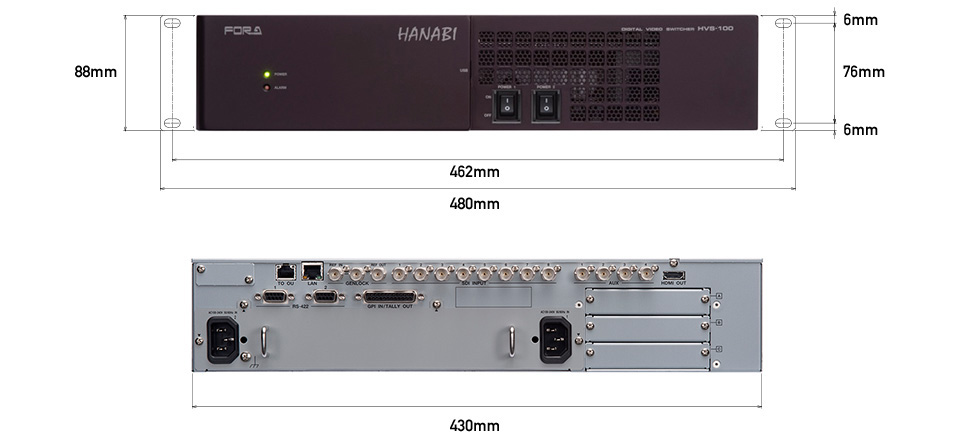

HVS-100 Main Unit

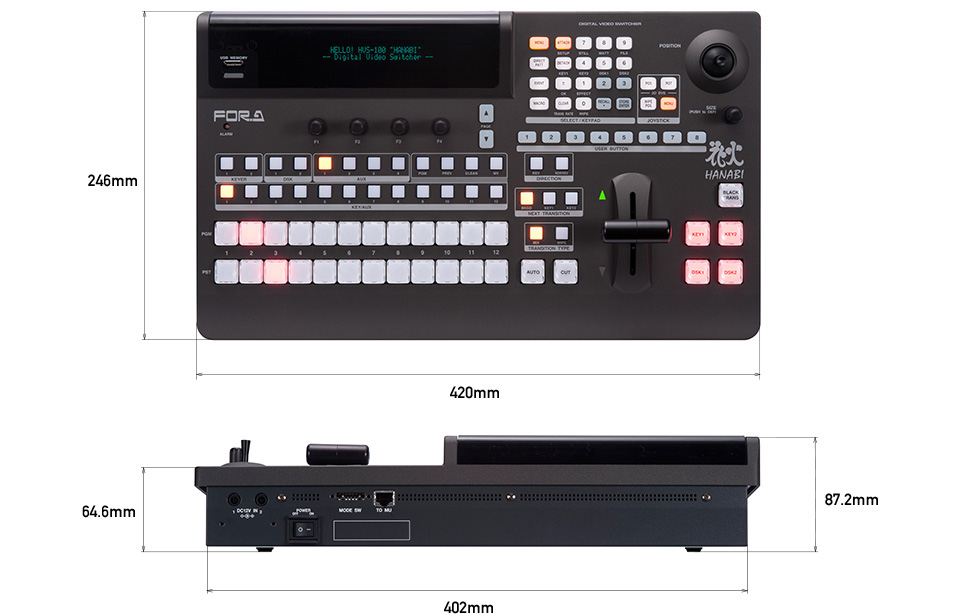

HVS-100OU (HVS-100 Control Panel)

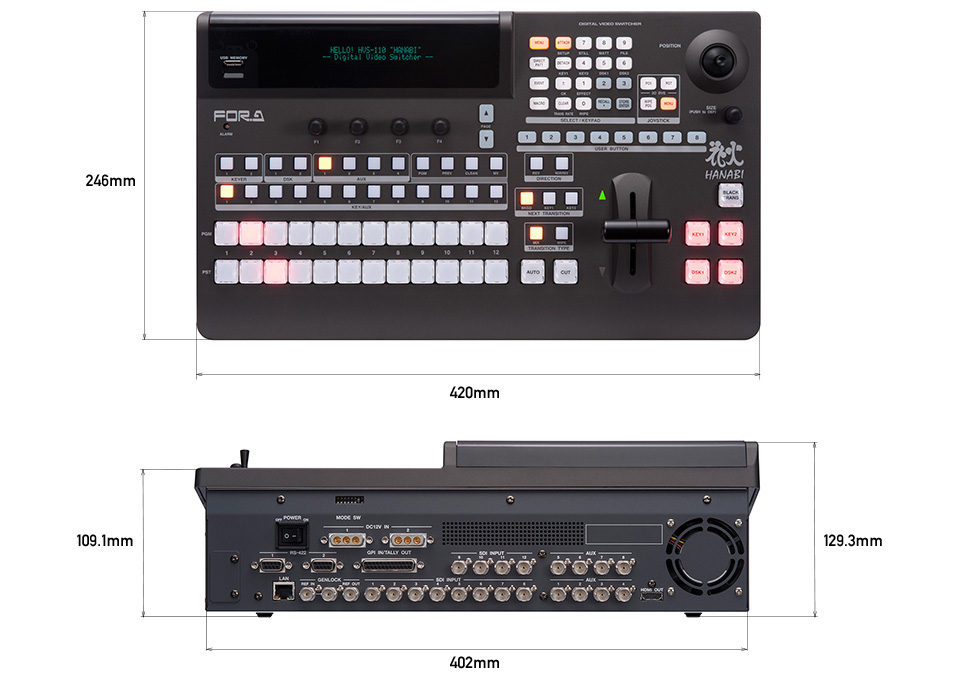

HVS-110
