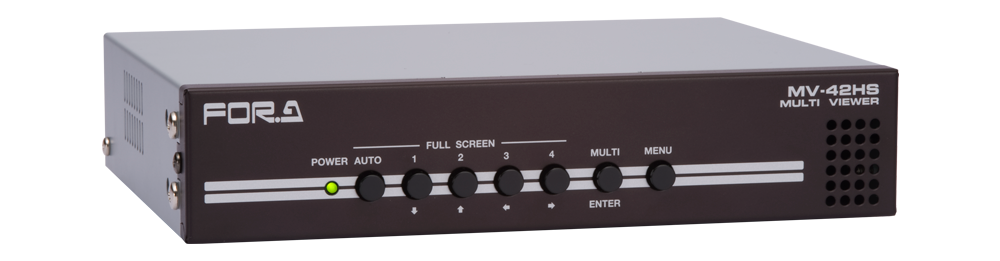

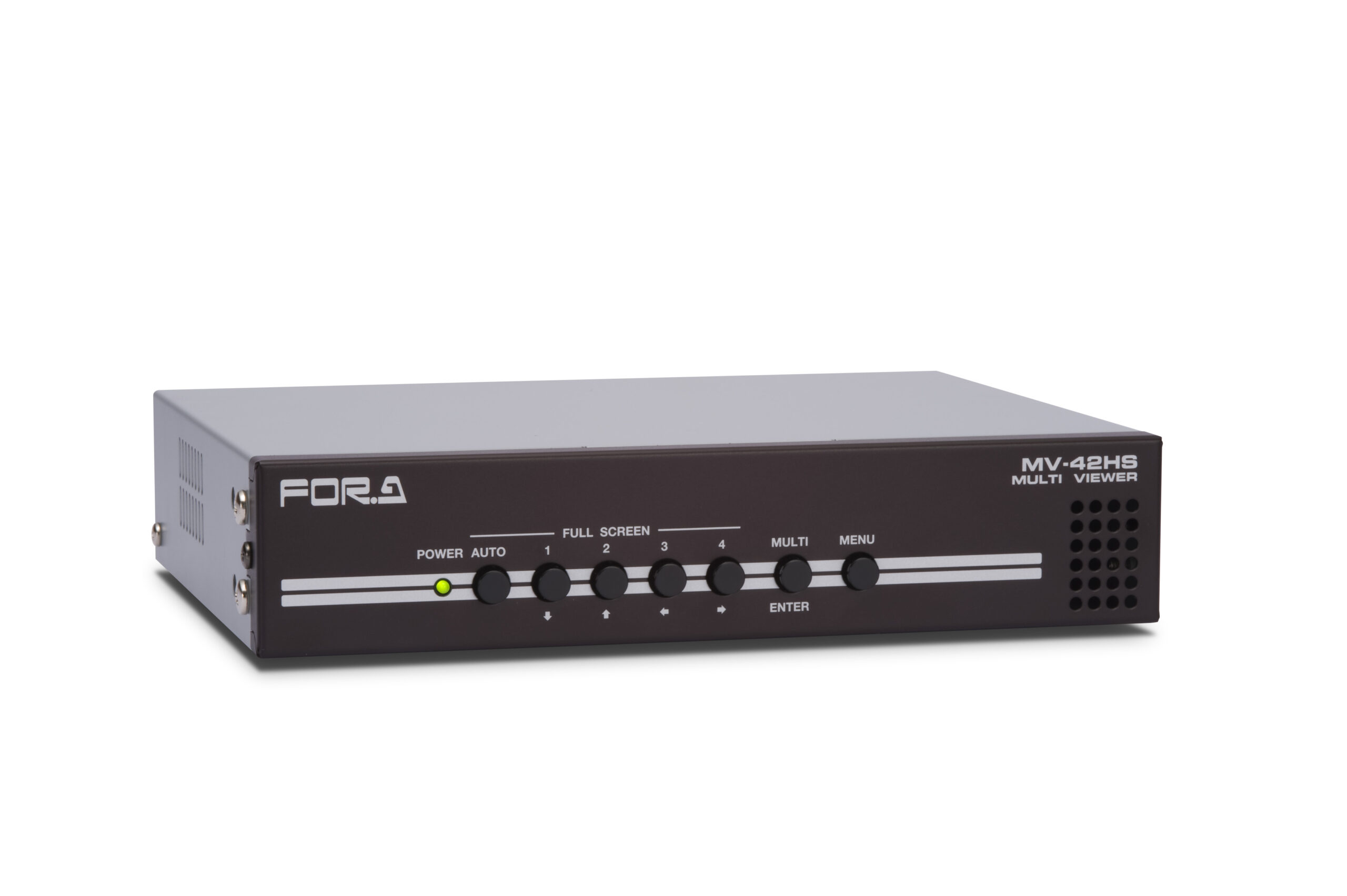

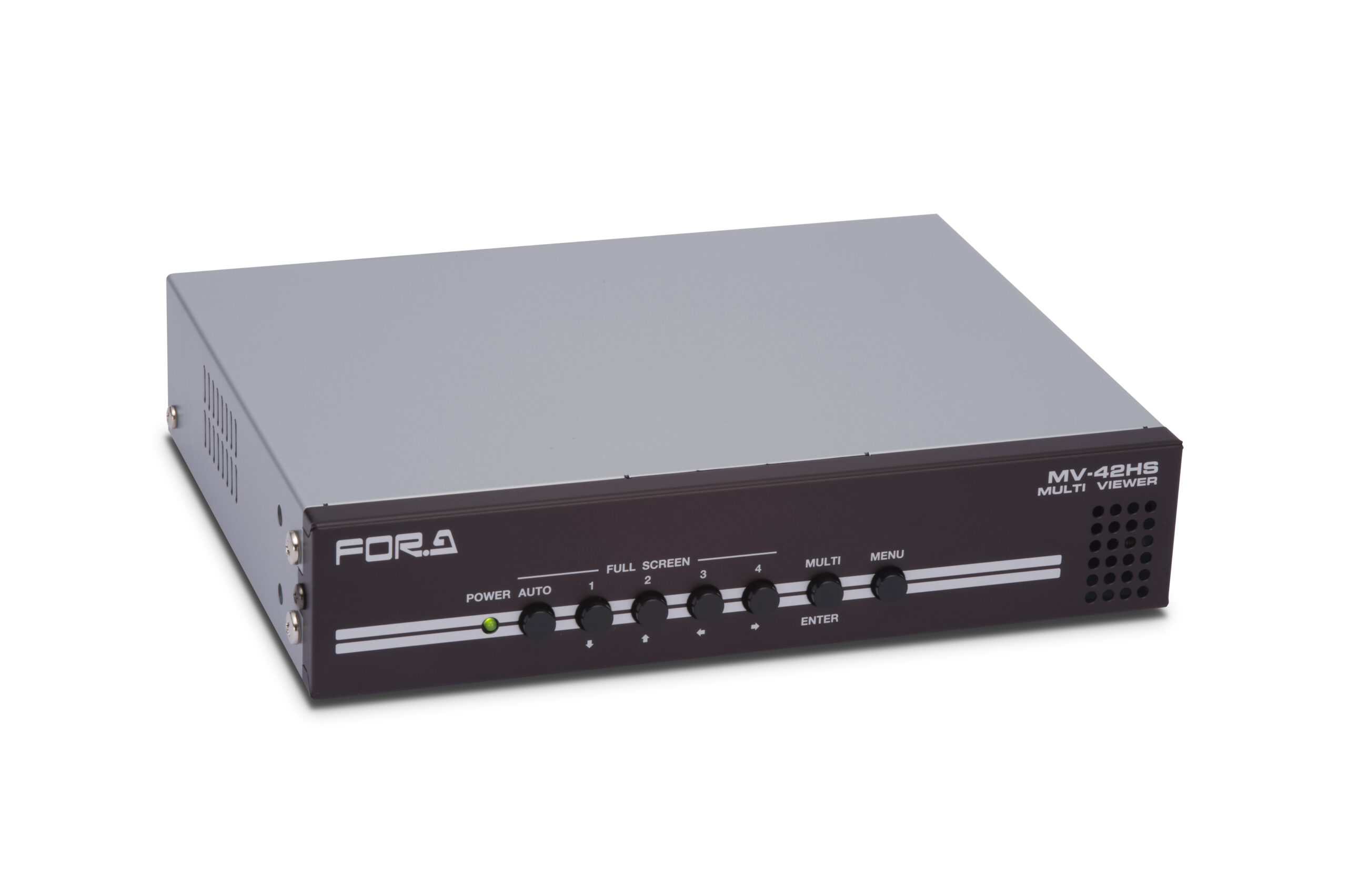

The MV-42HS is a 4-channel multi viewer that resizes and display up to 4 inputs of HD-SDI and SD-SDI signals on a single screen.
The MV-42HS is most suitable for monitoring systems with mixed HD-SDI and SD-SDI input signals. Audio level metering of SDI embedded audio signals is provided allowing audio signal presence to be monitored.

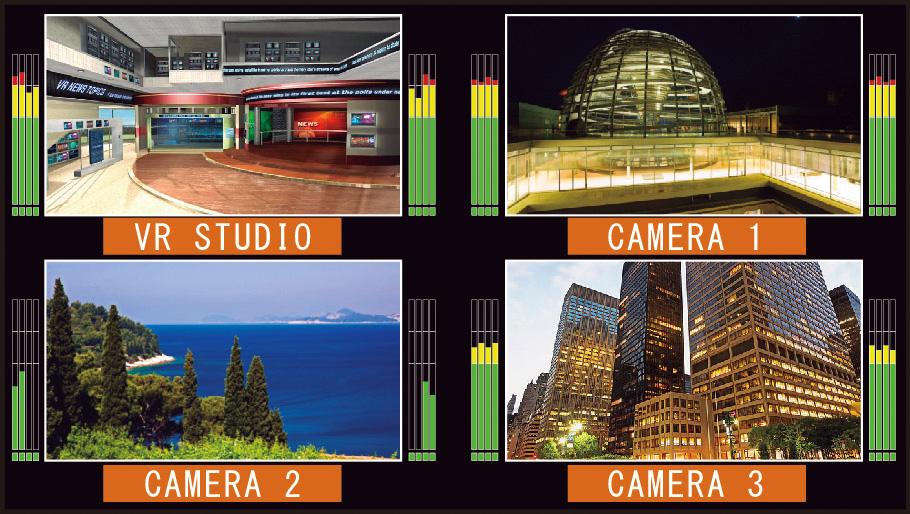

Display Image (Quad View)
Support for mixed input of HD-SDI and SD-SDI signals (Mixed and asynchronous input supported)
Support for mixed input of analog composite (option)
Audio level metering for HD/SD-SDI embedded audio signals (Up to 8 channels display)
HD-SDI and DVI-D (1920 x 1080 or 1280 x 720) high definition image output
Full screen, 2-split (right and left), and quad screen output selectable
Video loss detection
Display of ancillary time code (ATC) embedded on HD/SD-SDI input signals
Title display of up to 16 characters for each input (alphanumeric and symbol)
With the interface option, genlock input, color selectable (red and green) tally indicator display, remote control via LAN, and date/time display can also be supported
