8K Up Converter

IF8K-UCN

8K Frame Synchronizer and Upconverter

The IF8K-UCN provides synchronization and high quality conversion for integration of HD or 4K UHD material into 8K productions using the dual-green format. It supports HD-SDI or Quad Link 3G-SDI inputs and converts them to 8K Octa Link 3G-SDI outputs. Two-way distribution of 8K DG is standard and BB or Tri-level sync reference input is also supported.


Front

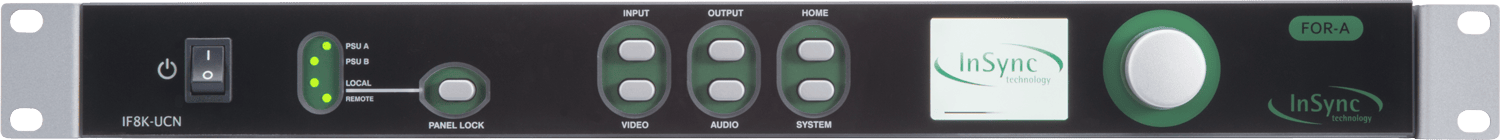

IF8K-UCN Front



Rear

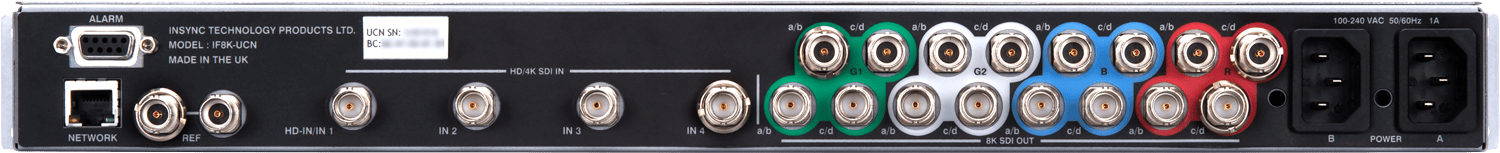

IF8K-UCN Rear

Benefit

  • High Quality HD/4K to 8K Conversion
    Ideal solution for integrating HD/4K material into 8K live productions.
  • Seamless Color Management
    Built in color management between BT.709 and B.2020 color spaces, and video processing controls allow adjustment and matching.
  • Simple to Use
    Easy to configure and operate via Front Panel, Web interface or SNMP.
  • Wide Range of Tools
    Frame synchronizer ideal for handling asynchronous sources and provides robust input timing adjustment.

Features

  • Very high quality upconversion with user-adjustable enhancement filters
  • Frame synchronization to an external reference with tracking PCM audio delay
  • Minimum delay mode (no reference) – lock to input
  • BT.709 to BT.2020 color space conversion with auto/manual selection
  • Proc amp control (luminance, chrominance and black level)
  • Control via front panel, web interface or optional remote control panel (IF8K-remote)
  • Low power consumption at 35 Watts max
