8K frame synchronizer supporting 12G-SDI and 3G-SDI.
Equipped with color corrector, process amplifier, audio embedding, de-embedding, and delay adjustment.

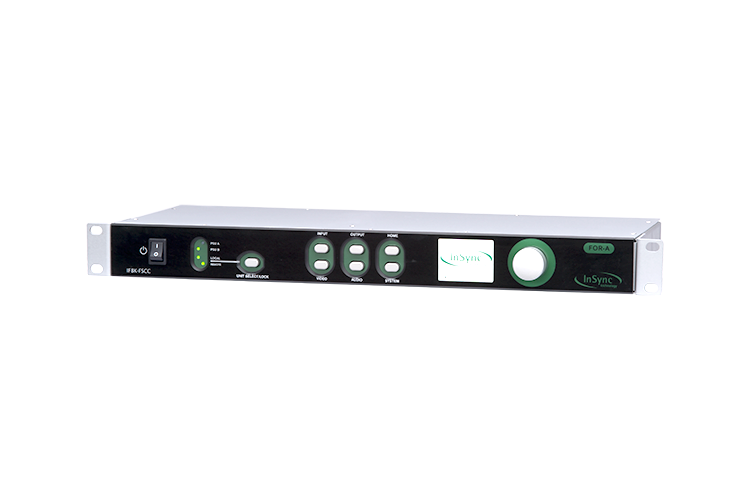

Asynchronous input of Quad Link 12G-SDI (12G-SDI x 4) or 16 Link 3G-SDI (3G-SDI x 16) for 8K can be synchronized by the external reference input and output with Quad Link 12G-SDI. The IF8K-FSCC is an ideal solution for 8K synchronisation and colour correction. It’s especially valuable where perfect synchronization without audio disturbance is needed in live 8K productions.
Features
- Supports 12G-SDI x 4 or 3G-SDI x 16 inputs and 12G-SDI x 4 outputs.
- 8K frame synchronization
- 3 synchronization modes (Lock to input, Line FS and FS)
- RGB color corrector
- 32 channel MADI audio input/output interface in addition to embedded 32 channels, supports audio MUX and DEMUX.
- Audio delay control

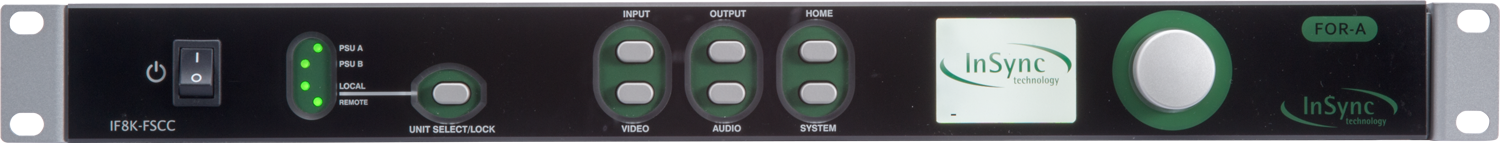

- Front panel or web browser control
