8K Frame Synchronizer

IF8K-FSCC

8K Frame Synchronizer with Color Correction

The IF8K-FSCC synchronizes full 8K video with both 12G-SDI and 3G-SDI signals. Asynchronous 8K input signals of Quad Link 12G-SDI (12G-SDI x 4) or 16 Link 3G-SDI (3G-SDI x 16) can be synchronized using an external reference, and then output on Quad Link 12G-SDI.

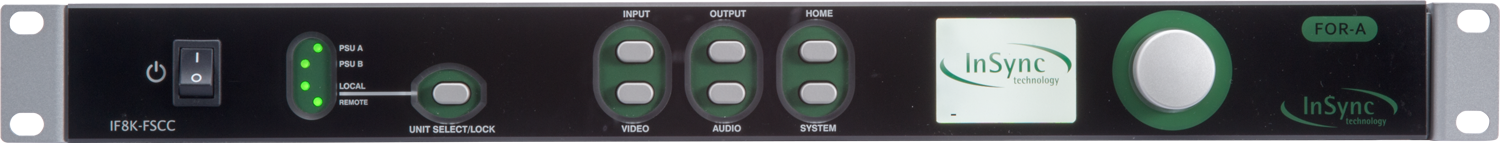

Front

IF8K-FSCC Front

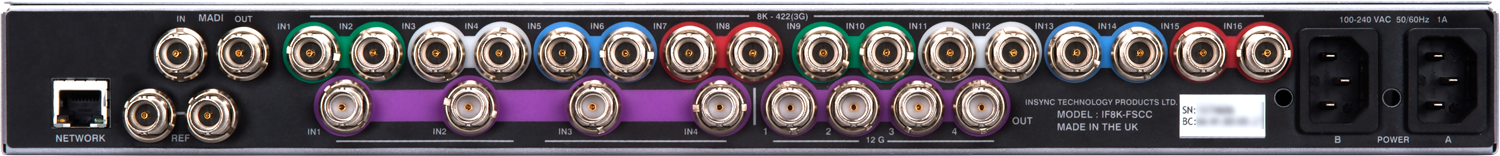

Rear

IF8K-FSCC Rear

Benefit

  • 8K Signal Handling
    Ideal for timing and synchronizing 8K asynchronous incoming lines to house reference.
  • Audio Needs Covered
    No audio disturbance and audio delay feature to correct A/V sync issues. 32 channel MADI MUX/DEMUX available to support external audio sources.
  • Simple to Use
    Easy to configure and operate via Front Panel or Web interface, plus optional remote control panel.
  • Wide Range of Tools
    Includes video proc control, RGB color correction, H&V phase adjust, line sync and low delay modes.

Features

  • 8K frame synchronization
  • Horizontal/vertical phase adjustment by the external reference input
  • Video signal processing of luminance level, chroma level, chroma phase, and black level
  • RGB color corrector
  • Line sync mode (applicable to 12G inputs)
  • Low delay mode (lock to input)
  • 32 channel embedded audio processing with additional delay for each audio channel
  • Audio embedding and de-embedding for 32 channel MADI audio interface
  • Optional remote control via IF8K-REMOTE
  • Front panel or web browser control
