4K Down Converter

IF4K-DNC-A

4K (UHD) Down Converter

The IF4K-DNC-A is a 12G-SDI compatible, cost-effective processor, equipped with a 4K (UHD) to HD down converter that provides simultaneous 12G and HD output. The unit also handles frame synchronization, color correction, HLG to SDR conversion, and supports wide color gamut as well as 12G and HD output. The IF4K-DNC-A supports AES and analog audio output and is ideal for audio monitoring.

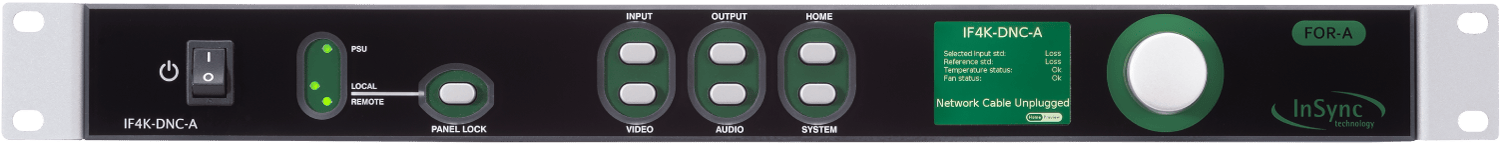

Front

IF4K-DNC-A Front

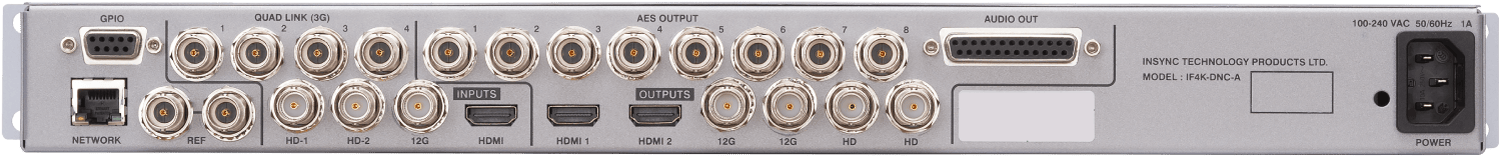

Rear

IF4K-DNC-A Rear

Benefit

  • High Quality Video Processing
    High quality 4K to HD down conversion for 12G-SDI video signals, with both SDI and HDMI outputs.
  • Flexible Format Delivery
    Cutting edge 4K conversion with the ability to provide both UHD/HDR and HD/SDR outputs simultaneously.
  • Simple to Use
    Easy to configure and operate via local Front Panel with video confidence monitor, remote panel, or Web interface.
  • Wide Range of Tools
    Simultaneous HDMI down converted output for seamless video monitoring integration.

Features

  • 12G/6G-SDI, Quad Link 3G/HD-SDI, Dual Link 3G/HD-SDI, Single Link 3G/HD-SDI and HDMI inputs. Auto-detected input signals.
  • Supports 59.94Hz, 60Hz, 50Hz, 30Hz, 29.97Hz, 25Hz for 4K 3840 x 2160 input and 59.94Hz, 60Hz, 50Hz for HD 1920 x 1080 input.
  • 12G/6G-SDI x 2, HD-SDI x 2, HDMI x 2 video outputs.
  • AES x 8 and analog audio x 2 (pair) audio outputs.
  • Frame synchronization and color correction.
  • HDR (HLG)/SDR conversion and wide color gamut (ITU-R BT.2020/709) conversion support. Enables simultaneous output of 12G-SDI HLG/ITU-R BT.2020 and HD-SDI SDR/ITU-R BT.709.
  • HD video support from all outputs.
  • HDMI input/output UHD/HD. HDR metadata inserted.
  • Can be used as a frame synchronizer for HDMI to SDI conversion and 4K UHD/HD to HDMI converter for 4K UHD/HD monitoring.
  • Adjustable audio delay.
  • Timecode passed.
  • Web server enables settings from PC or tablet.
  • Video condense monitor on front panel display.
  • Payload ID (SMPTE-352) supported.

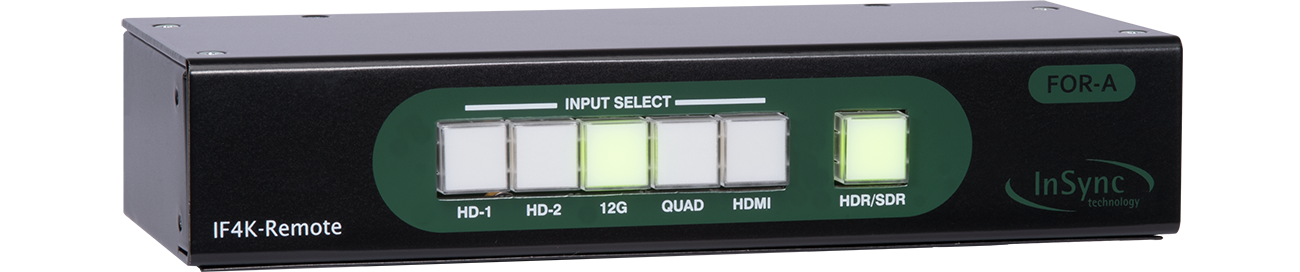

Remote panel IF4K-REMOTE

Offers connection to IF4K-DNC-A for remote control of:

  • Remote panel IF4K-REMOTE


  • - HDR (HLG)/SDR conversion.
    - Select input signals.
    - Audio delay settings
