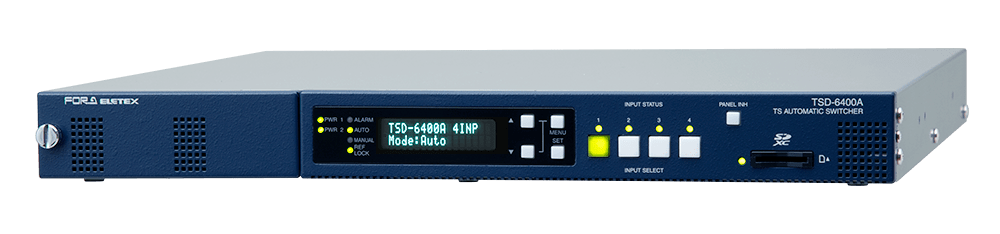

TS Changeover Switcher

TSD-6400A

Automatic switcher for data broadcasting TS signals.

If the selected signal fails, it will automatically switch to the normal signal. This unit also features a hot-swappable PSU.

Features

  • 2 inputs standard, expandable to 4.
  • 4 outputs standard, expandable to 6.
  • Selected signals and input signals can be changed for each interface.
  • Error detection designed especially for TS signals in data broadcasting.
  • Separate configuration of monitoring and switching conditions.
  • GPIO/SNMP/browser-based remote control and monitoring.
  • Logs error details and switching events to internal memory.
  • SD card slot for import/export settings or log acquisition.
  • Preset memory for storing up to 4 setting profiles.
  • Hot-swappable power supply unit.
