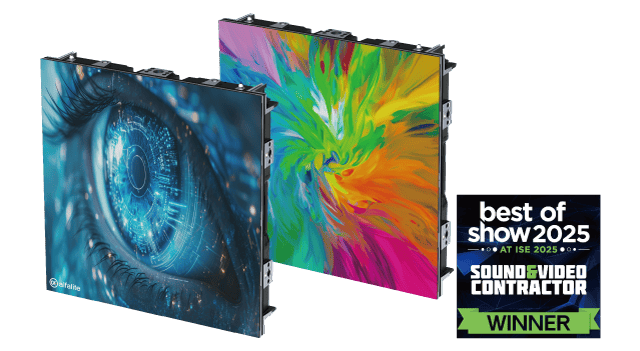

The Neopix series is designed for virtual production, XR applications, the entertainment market, and rental companies.
The 1:1 panel features the industry’s first flip-chip LED and “MATIX AlfaCOB,” a new coating technology, achieving high contrast, a wide color gamut, and high brightness. It supports a wide color gamut of 99% DCI-P3 and 87% ITU-R BT.2020, a contrast ratio of 20,000:1, and a color temperature range of 3,200K to 10,000K. Furthermore, the curve angle can be adjusted up to ±7.5 degrees in the horizontal direction, and the dial-type adjustment mechanism allows one-touch setting of curve angles at -1.5°/0°/+1.5°/+3°/+6°. The Neopix HB panel for ceiling installation adopts a 5,000 cd/m² high-brightness panel.
The Anchoring System of the Rental Companies

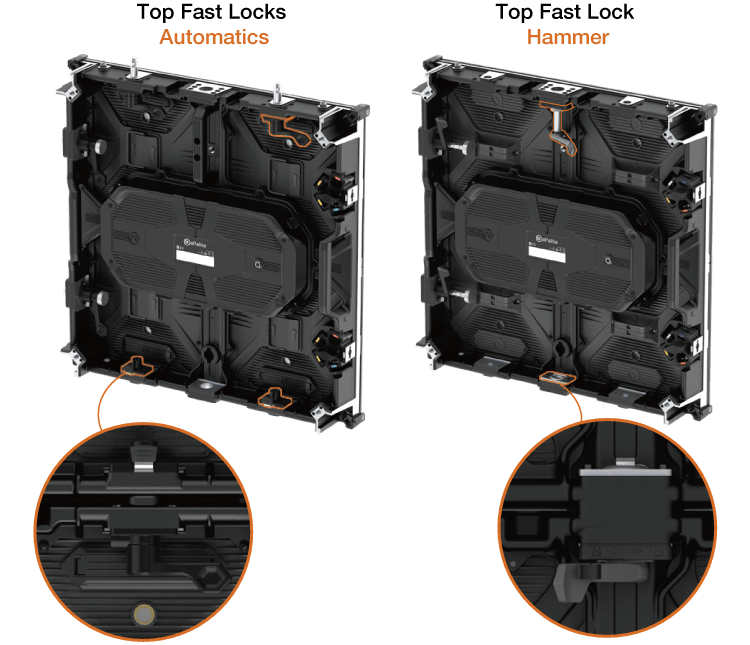

TOP FAST LOCK

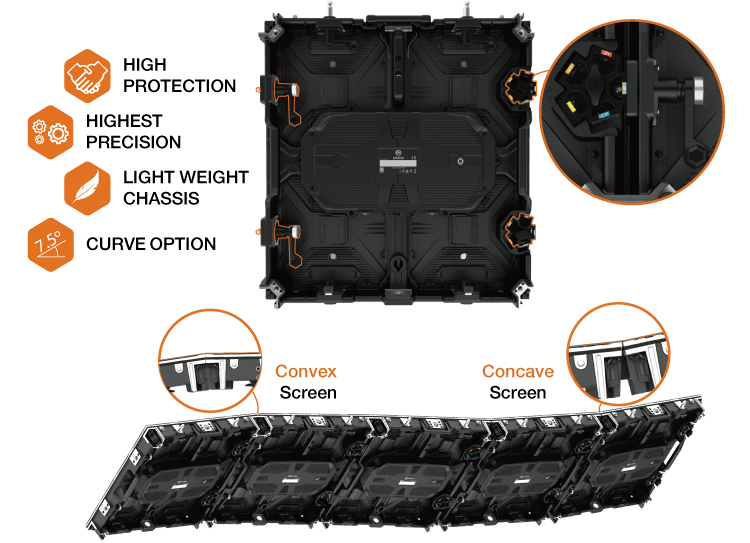

Maximum Mechanical Precision Unbeatable FlatnessLATERAL FAST LOCK CURVED

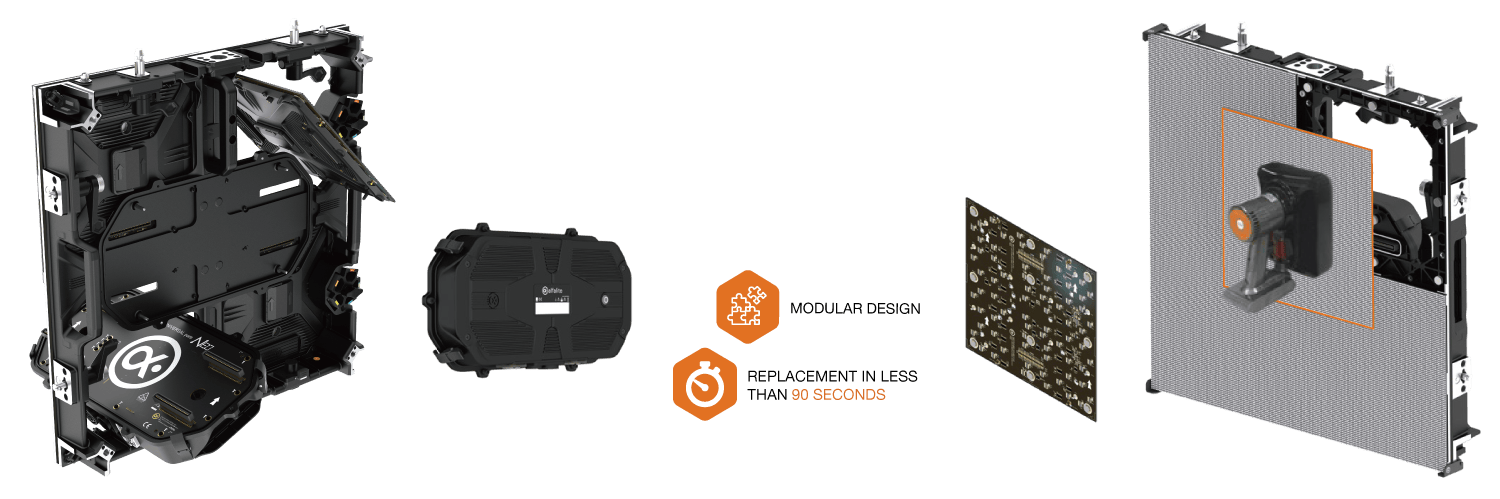

Quick and Easy Maintenance
- Front and Rear access for maintenance
- Disassembly of modules or power box without tools
- Precise installation thanks to the precision of the positioners
- A single replacement module is suitable for all 4 panel positions
- MOM: Module Replacement with Unified Calibration

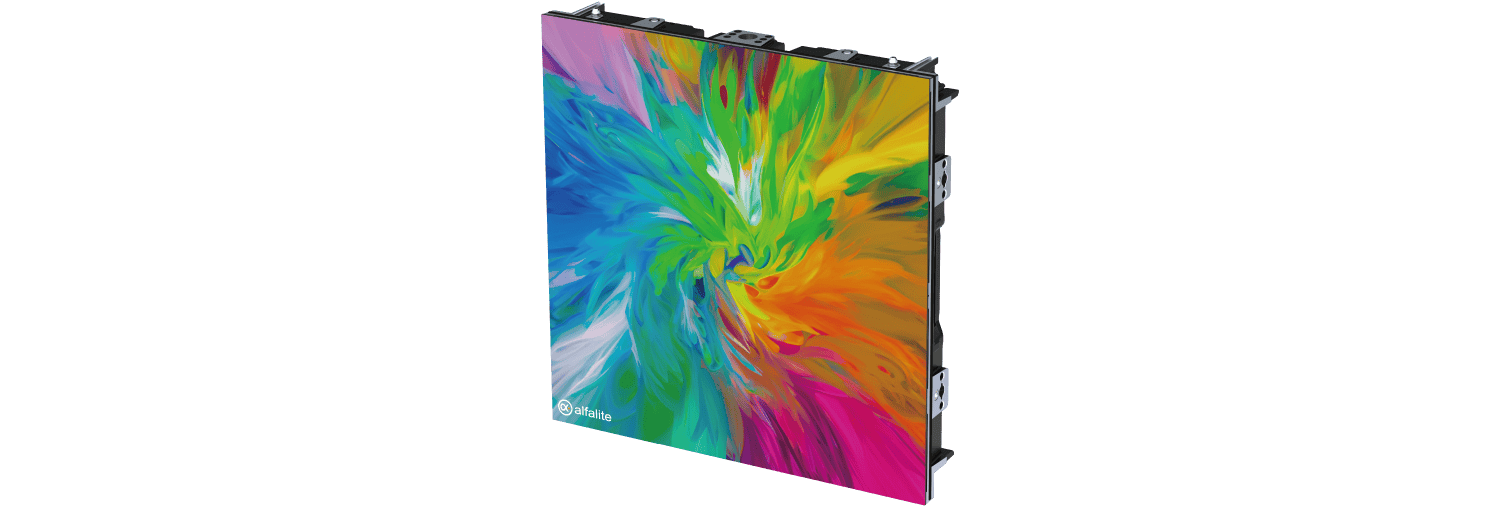

Alfalite MATIX AlfaCOB
MultiPropertiy Optical Multilayer Injection Chip on Board
Optimisation of Features
– (Matix) Matte and Less Highlights
– Viewing angle up to 175º horizontal and vertical
– Highest brightness on the market
– Better Color and Light Uniformity
– Ultra Dark Contrast. Better blacksMaximum Technical Precision
– Better accuracy between modules. < 0.05mm
– Improves light distortion in module and panel joints
– Less Reflections and Glare
User-Focused
– Increased thermal dissipation
– Static electricity protection parameters ESD > 10kV
– Anti blue light, visual comfort
– Shortest repair time on the marketGuaranteed Reliability
– Protection against impacts, liquids and chemical agents
– Lowest consumption in the market
– Better adhesion to substrate (PCB)
– No discoloration in intensive use
Alfalite NEOPIX

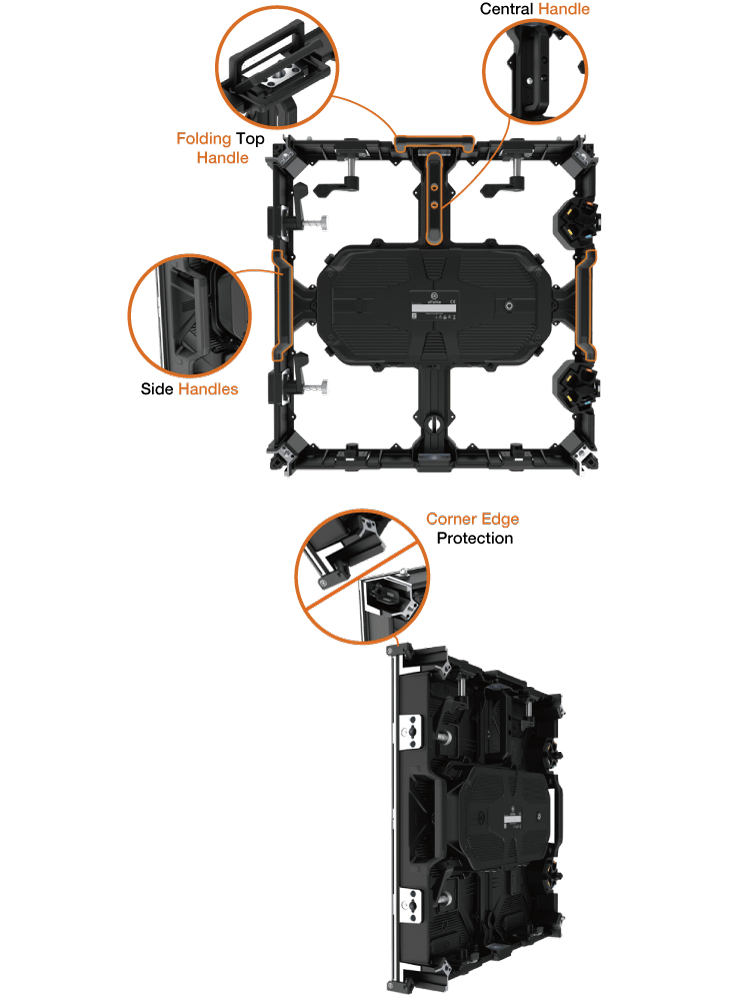

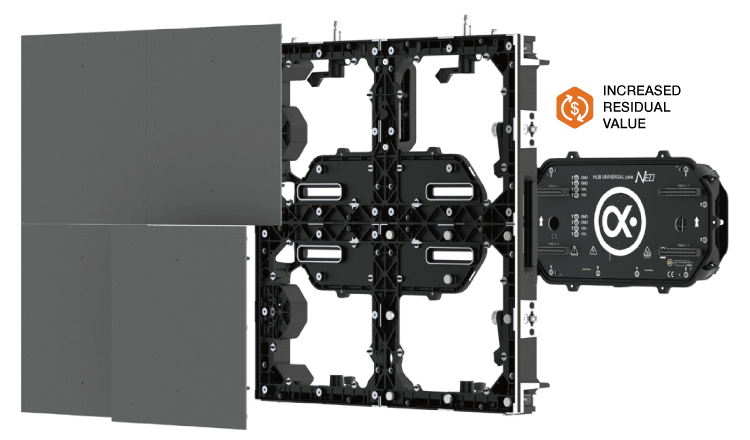

NEOPIX Chassis
– Aluminium & magnesium injection molding
– Corner edge protection & autolock system
– Lateral fast lock with adjustable curve -7.5º to +7.5º
NEOPIX Modules
– PCB boards: 4/6 layers & gold treatment in connections
– Common cathode: power efficiency
– Optimum viewing angle ≤ horizontal 175º – vertical 175º
– Wider color gamut. 99% DCI P3 & 87% REC.2020
– Scan rate: 1/8, 1/12 & 1/16
– Color temperature (K): 3.200 – 10.000 adjustable
– Contrast: 20.000:1

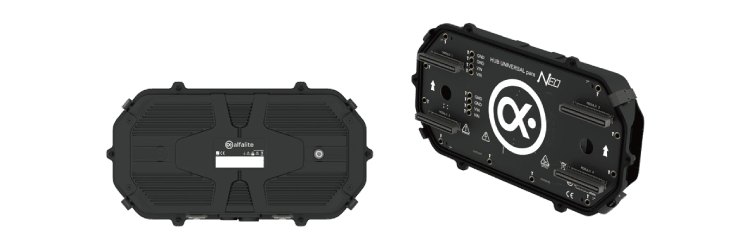

NEOPIX Power box
– Without fans. Without noise
– Power supply, hub & modules wireless connected
– Backup system in power supply and receiver card option
– Power supply failure rate: ≤ 1:20.000
Quality, Reliability, Durability
Accessories for Installations

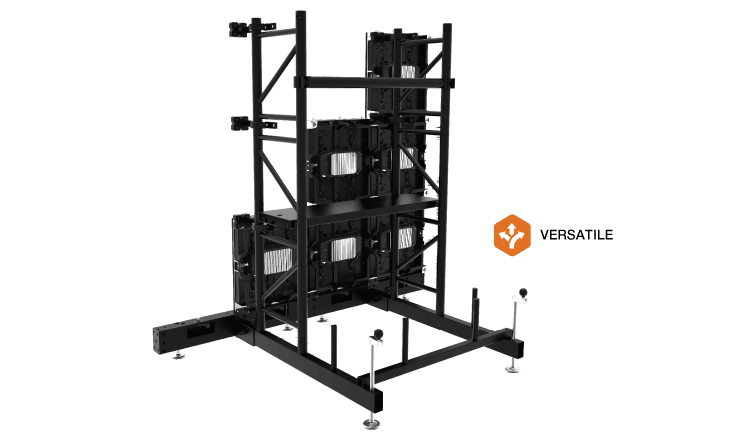

Stack System
– Own design and universal versatility
– Straight and curved screens
– Detachable system
– Weight support

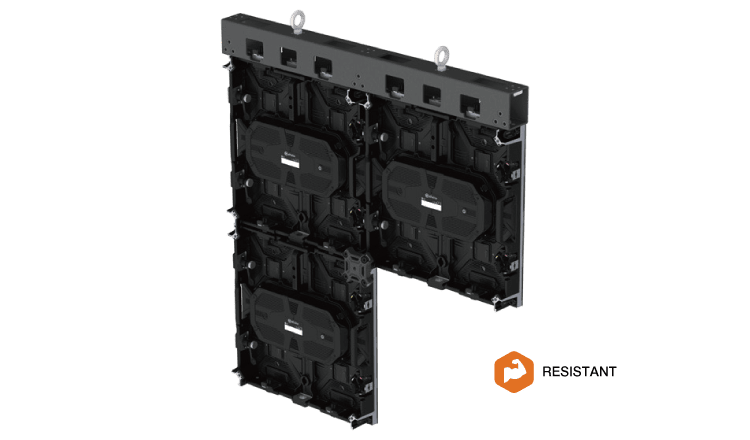

Hanging Bar
– Compatible with all 500x500mm Alfalite Panels
– Different sizes
– Weight support

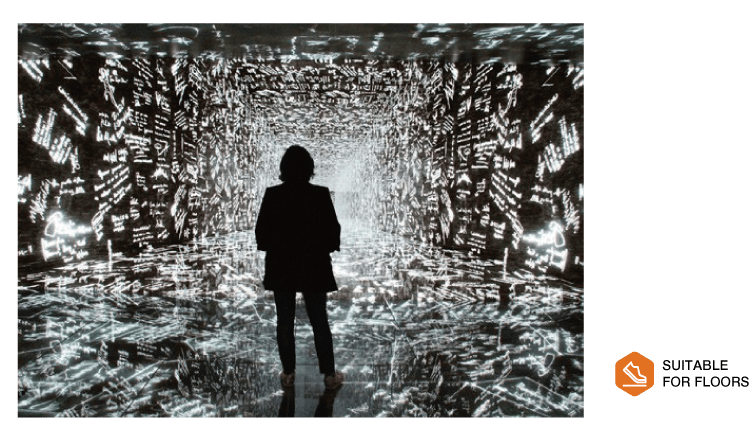

Floor Applications
– Polycarbonate
– Tempered glass
– Walk-through and interactive

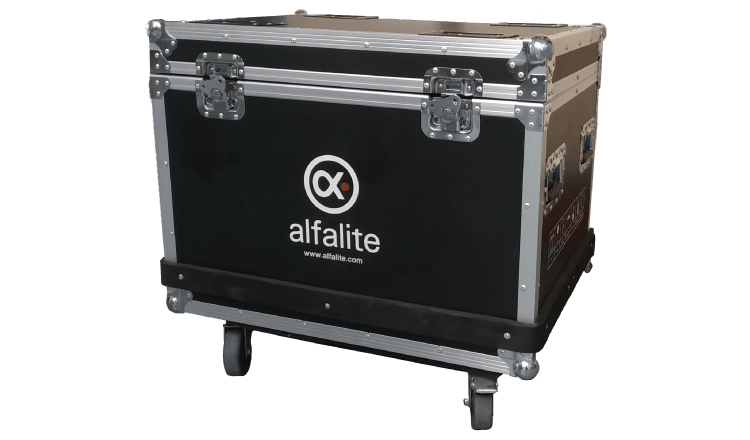

Transport
– Alfalite flight cases
– Maximum protection
– Minimum weight

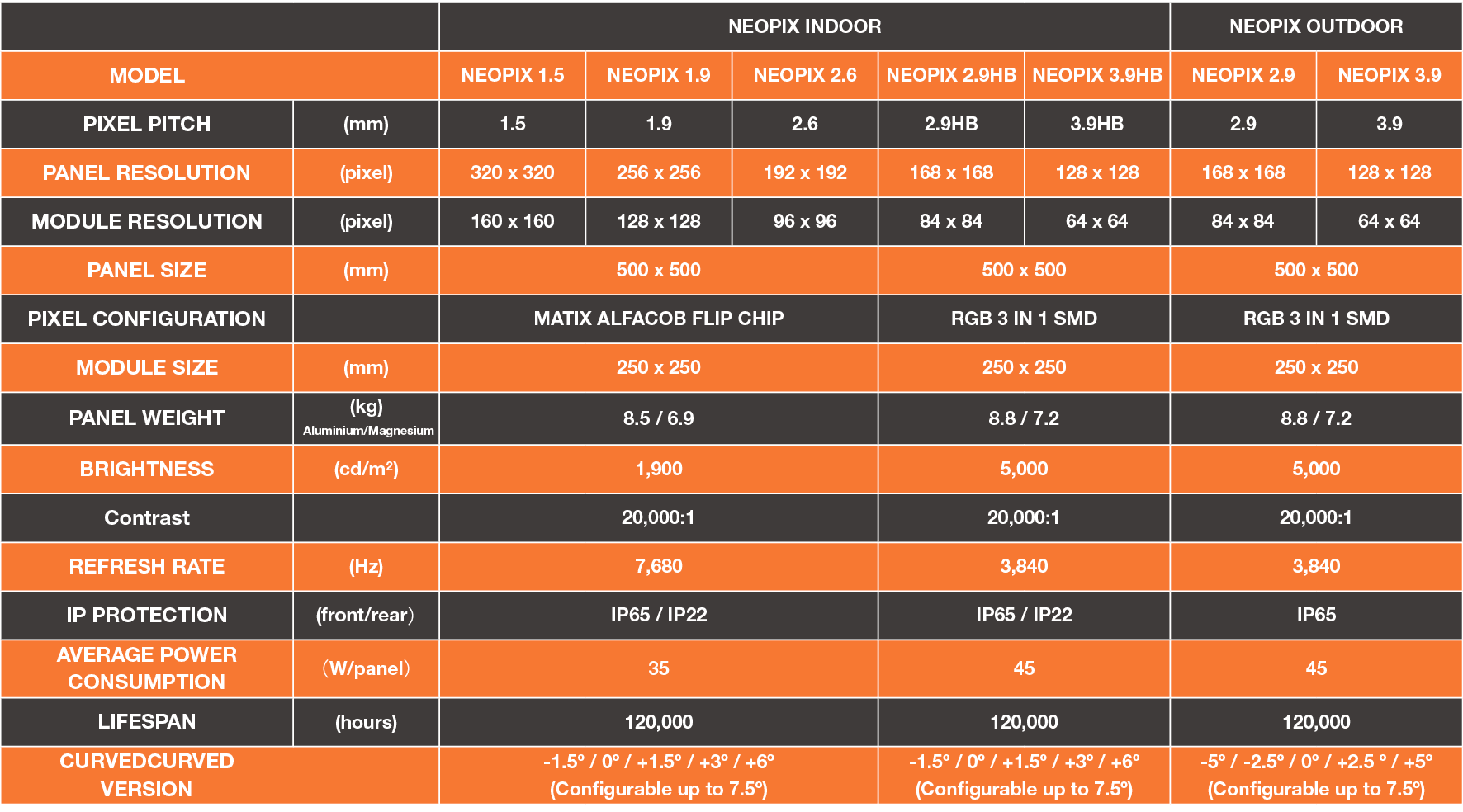

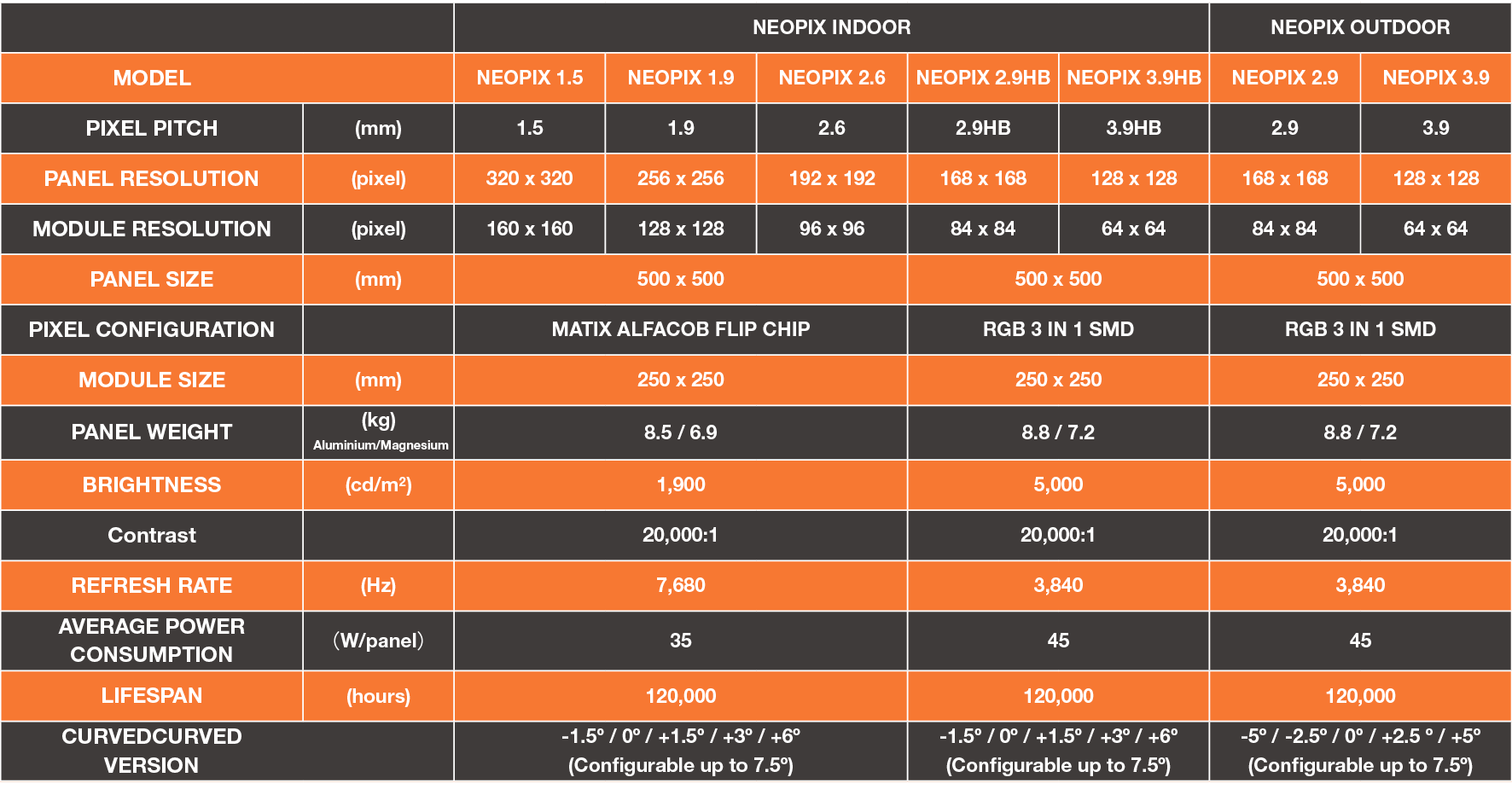

Product Specifications
