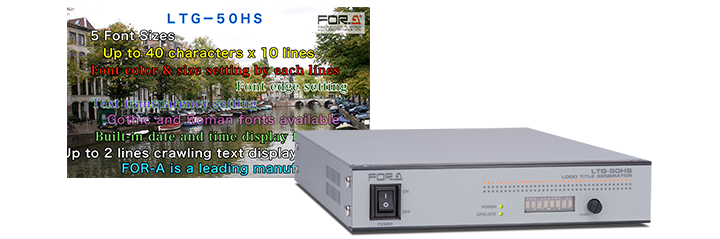

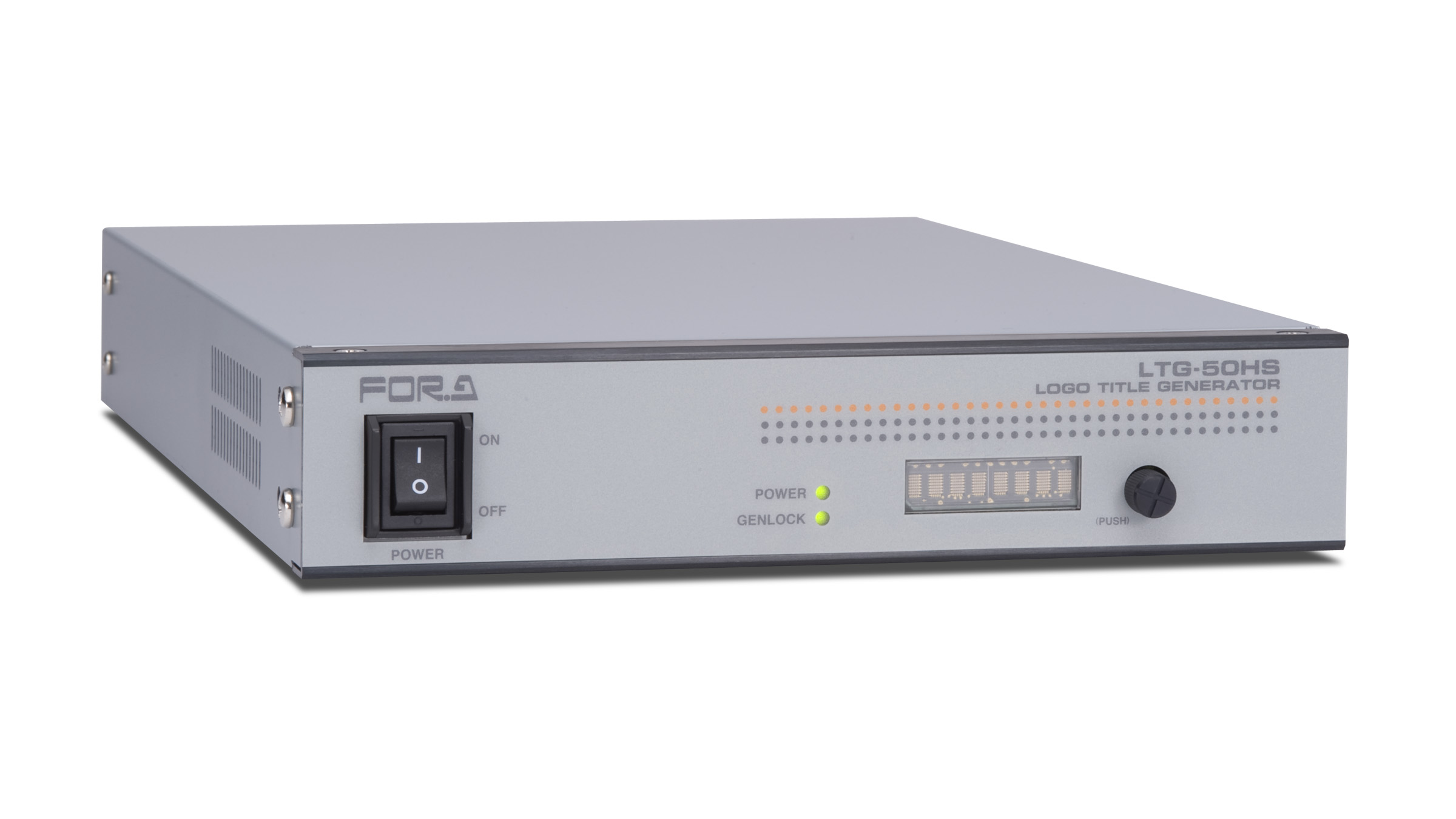

The LTG-50HS is an HD/SD logo/title generator capable of superimposing camera titles, the date and time, logos, and graphics on input video signals.
Features

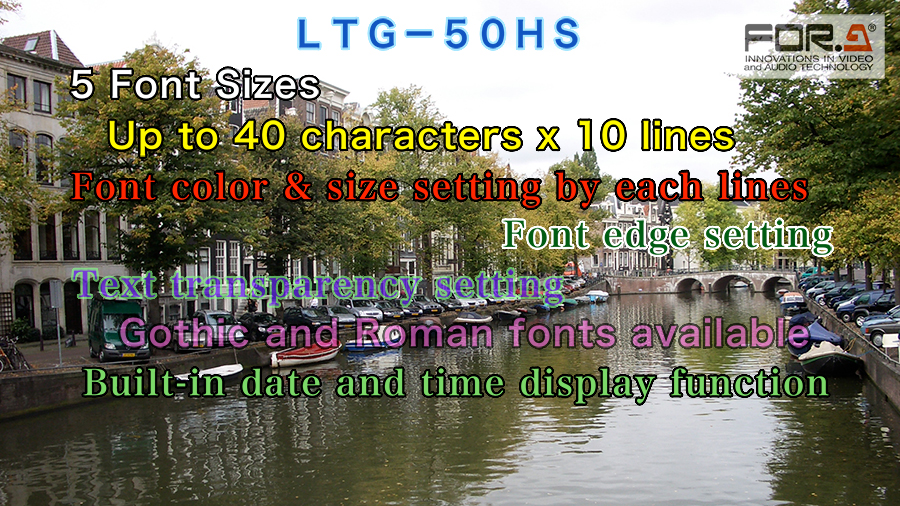

Character displays
- Fonts: Two types of display fonts (Gothic and Roman)
- Text: Up to 40 characters x 10 lines per page
- Pages: Up to 256 pages with max. 400 characters
- Font size setting: Five font size settings by line
- Font edge setting: Font edge ON/OFF and change colors by line
- Font color setting
- Text transparency setting
- Display position: Adjustable within 80% of the effective screen area
- Date and time display (with external correction input)
Special displays
- Remote control on text, color, and other settings
- Bitmap image display function that enables logos and graphics to be displayed at any selected location
- Standard configuration features a LAN interface as well as RS-232C for allowing easy display setting and display character registration from a PC
- Crawl display: Can be set for any selected line (max. 256 characters/line)

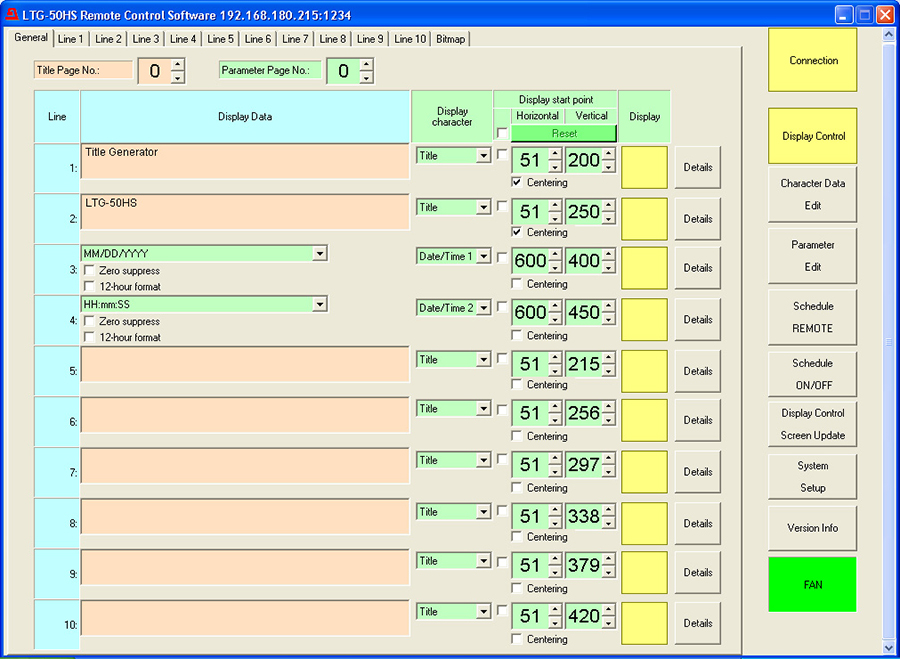

*Can be set to a max. 2 lines (256 characters for 1st line, 128 characters for 2nd line) - Includes software for easy typing and setting via PC as well as weekly page control scheduling
