12G/3G/HD/SD-SDI 4-inputs audio/video delay unit that also supports 4K
3 Models Lineup
EDA-1000
Provides distribution of up to four outputs when one channel of input is used. The EDA-1000 is a compact 1RU half-size model with a single power supply.EDA-2000
Provides distribution of up to eight outputs when one channel of input is used. The EDA-2000 is a 1RU model with redundant power supply.EDA-2100
Provides distribution of up to eight outputs when one channel of input is used. The EDA-2100 supports 12G-SDI I/O and is a 1RU model with redundant power supply.Features
Delay of up to 80 sec. available (optional)
Using an HD-SDI input, set a delay of up to 40 sec. Add an EDA-20EX option for delay up to 80 sec. Set separate delays for each of the four inputs, as needed. For VANC data delay, minimum delay can be set per line for specific VANC within each input channel. Using a 12G-SDI input, set a delay of up to 5 sec. Add an EDA-20EX option for delay up to 10 sec. Note: Available delay when four inputs are used is divided equally among channels (¼ the delay available for one channel).
Multi-format support
The units are 12G/3G/HD/SD-SDI compatible. Delay both audio and video, or delay signals separately. They also support 4K (12G-SDI/Quad Link 3G-SDI) input.
- Use SNMP for trap output or to check or configure settings
- Remote control via Telnet with dedicated remote unit, the EDA-20RU
- Genlock using external reference signals is enabled** Frame synchronization is not supported.
Control Units

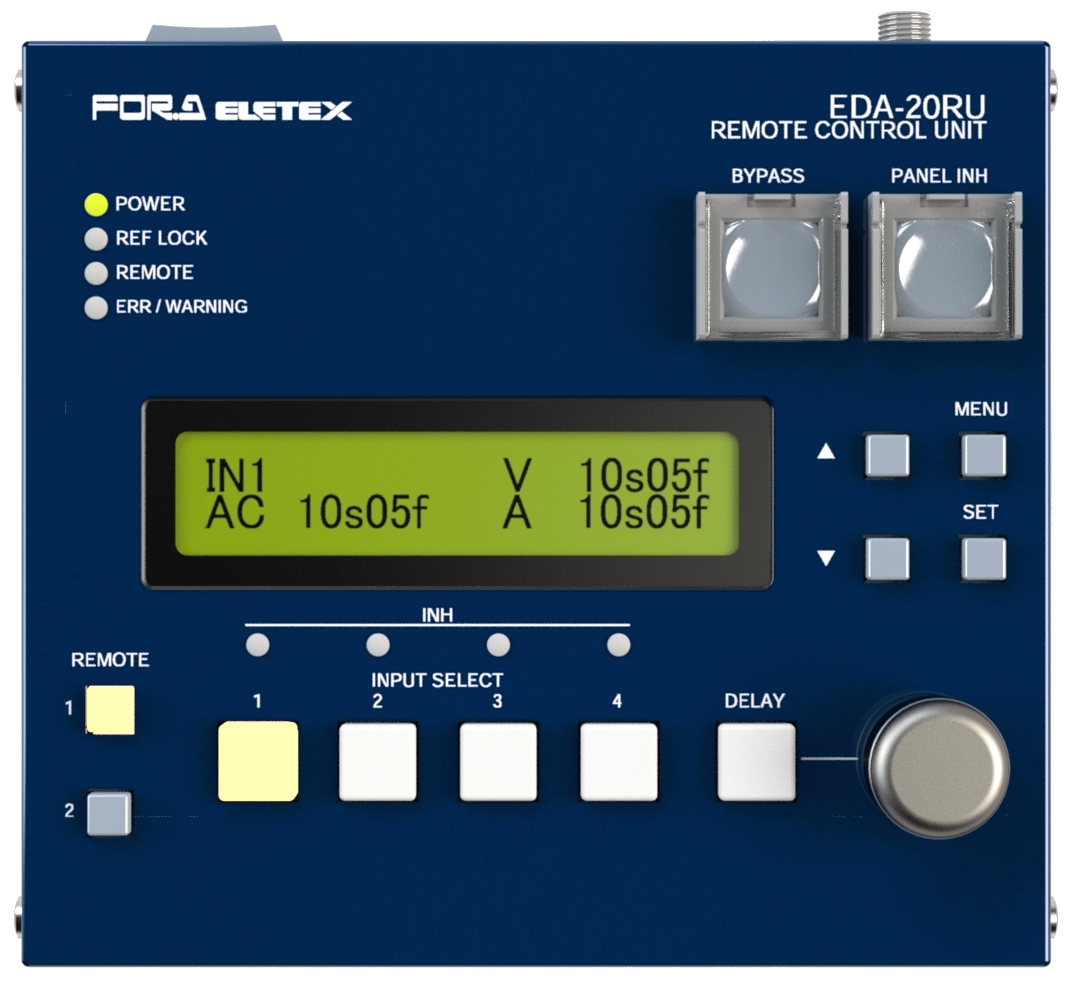

EDA-20RU (EDA Series Unit)
- Connects main unit and remote control unit via Ethernet
- Simple and easy operation for each delay settings
- Enables registration of up to 2 units for immediate use

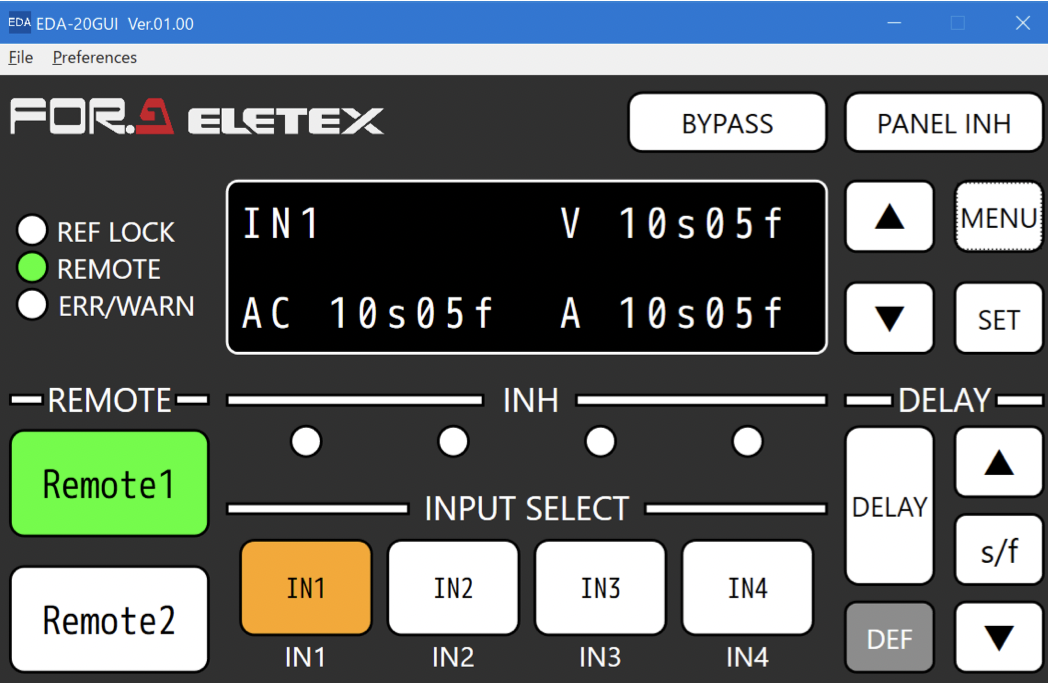

EDA-20GUI (EDA Series Control Unit)
- Provide same level of operation as EDA-20RU
- Enables use of multiples units simultaneously on PC
- Provide as an optional licensing code (GUI is copyright free)
- Setting license for valid GUI remote function
