HD Variable Frame Rate Camera
VFC-7000

  • Outline
  • Specifications
  • Documents
Contact

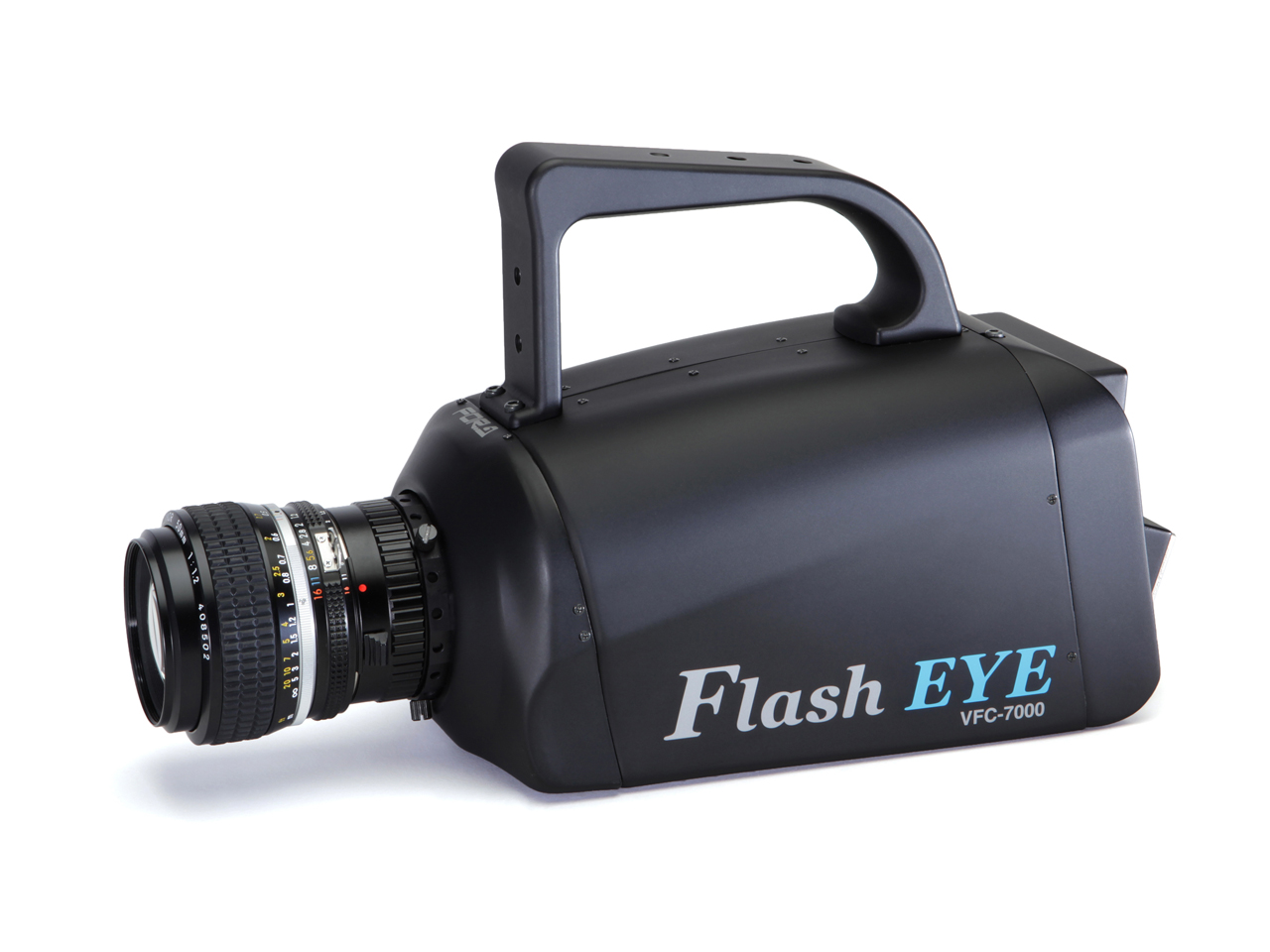

Compact, lightweight and configured as an all-in-one self-contained unit, the VFC-7000 is an easy to operate variable frame rate camera that is capable of high-speed HD recordings.


  • Variable frame rate camera capable of high-speed HD recording
  • High-speed 700 fps HD full frame recording
  • Frame rate can be varied from 24 to 700 fps
  • High-sensitivity CMOS color sensor
  • Lens mount: F mount (PL mount option also available)
  • Electronic high-speed shutter: Up to 1/200,000 sec for recording fast subjects without blur
  • Recording time: 9.8 sec standard (700 fps), can be expanded to 29.5 sec (optional)
  • Recording method: Endless recording with built-in memory, saved video can be linked to an external trigger  (start, center or end trigger style can be selected
  • Video output: Equipped with 2 channels of HD-SDI output Simultaneous output of live and recorded video
  • Genlock capability (BB or Tri-level sync)
  • Camera head, main body and recording component all in one integrated structure
  • Also supports DC drive, making it optimal for recording outdoors and in other environments with no power source
Specifications

Specifications

Lens Mount F mount *PL mount option available
Shutter Speed Selectable from preset values between 1/Shooting Speed to 1/200,000 sec.
Total Recording Time (Refer to below)
Memory Division Undivided or divided into 2, 4, or 8 selectable areas
Video Settings Gain: 0 dB, 6 dB, or 12 dB selectable
White Balance: Selectable from Semi-auto and preset values
HD-SDI Output StandarChannal 1: Outputs live or slow motion video
Channal 2: Outputs live video (for viewfinder)
Output Formats 720/59.94p, 720/50p, 1080/59.94i, or 1080/50i
Genlock Input
BB: NTSC: 0.429 Vp-p/PAL: 0.45 Vp-p or
Tri-level sync: ±0.3 V
Genlock Mode External (BB or Tri-level sync) or Internal
Trigger Start, center, end
Trigger Signal Input Input through the operation unit or
contact signal
Interfaces 1000BASE-T (For connecting to the operation unit)
Temperature / Humidity 0ºC to 40ºC / 85% or less (no condensation)
Power / Consumption 12 V DC to 17 V DC / 24 W (28 W with full options)
Dimensions / Weight 115 (W) x 116 (H) x 244 (D) mm
(excluding protruding parts) / 2.2 kg (2.5 kg with full options)
Consumables Cooling Fan: Replace every 4 years (at normal temperature)
Accessories Operation unit, AC adapter x 2, AC cord x 2
LAN cable (5m), Operation Manual
Options VFC-70-30SEC: 16GB memory expansion
VFC-70PL: PL lens mount with shims
VFC-70MSC: Sync cable (1m)
Simul. recording and playback by two cameras Possible by connecting with VFC-70MSC option

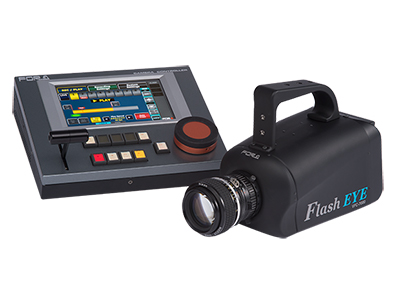

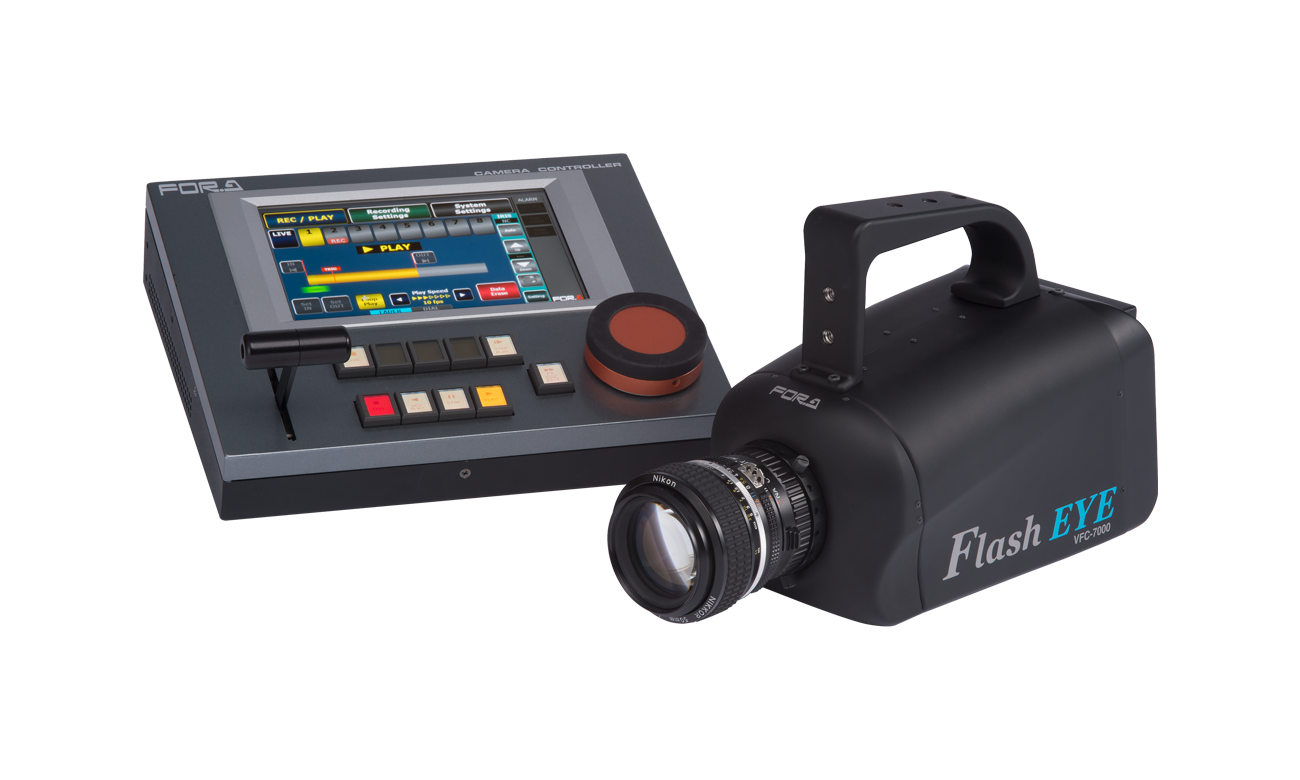

Operation Unit

Interfaces 100BASE-TX (For connecting to the camera)
Temperature / Humidity 0ºC to 40ºC / 30% to 85% (no condensation)
Power / Consumption 12 V DC to 17 V DC / 14 W
Dimensions / Weight 260 (W) x 67 (H) x 215 (D) mm / 2 kg
Consumables Button battery (for backup): Replace every 4 years
(at normal temperature)
Graphics 1280 x 768 pixels or better, 24-bit full color, Graphics card with 64 MB or more memory (OpenGL 1.0 or 2.0 supported)

Total Recording Time (1280 x 720)

Frame Rate
Recording Time (Sec)
(frames/sec)
Standard
Expansion
24
287.3
861.9
25
275.8
827.5
30
229.8
689.5
50
137.9
413.7
60
114.9
344.7
100
68.9
206.8
120
57.4
172.3
150
45.9
137.9
180
38.3
114.9
200
34.4
103.4
240
28.7
86.1
250
27.5
82.7
300
22.9
68.9
360
19.1
57.4
400
17.2
51.7
500
13.7
41.3
600
11.4
34.4
700
9.8
29.5
