IP Gateway

USF-10IP series

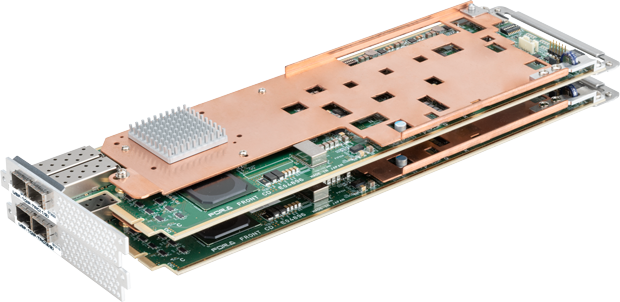

IP Gateway module for IP to IP, IP to SDI, or SDI to IP conversion

Video-over-IP module for Universal System Frame USF-212BS. USF-10IP Series converts video, audio and ancillary data between IP formats (SMPTE ST 2022-6/SMPTE ST 2110, SMPTE ST 2022-8/SMPTE ST 2110) and between IP and SDI. Two dual (USF-10IP-TRC/USF-10IP-TRC-FS) or dual (USF-10IPSDI6-FS/USF-10IPSDI12-FS) 10 GbE (SFP+) modules can be installed to support hitless operation.

  • For details, contact your FOR-A dealer.

Features

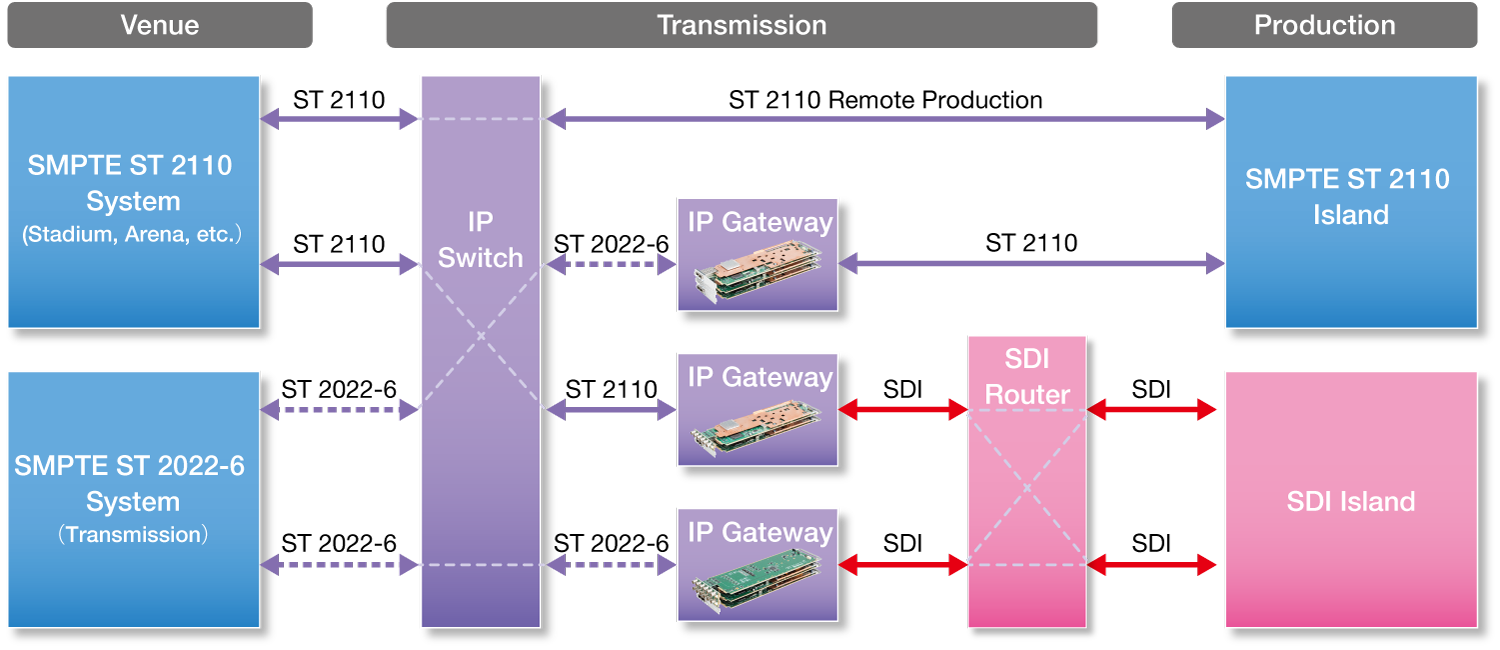

Baseband and IP Hybrid System

For an IP system, the SMPTE ST 2022-6 standard is mainly used in transmission. In a production system, SMPTE ST 2110 is the most commonly used standard. In the future, baseband and IP, as well as SMPTE ST 2022-6 and SMPTE ST 2110 may be mixed for production applications. The USF-10IP Series provides IP and baseband conversion, and supports system configurations with mixed standards.

USF-10IP Series Lineup

USF-10IP-TRC
(SMPTE ST 2022-8 ↔ SMPTE ST 2110 conversion)

  • IP format: SMPTE ST 2022-8、SMPTE ST 2110.
  • IP synchronization: PTP (SMPTE ST 2059).
  • Two dual 10 GbE (SFP+) port supports hitless operation for redundancy (SMPTE ST 2022-7).
  • Control: Web GUI, NMOS(IS-04/05).
  • Up to 5 USF-10IP-TRC modules can be installed into USF-212BS.

USF-10IP-TRC-FS
(SMPTE ST 2022-6 ↔ SMPTE ST 2110 conversion)

  • IP format: SMPTE ST 2022-6、SMPTE ST 2110.
  • IP synchronization: PTP (SMPTE ST 2059).
    Equipped with frame synchronization to synchronize SMPTE ST 2022-6 sources using PTP.
  • Two dual 10 GbE (SFP+) port supports hitless operation for redundancy (SMPTE ST 2022-7).
  • Control: Web GUI, NMOS(IS-04/05).
  • Up to 3 USF-10IP-TRC-FS modules can be installed into USF-212BS.

USF-10IPSDI6-FS
(IP ↔ SDI conversion)

  • IP format: SMPTE ST 2022-6/8、SMPTE ST 2110 (used by switching, cannot be mixed).
  • IP synchronization: PTP (SMPTE ST 2059).
  • Frame synchronizer:
    Selectable from sync signal generated from PTP or external BB input.
  • Two 10 GbE (SFP+) port supports hitless operation for redundancy (SMPTE ST 2022-7).
  • Video format:
    1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i.
  • Conversion of up to 6 streams.
    3G-SDI: 3 inputs/3 outputs.
    HD-SDI: Up to 6 inputs or 6 outputs, or 3 inputs/3 outputs.
  • Compresses 12G-SDI to 3G/1.5G-SDI and processes 4K signals by using codec module USF-106TICO-12G simultaneously with input/output signals.
  • Control: Web GUI, NMOS(IS-04/05).
  • Up to 5 USF-10IPSDI6-FS modules can be installed into USF-212BS.

USF-10IPSDI12-FS
(IP ↔ SDI conversion)

  • IP format: SMPTE ST 2022-6/8、SMPTE ST 2110 (used by switching, cannot be mixed).
  • IP synchronization: PTP (SMPTE ST 2059).
  • Frame synchronizer:
    Selectable from sync signal generated from PTP or external BB input.
  • Two 10 GbE (SFP+) port supports hitless operation for redundancy (SMPTE ST 2022-7).
  • Video format:
    1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i.
  • Conversion of up to 12 streams.
    3G-SDI: 3 inputs/3 outputs.
    HD-SDI: Up to 6 inputs/6 outputs.
  • Compresses 12G-SDI to 3G/1.5G-SDI and processes 4K signals by using codec module USF-106TICO-12G simultaneously with input/output signals.
  • Control: Web GUI, NMOS(IS-04/05).
  • Up to 3 USF-10IPSDI12-FS modules can be installed into USF-212BS.
