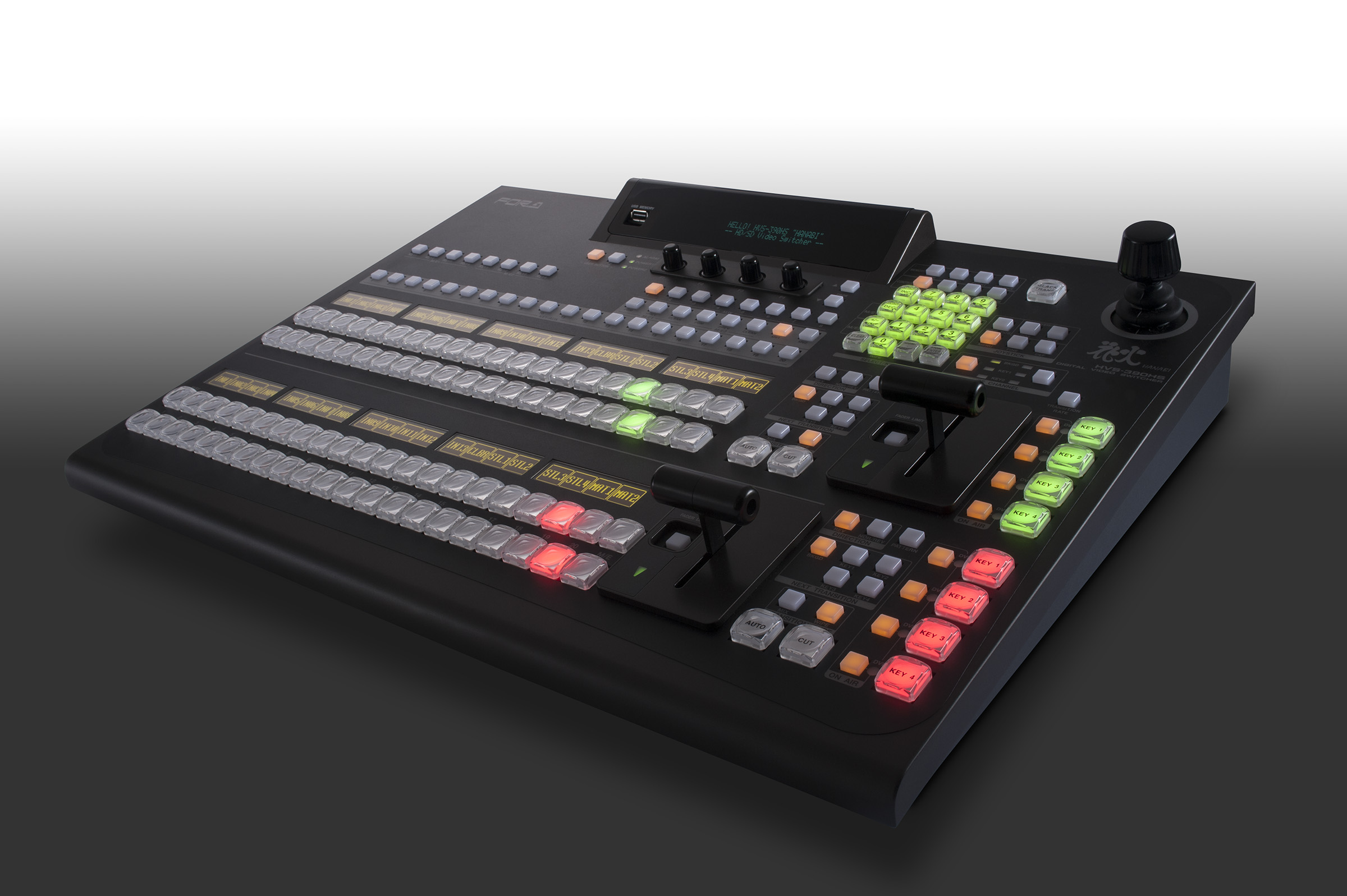

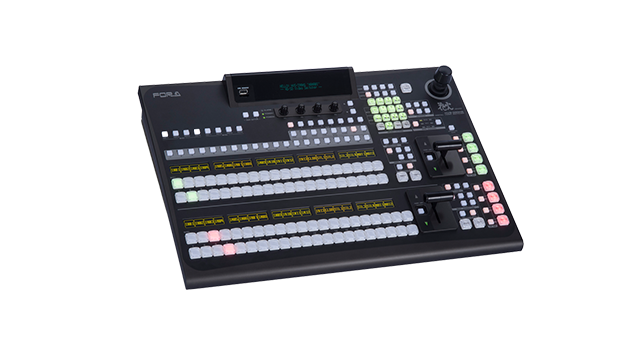

HD/SD 1M/E - 2M/E Video Switcher
HVS-390HS
The New HANABI Unveiled
The 1M/E HVS-300HS revolutionized the world of compact video switchers in 2008. In 2010, the 1.5M/E HVS-350HS switcher continued that trend, with its enhanced functionality and increased performance. The advancement of the HANABI series continues to this day. In 2012, we continue the evolution of the switcher. The new HVS-390HS video switcher will come in 1M/E or 2M/E configuration. This switcher is more powerful and easier to use, while maintaining all of the highly acclaimed functionality of the HVS-300 series. The evolution of the HANABI series continues.
- Main Unit
- 5 Operation Styles
- Frame Synchronizer on All Inputs
- HD, SD Mixed Input; Resize Engine
- Keyers with DVE
- DVE/Transition/Wipe Pattern/Effect
- Dual Multi Viewer
- Event Memory with Loading Duration
- Still Stores
- Video Memory
- Web Control
- Flexible Input/Output
- Multi-screen Function (Video Wall)
- Sequence Function
- AUX Transitions
- Keyer Free Assign
- External Interfaces
- Upgradable from 1 M/E to 2 or 2.5 M/E
- Also enables operation as a 2.5 M/E digital video switcher
- Other
- Options

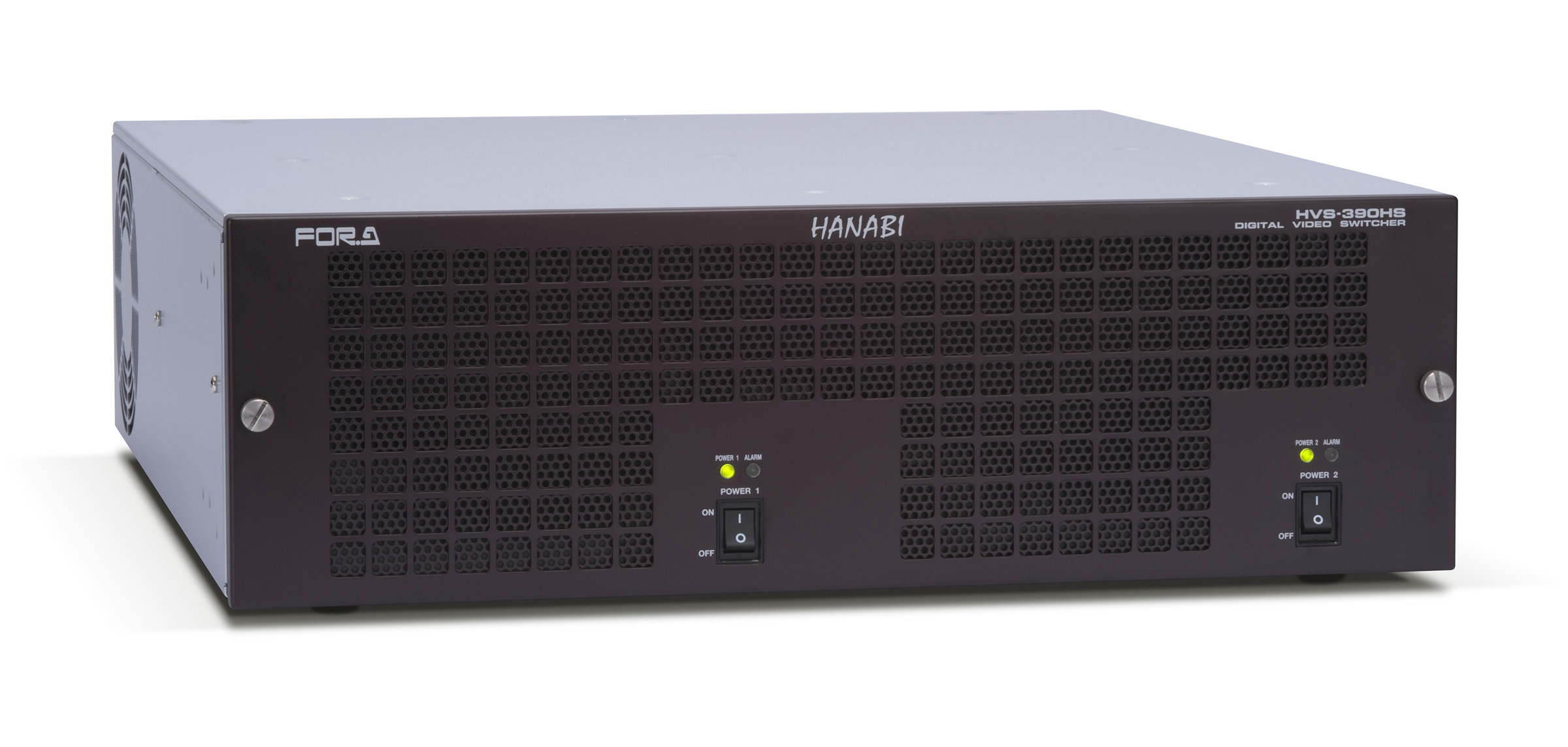

Main Unit
- Main unit size: 3U
- Enlarged fan and efficient exhaust process guarantees silent operation
- Supports a redundant power supply configuration (optional)
5 Operation Style
- Comes in 1 M/E and 2 M/E versions
- Maintains the operating style of the highly acclaimed HANABI series
- Includes a USB interface to store/recall data or up/download still images
- Connects to the main unit using BNC cables via ARCNET (max. 100m)
- Supports redundant power supply configurations (optional)
- Can be connected to up to three control panels at once for simultaneous control
- Compatible with control panels from our HVS-300HS switcher (HVS-30OU and HVS-30RU)
HVS-390HS Dedicated Control Panels |
HVS-300HS Control Panels |
|||
 |
 |
 |
 |
 |

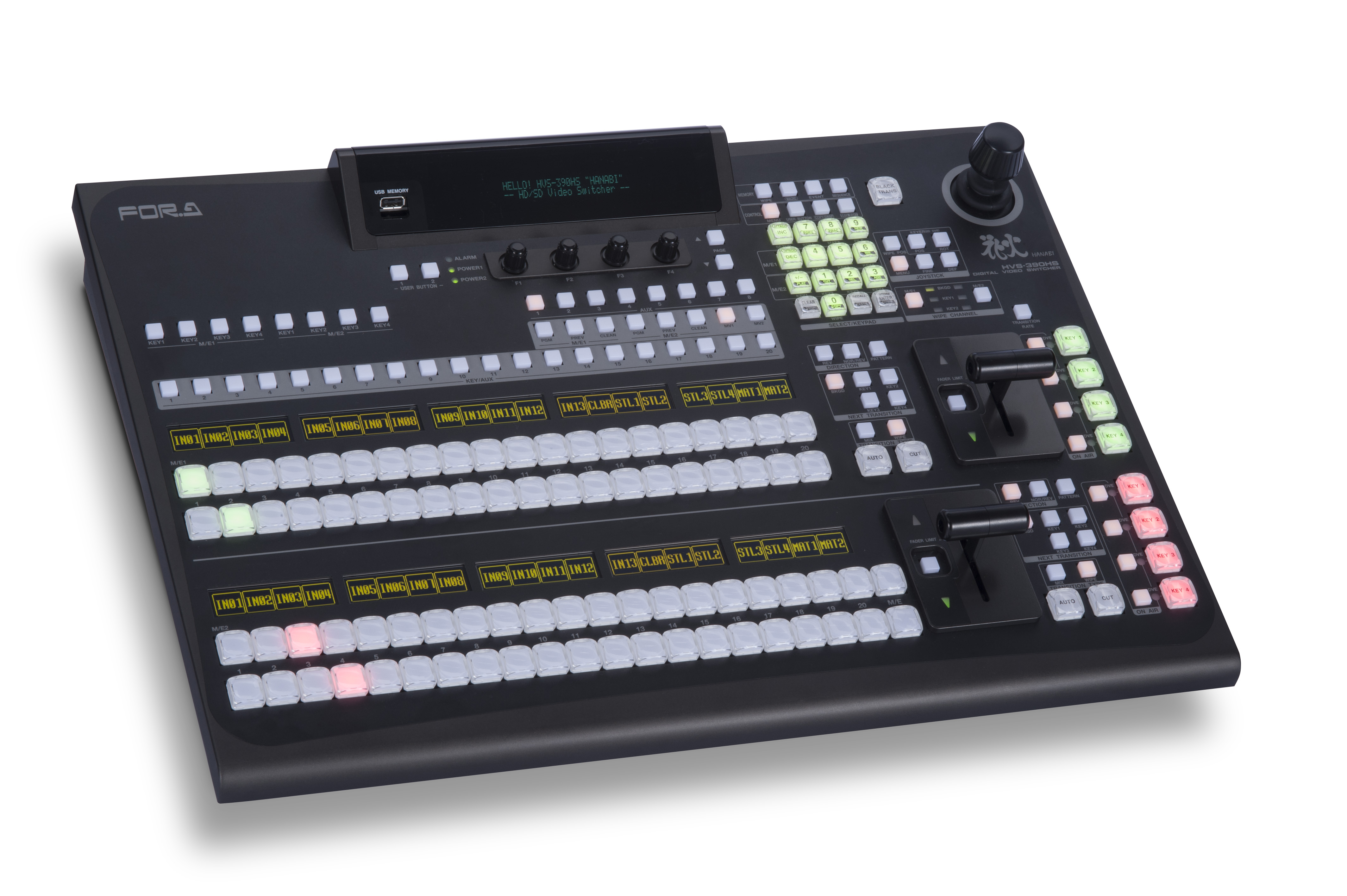

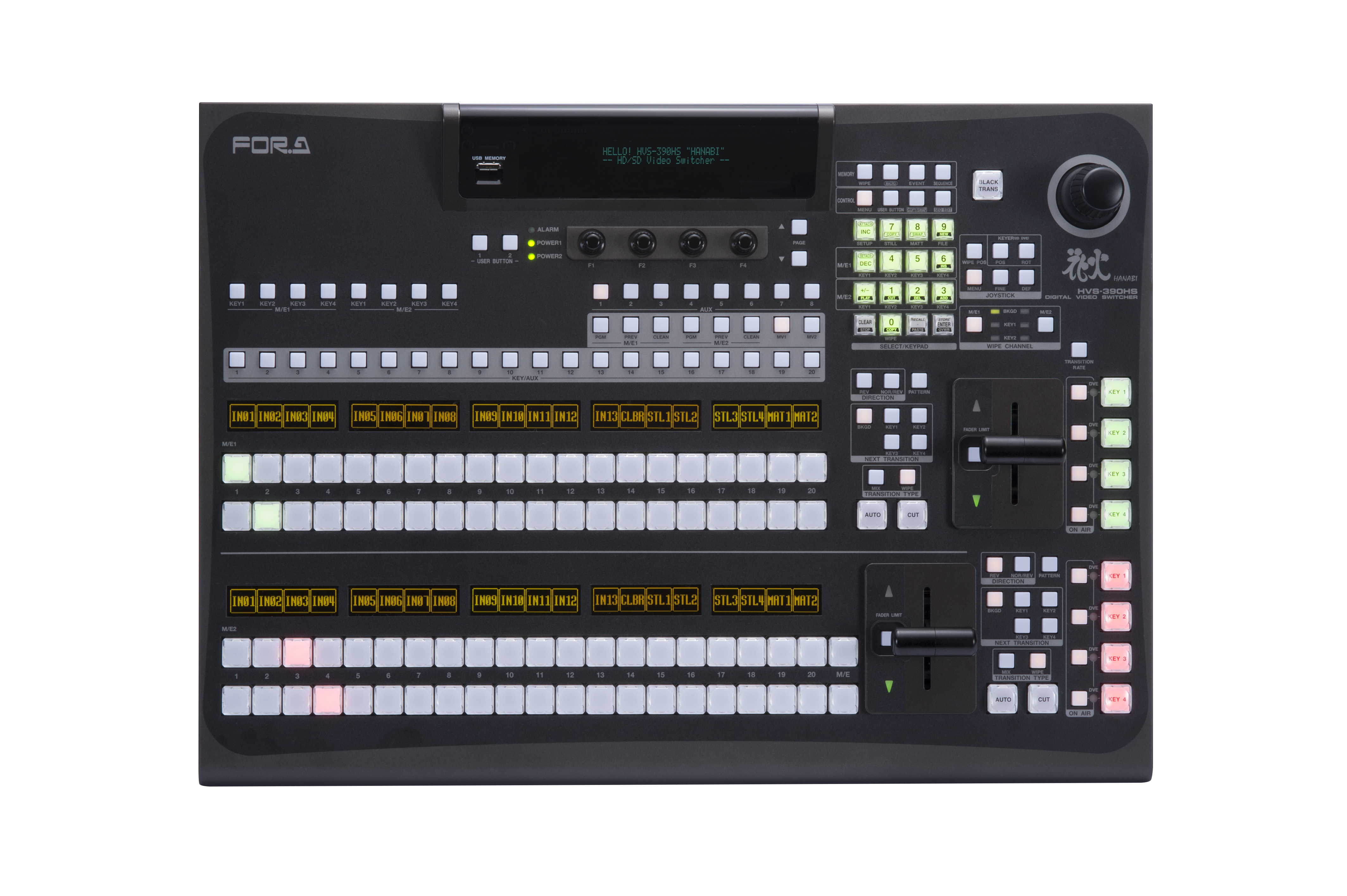

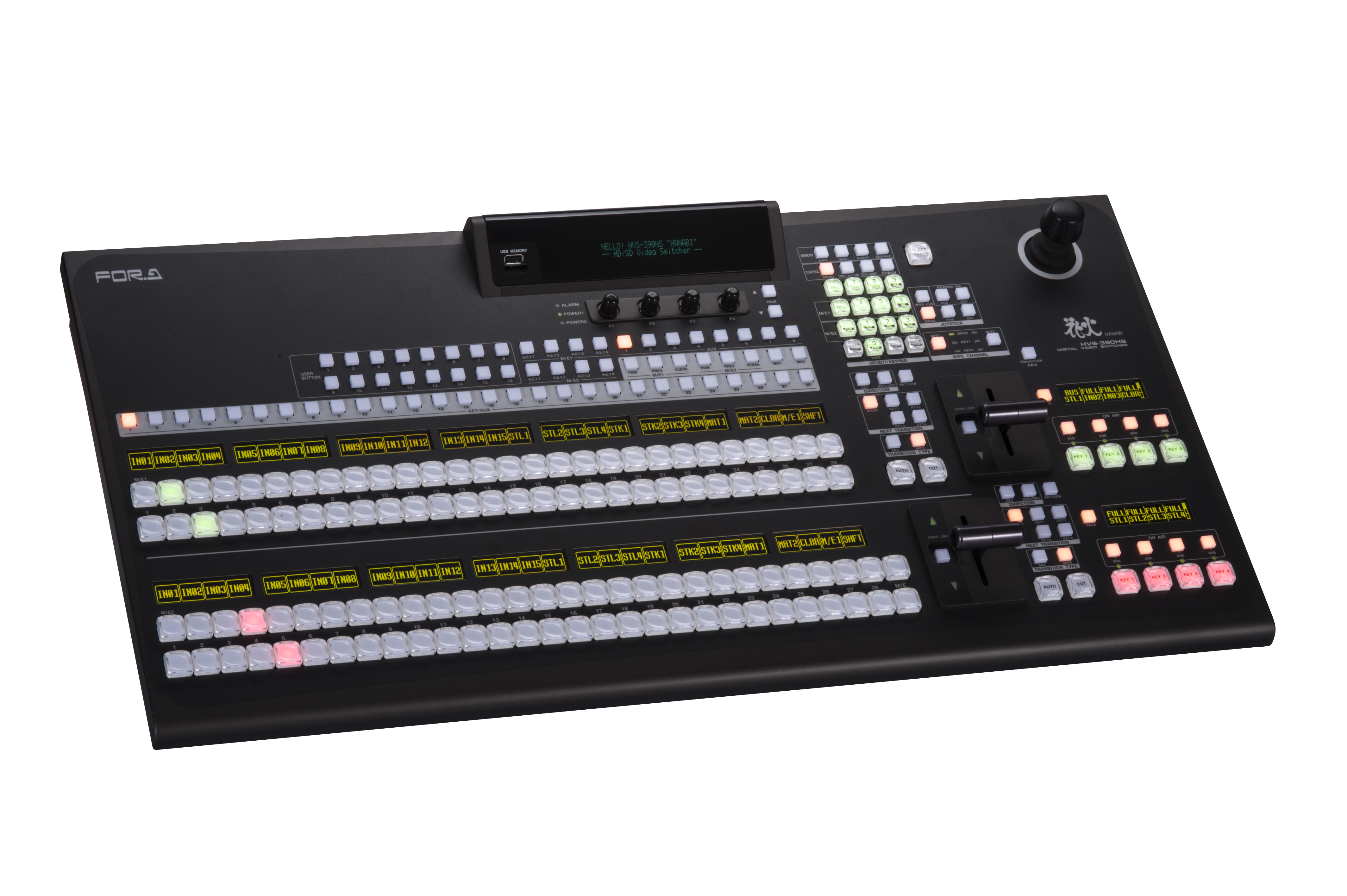

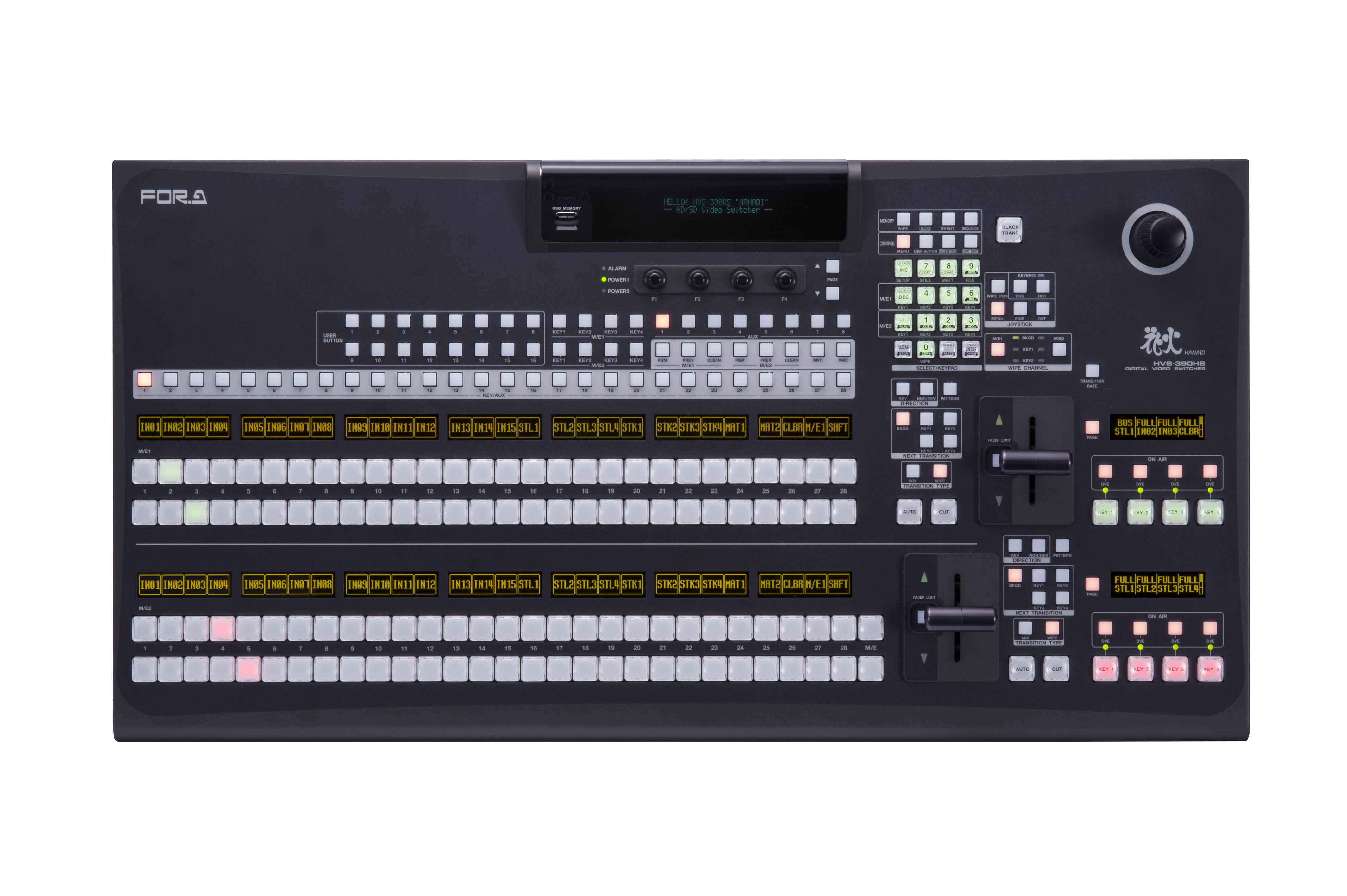

HVS-392OU: |

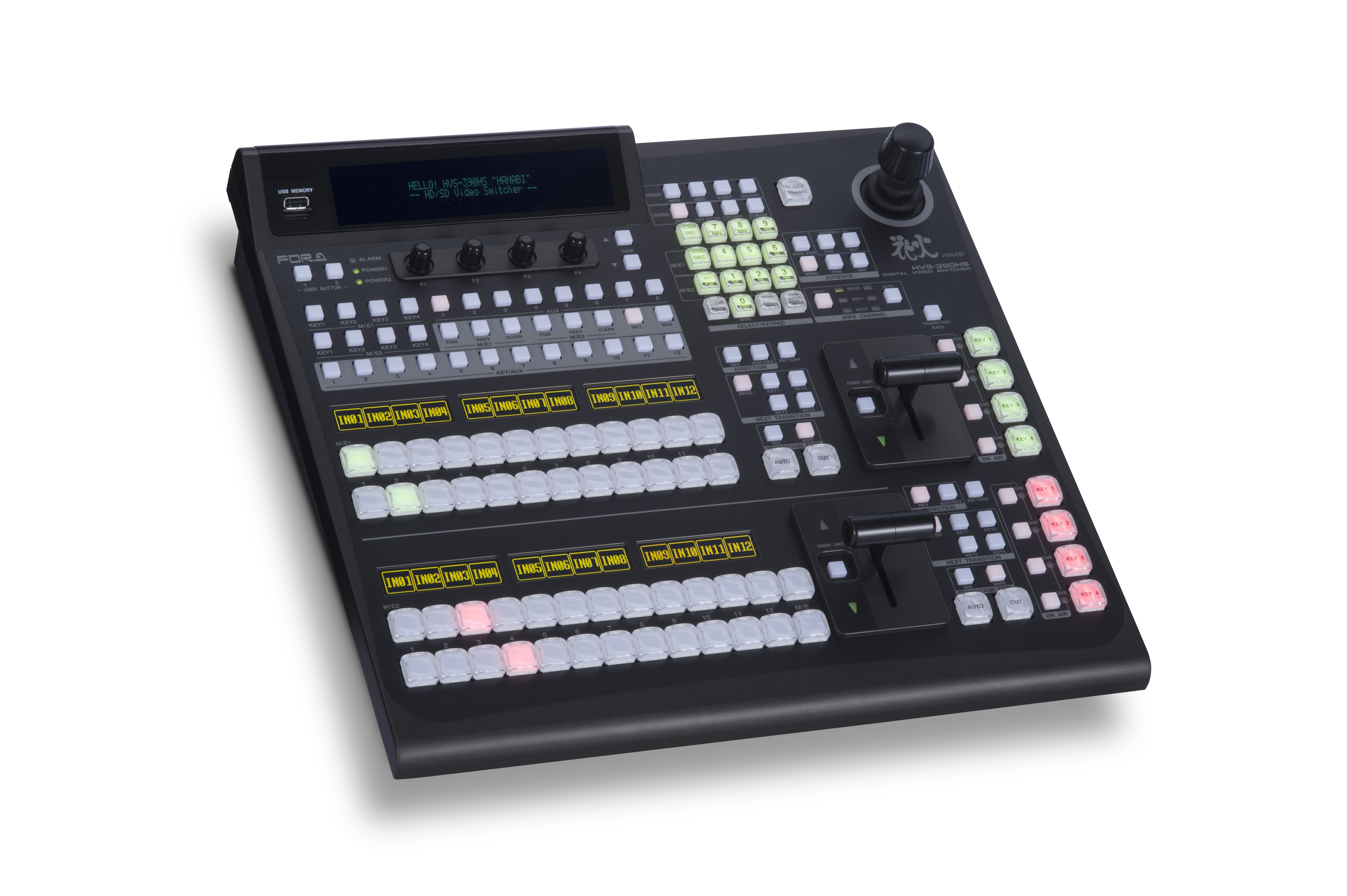

HVS-392ROU: |

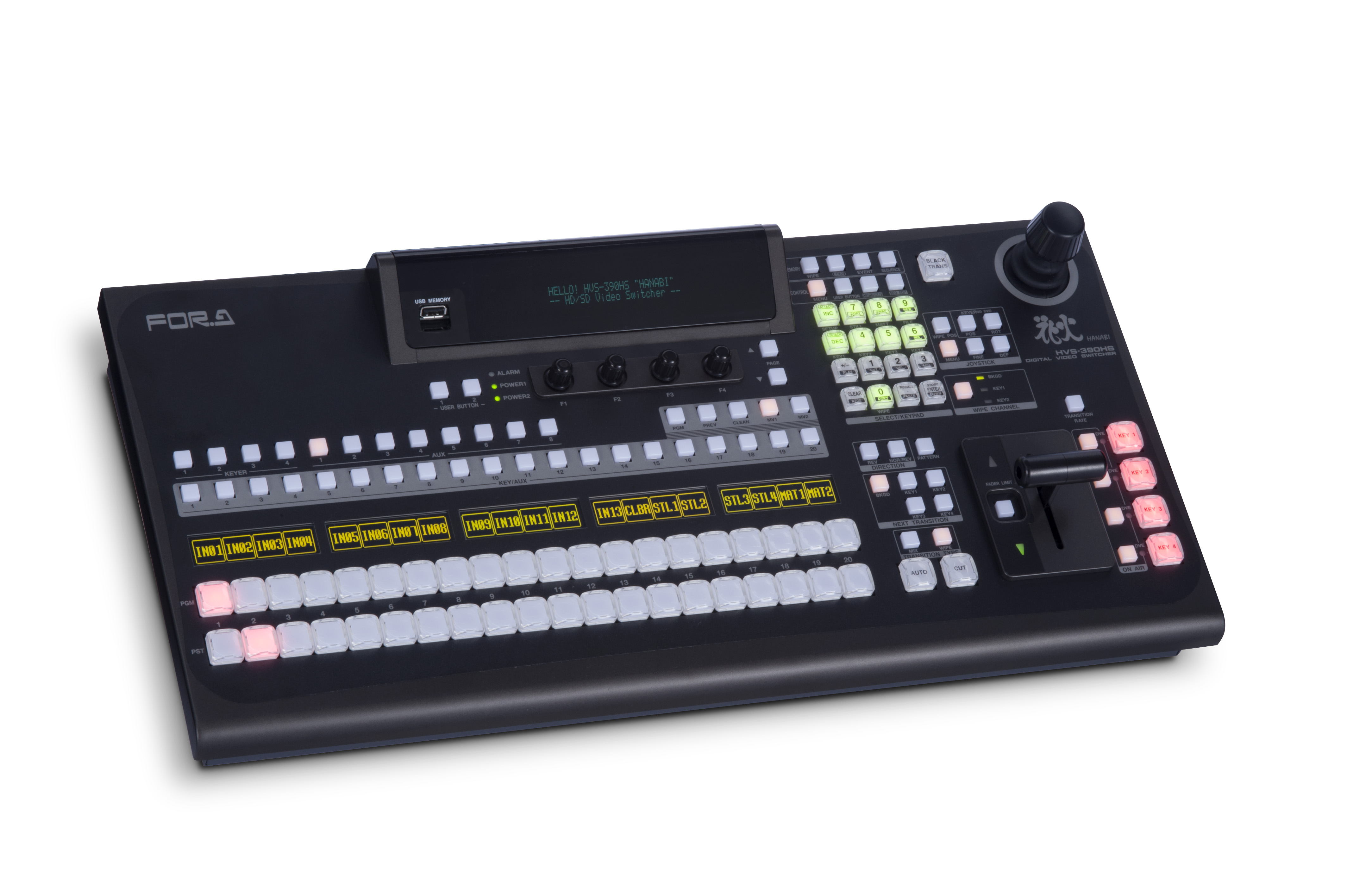

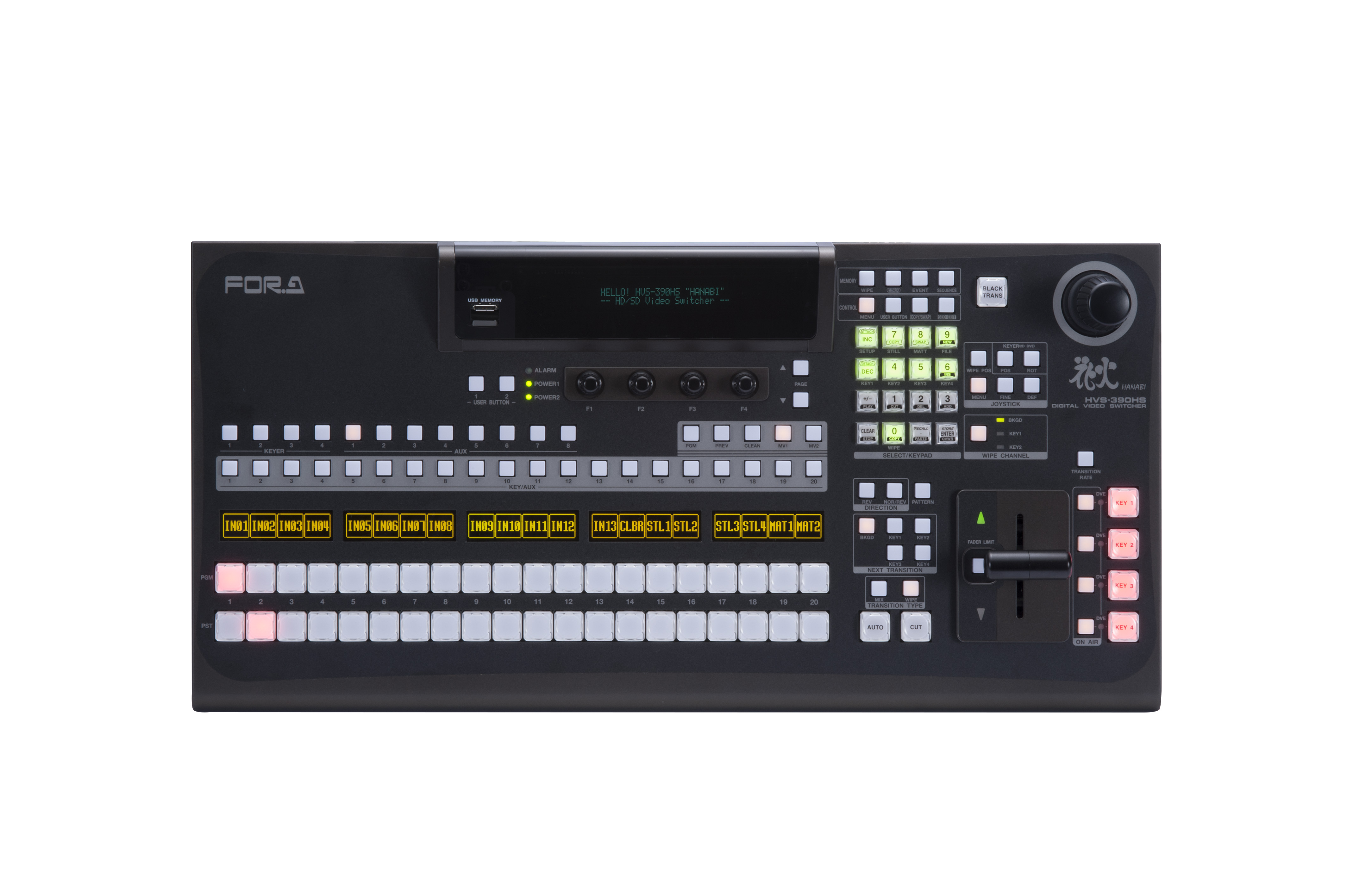

HVS-391OU: |
HVS-30OU: |
HVS-30RU: |
Frame Synchronizer on All Inputs
- Individual frame synchronizers are standard for all inputs to support the switching of asynchronous signals
- Includes Proc Amp control to adjust video and chroma levels
HD, SD Mixed Input/Resize Engine
- Mixing of HD and SD inputs is possible
- Of the standard 16 inputs, 4 inputs* and the optional input board HVS-30HSDI can resize SD signals to HD
- Supports resizing of computer signals when using optional computer input board HVS-30PCIN
*Inputs 13?16 can be used for resizing.
Keyers with DVE
- 4 keyers per M/E come standard (1 M/E: 4, 2 M/E: 8)
- All keyers support bus and luminance keys
- High-level chroma keyer on Key 1 & Key 2 for each M/E
- All keyers have an independent 2.5D DVEs
- Key 3 & Key 4 can be assigned to Aux outputs for multi-screen display
DVE/Transition/Wipe Pattern/Effect
DVE
- All keyers have an independent 2.5D DVE channel
- Two 3D DVEs per M/E are available for background and keyer
Transitions
- M/E bus: CUT, MIX, WIPE
- 100 2D wipe Patterns
- 68 DVE wipe including page turn
Wipe Patterns
Effects
- Mosaic, defocusing, etc.
Dual Multi Viewer
- Equipped with two multi-view channels, each capable of displaying a maximum of 16 split windows
- 4, 10, and 16 window split patterns
- Different display patterns and channels can be set for each of the multiviewers
- All sources, including internal sources, inputs and outputs can be monitored on the multi-viewers
- Each multi-viewer window is equipped with title, tally and audio meter display
Event Memory with Loading Duration
- Equipped with an event memory in the main unit. Up to 100 events can be stored
- Direct recall function: Recalls events with a single click
- Event load with duration: Users can freely set the transition time and effect for loading events
- Because seamless transition to the recorded state is possible, it is suitable for live applications
Still Stores
- 4 still stores are available in standard configuration
- Allows capturing of video input and PGM output as still images
- Still images generated on a PC or other source can be loaded to the main unit over Ethernet
- Supports loading images via USB connection when connected to control panels
- Saves data to the main unit using the backup function
- Supports JPEG, BMP, and TGA file formats
- FS memory on IN-1 to IN-16 can be used as still image memory
Video Memory
- Equipped with output video recording and playback functions
- Simultaneous recording of fill and key perfect for CG Wipes
- Saves consecutive still images transferred from PC as video (clips)
- Four memory channels can be used to record up to 60 frames per each as standard
- Up to 120 frames of recording is possible with an optional HVS-39MEM
*(The number of frames that can be saved does not change, even when simultaneously recording Fill + Key)
Web Control
- Many controls are accessible from an external computer via the unit’s built-in web server
- Control from notebook computers or tablets are also possible, via a wireless LAN router
Flexible Input/Output
- 16 HD/SD-SDI inputs, 8 outputs and an HDMI output come as standard
- Using input/output option boards, the system can be expanded to 24 inputs and 13 outputs
- HD, SD mixed input is supported as standard (same frame rate only)
- Standard output breakdown: PGM x 2, AUX x 6, HDMI (AUX) x 1
- Input/output, such as analog component, analog composite, DVI, and RGB, can also be added (optional)
- AUX outputs allow previews and multi-viewer assignments
- Support Formats; 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL)
Multi-screen Function (Video Wall)
- Supports multi-monitor display by assigning keyers to AUX outputs
- It is also possible to output separately from the main line, making it ideal for large screen display
Sequence Function
- Up to 10 sequences can be stored
- Registers each parameter setting as a key frame
- Sequence functions can be assigned to any user buttons
AUX Transitions
- AUX bus signal switching with an effect and transition time
- Expanded range of AUX utilization perfect for applications that require multiple outputs
Keyer Free Assign
- Keyer can be assigned to M/E and AUX
- Keyer can use composite results of M/E as an input source. (+0.5 M/E extended feature)
External Interfaces
- EDITOR: For connection to editing equipment
- GPI/GPO (Tally): 10 inputs/20 outputs
- RS-422: 6 ports
- ARCNET: for connection to OU and AUX remote panel
- Ethernet: for connection to a PC
Upgradable from 1 M/E to 2 or 2.5 M/E
- Add an HVS-39EXTME expansion card to upgrade the 1 M/E model to a 2 or 2.5 M/E one
- This enables enhanced switcher functions without the need to purchase another main unit
Also enables operation as a 2.5 M/E digital video switcher
- When the HVS-39EXTME is installed, this digital video switcher can be used as a 2.5 M/E digital video switcher.
* AUX7 and AUX8 are not available in 2.5 M/E mode.
* P/P line operation can be enabled either by procuring an additional control panel or using the GUI software.
* Enables Key 3 and Key 4 of M/E1 and M/E2 to be assigned to the P/P line keyers for use.
Other
- Color correction function (2 channels for each M/E)
- Macro function
- Direct patterns: Up to 20
- Safety area display
- Built-in color bar display
- Equipped with many useful functions, including a built-in mat function
Options
HVS-30HSDI/ HVS-30HSDI-A : HD/SD-SDI Input Card
4 channels of HD/SD-SDI input card. 2 types of card available; HVS-30HSDI has a frame synchronizer function and re-size (expansion) function provided for all inputs, and SD images can be processed internally as HD images.
HVS-30HSDI-A has a frame synchronizer function (no resize) provided for all inputs. It is an expansion card with excellent cost-performance.
HVS-30HSDO : HD/SD-SDI Output Card
2 channels of HD/SD-SDI output card. Dedicated down-convert output also provided for 2 output terminals. This realizes simultaneous output of HD and SD.
HVS-30HSAI : Analog Video Input Card
2 channels of analog video input signal. Input terminal 2 is a dedicated connector (conversion connector supplied). The user can select between analog composite or analog component (HD or SD) input for each input terminal.
HVS-30HSAO : Analog Video Output Card
2 channels of analog video output card. Output terminal 2 is a dedicated connector (conversion connector supplied). The user can select between analog composite or analog component (HD or SD) output for each output terminal.
HVS-30PCIN : PC (DVI/VGA) Input Card
For computer-based applications we have an input card with one DVI-D and one VGA connector with resolutions ranging from VGA to WUXGA.
Input Resolutions:
| HD mode | 1080i | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1280 x 768 (WXGA), 1680 x 1050 (WSXGA), 1920 x 1200 (WUXGA) |
|---|---|---|
| 720p | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA) | |
| SD mode | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA) |
HDCP incompatible; DVI-D and VGA input not supported in 1080PsF format.
HVS-30PCO: PC (DVI/VGA) Output Card
For computer-based applications we have an output card with one DVI-D and one VGA connector with resolutions ranging from SVGA to WUXGA.
Output Resolutions:
| HD mode | 1080i | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA), 1920 x 1080 (HDTV), 1920 x 1200 (WUXGA) |
|---|---|---|
| 720p | 1280 x 1024 (SXGA), 1280 x 768 (WXGA) | |
| SD mode | 800 x 600 (SVGA) |
HDCP incompatible; DVI-D and VGA output not supported in 1080PsF format.
HVS-AUX8/16/32: AUX Remote Panel
- HVS-AUX8/16/32: AUX remote panel (8/16/32 buttons)
- Extensions kit: HVS-AUX8RK (for HVS-AUX8), HVS-AUXRK (for HVS-AUX16/32)
An 8-button or 16/32-button type AUX remote control panel is provided. The 8-button unit is half-rack size and 16/32-button unit is 1U rack size; ARCNET allows cascading connection of as many as 5 units. With the panel extension kit, each panel can be used with a longer button interface.
HVS-TALOC20/32, HVS-TALR20/32: Tally Interface Unit
- HVS-TALOC20/32: Open Collector system with 20/32 terminals
- HVS-TALR20/32: Relay system with 20/32 terminals
Open collector-type HVS-TALOC20/32 or relay-type HVS-TALR20/32 can be connected. They are both half-rack size, and as many as 4 units can be connected to 1 HVS-390HS.
HVS-30TALR: Tally Interface Card
Tally relay interface card (18 terminals). Up to 2 cards can be installed (the slot is shared with I/O cards).
HVS-39ED: Editor Interface Software
This is a software for supporting editing machine protocol. It supports BVS/DVS and GVG protocol.
HVS-39VR: Virtual Studio Link Software
Linkage to FOR-A virtual studio "digiStorm" or "VRCAM2" software
HVS-39EXTME: M/E Expansion Card
Upgradable the 1 M/E model to 2 or 2.5 M/E one
HVS-39MEM: Video Memory Expansion Card
Expandable recording capacity to 120 frames of video
HVS-39PSM/39PSO: Redundant Power Supply Unit
- HVS-39PSM: Redundant power supply unit for main unit
- HVS-39PSO: Redundant power supply unit for HVS-391OU/392OU/392ROU
Redundant power supply unit for HVS-390HS main unit or Control panels
Specifications
| Number of M/Es | 1 M/E or 2 M/E |
|---|---|
| Control Panel | 5 types HVS-391OU: 1 M/E 20-button model HVS-392OU: 2 M/E 20-button model HVS-392ROU: 2 M/E 12-button rack size model HVS-30OU: 1 M/E 12-button model (for remote panel) HVS-30RU: Remote panel (for sub-panel) |
| Video Formats | 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL) |
| Video Input | HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps 75Ω BNC x 16 * Frame synchronizer on each input |
| Video Input (optional) | HVS-30HSDI/HSDI-A HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps 75Ω BNC x 4 |
| HVS-30HSAI HD analog component, SD analog component, Analog composite |
|
| HVS-30PCIN DVI-D: XGA to WUXGA (1080i), XGA to WXGA (720p), VGA to XGA (SD) (HDCP incompatible) RGB: XGA to WUXGA (1080i) , XGA to WXGA (720p) , VGA to XGA (SD) |
|
| Number of Inputs | Standard: 16 (SDI), Max.: 24 (with HSDI x 2 or HSDI-A x 2) |
| Video Output | HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps 75Ω BNC x 8 (PGM x 2, AUX x 6), HDMI (AUX) x 1 (HDCP, AUDIO incompatible) |
| Video Output (optional) | |
| HVS-30HSDO HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps 75Ω BNC x 3 |
|
| HVS-30HSAO HD analog component, SD analog component, Analog composite |
|
|
HVS-30PCO DVI-D: SXGA to WUXGA/HDTV (1080i), SXGA/WXGA (720p), SVGA (SD) (HDCP incompatible) RGB: SXGA to WUXGA (1080i), SXGA/WXGA (720p), SVGA (SD), YPbPr: HDTV(1080i) |
|
| Number of Outputs | Standard: 9 (SDI x 8, HDMI x 1), Max.: 13 (with 2 output cards) |
| AUX Outputs | Standard: 6, Max.: 8 * Crossfade switching available on each AUX output |
| Signal Processing | 4:2:2 Digital component |
| Quantization | HD/SD-SDI: 10-bit |
| Genlock Input | BB: NTSC 0.429 Vp-p/PAL 0.45 Vp-p or Tri-level Sync: 0.6 Vp-p, 75Ω BNC x 1, loop-through (Terminate with 75Ω terminator, if unused.) |
| System Phase Adjust | Horizontal: -1/2H to +1/2H |
| Genlock Output | BB: NTSC 0.429 Vp-p/PAL 0.45 Vp-p or Tri-level Sync: 0.6 Vp-p, 75Ω BNC x 1 |
| I/O Delay | HD: 1 H, SD: 1.7 H (minimum delay) 1 to 2 frames + minimum delay (when FS or up-resize engine used) 2 to 3 frames + minimum delay (when FS or up-resize engine plus DVE used) 3 to 4 frames + minimum delay (when FS or up-resize engine plus output resize engine and DVE used) |
| Interfaces | |
| EDITOR: 9-pin D-sub (female) x 1 (inch screw) | |
| RS-422: 9-pin D-sub (female) x 6 (inch screw) | |
| GPI IN: 15-pin D-sub (female) x 1 (inch screw) 10 inputs | |
| TALLY OUT: 25-pin D-sub (female) x 1 (inch screw) 20 outputs | |
| ARCNET: 75Ω BNC x 1, loop-through (Terminate with 75Ω terminator, if unused.) | |
| Ethernet: 100BASE-TX/1000BASE-T RJ-45 x 1 | |
| Temperature / Humidity | 0ºC to 40ºC / 30% to 90% (no condensation) |
| Power | 100 V AC to 240 V AC ±10%, 50/60 Hz |
| Consumption | HVS-390HS: Max. 510 W |
| HVS-391OU: Max. 32 W | |
| HVS-392OU: Max. 43 W | |
| HVS-392ROU: Max. 28 W | |
| Dimensions/Weight | |
| HVS-390HS: 430 (W) x 450 (D) x 132 (H) mm / Approx. 15 kg (standard), Approx. 19.2 kg (full option) | |
| HVS-391OU: 576 (W) x 279 (D) x 131 (H) mm / Approx. 5.5 kg | |
| HVS-392OU: 576 (W) x 409 (D) x 132 (H) mm / Approx. 7.7 kg | |
| HVS-392ROU: 430 (W) x 409 (D) x 132 (H) mm / Approx. 6 kg | |
| Accessories | Main unit: Operation manual, AC cord, Rack mount brackets (for main unit) |
| HVS-391OU/392OU/392ROU: Operation manual, AC cord, BNC cable (10 m) | |
| Consumables (if used 24 hours a day at room temperature) | Cooling fan: Replace every 4 years Power unit: Replace every 5 years Battery: Replace every 5 years |
Options
| Model Name | Features |
|---|---|
| HVS-39EXTME | M/E expansion card (for 1 M/E model) |
| HVS-30HSDI | HD/SD-SDI input card (w/ up-resize engine) |
| HVS-30HSAI | Analog input card |
| HVS-30HSAI | Analog input card |
| HVS-30HSDO | HD/SD-SDI output card |
| HVS-30PCO | PC output card |
| HVS-AUX8RK/AUXRK | AUX remote extension kit |
| HVS-TALOC20/32 | Tally open collector unit (20/32 terminal) |
| HVS-39ED | Editor interface software |
| HVS-39PSM | Redundant power supply unit for main unit |
| HVS-39MEM | Video memory expansion card |
| HVS-30HSDI-A | HD/SD-SDI input card (w/o up-resize engine) |
| HVS-30PCIN | PC input card |
| HVS-30HSAO | Analog output card |
| HVS-AUX8/16/32 | AUX remote unit |
| HVS-TALR20/32 | Tally relay unit (20/32 terminal) |
| HVS-30TALR | Tally relay output card |
| HVS-39VR | Virtual link software |
| HVS-39PSO | Redundant power supply unit for HVS-391OU/392OU/392ROU |
FOR-A’s HVS-4000 is a 2 M/E, 2.5 M/E, or 3 M/E multi format video switcher.
MFR-3232 / 3216 / 1616R / 1616
Multi-format routing switchers that support 3G-SDI, HD-SDI, SD-SDI and ASI signals.
The MV-3200 series is a multi viewer offering a multi-monitor display environment suited to your system by selecting and installing the required input and output boards on a 2U frame.
Announcing a 1.5M/E model in the FOR-A HVS-300 Series of portable video switchers noted for plentiful functions and excellent cost-performance.
The HVS-300HS and the HVS-300RPS is the newest addition to FOR-A’s popular Hanabi series and represents one of the most powerful, compact, broadcast level switchers on the market.
SmartDirect is a revolutionary system that dramatically simplifies video production workflows.
- Professional Video
- Filebased Products
- Video Switchers
- Recorders/Video Servers
- Graphics
- Virtual Studio/Augmented Reality
- Routing Switchers
- Frame Synchronizers/TBCs
- Frame Rate Converters
- Color Correctors/Noise Reducer
- Converters
- Audio Processing
- Multi Viewers
- Signal Generators/Timers
- Video/Audio Distribution
- High-Speed/High-Sensitivity Camera
- UFM Modular Series
- UFH Modular Series
- FOR-A YEM Eletex Products
- Surveillance/Security
- Medical
- Industrial
- Application
- Product Index
- Discontinued Products
